COBHAM SAILOR 100 GX Installation Manual

Heading input and position system
6-6 Chapter 6: Configuration 98-141779-G
If the external GPS input is lost or GPS invalid the ACU will fall back to built-in GNSS but
generate following warning message:
8084-0 Terminal WARNING External GPS data (00000041)
About the acquisition process and search pattern
With heading input or fixed heading
1. The antenna starts the acquisition and searches for 10 seconds at the expected
position. If RX lock is detected the antenna goes to Tracking.
2. If no RX lock is detected, a box search pattern is started and the positions where RF
power can be received are stored.
3. The antenna checks each stored position for up to 10 seconds. If RX lock is detected for
more than 20% of the time, the antenna goes to Tracking.
Without heading input and not fixed heading (Gyro-free)
1. A box search pattern is started and the positions with reception of RF power are
checked for up to 10 seconds. If RX lock is detected for more than 20% of the time, the
antenna goes to Tracking.

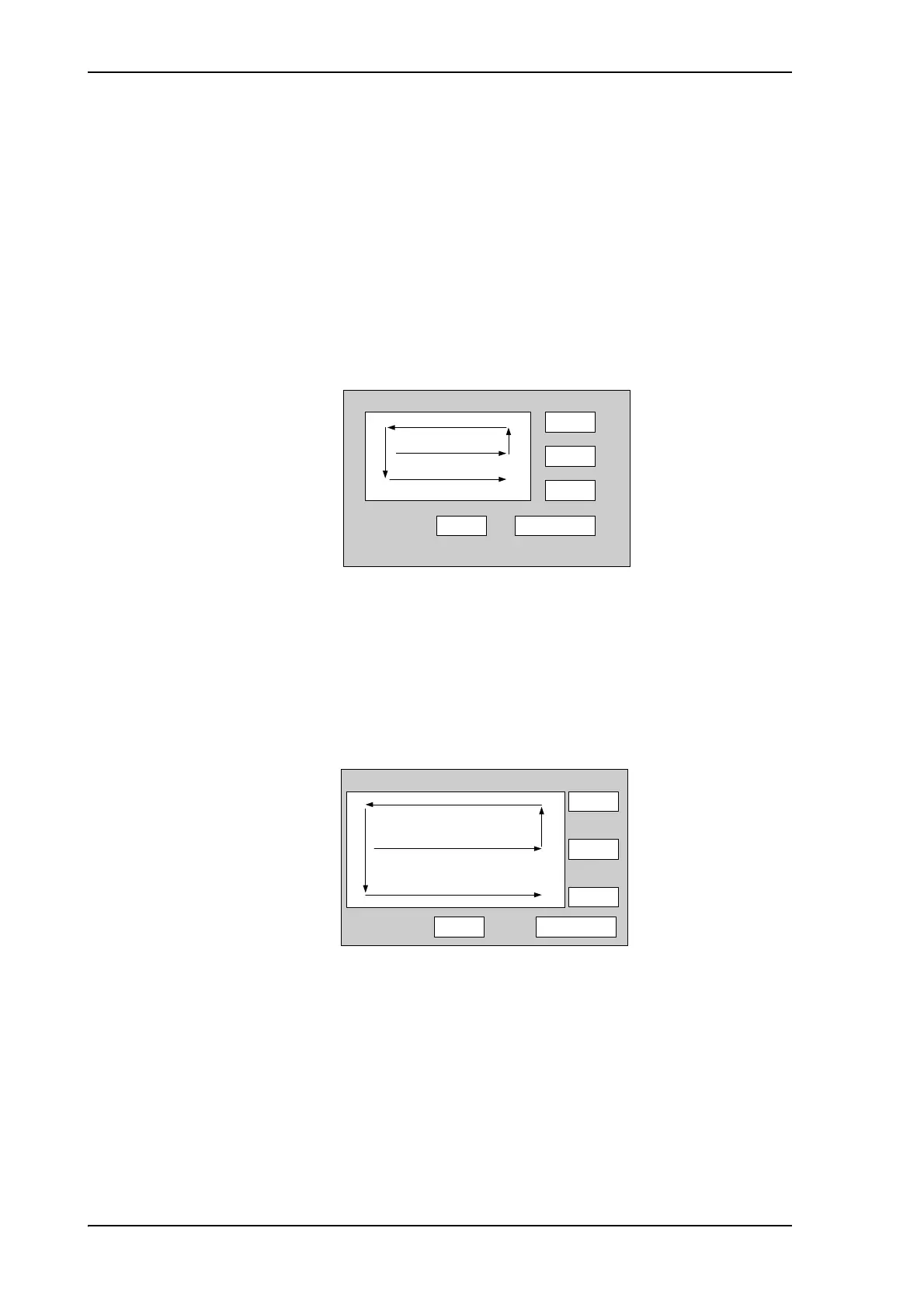

Figure 6-5: Acquisition, search pattern
Figure 6-6: Acquisition, search pattern in gyro-free mode
+0.7°
0.0°
-0.7°
4.0° 3-4 seconds
+0.7°
0.0°
-0.7°
400° Long time
