98-141779-G Chapter 6: Configuration 6-15
6666
6. Click Start. One Touch Commissioning takes place. When commissioning is completed
the antenna will search for the I5 satellite with the highest elevation.
7. The antenna will find the satellite and the modem will perform the necessary steps to
enter the network (software upgrades, if available).
8. The web interface of the iDirect core module will indicate the modem in the network
and the modem status is shown in the display in the menu MODEM of the SAILOR 100
GX web interface.
9. When commissioning is completed, test all subscribed services.
10. Exit the iDirect web interface.
Modem access configuration
If the modem is connected via Ethernet and supports the available access types, you can
access the modem’s web interface via the ACU using port forwarding. For a connected
GMU the section Modem access configuration is pre filled.
To access the modem via the ACU, do as follows:
1. In the ACU web interface, select SERVICE.
2. Select Modem.
3. Select one of the following methods to access the modem.
• HTTP tunnel to modem (port 8080)
• HTTPS tunnel to modem (port 8443), this is the HTTPS tunnel to the GMU iDirect
web interface.
• Telnet tunnel to modem (port 8023)
• SSH tunnel to modem (port 8022)
• Optional tunnel target IP address (grayed out, cannot be changed)

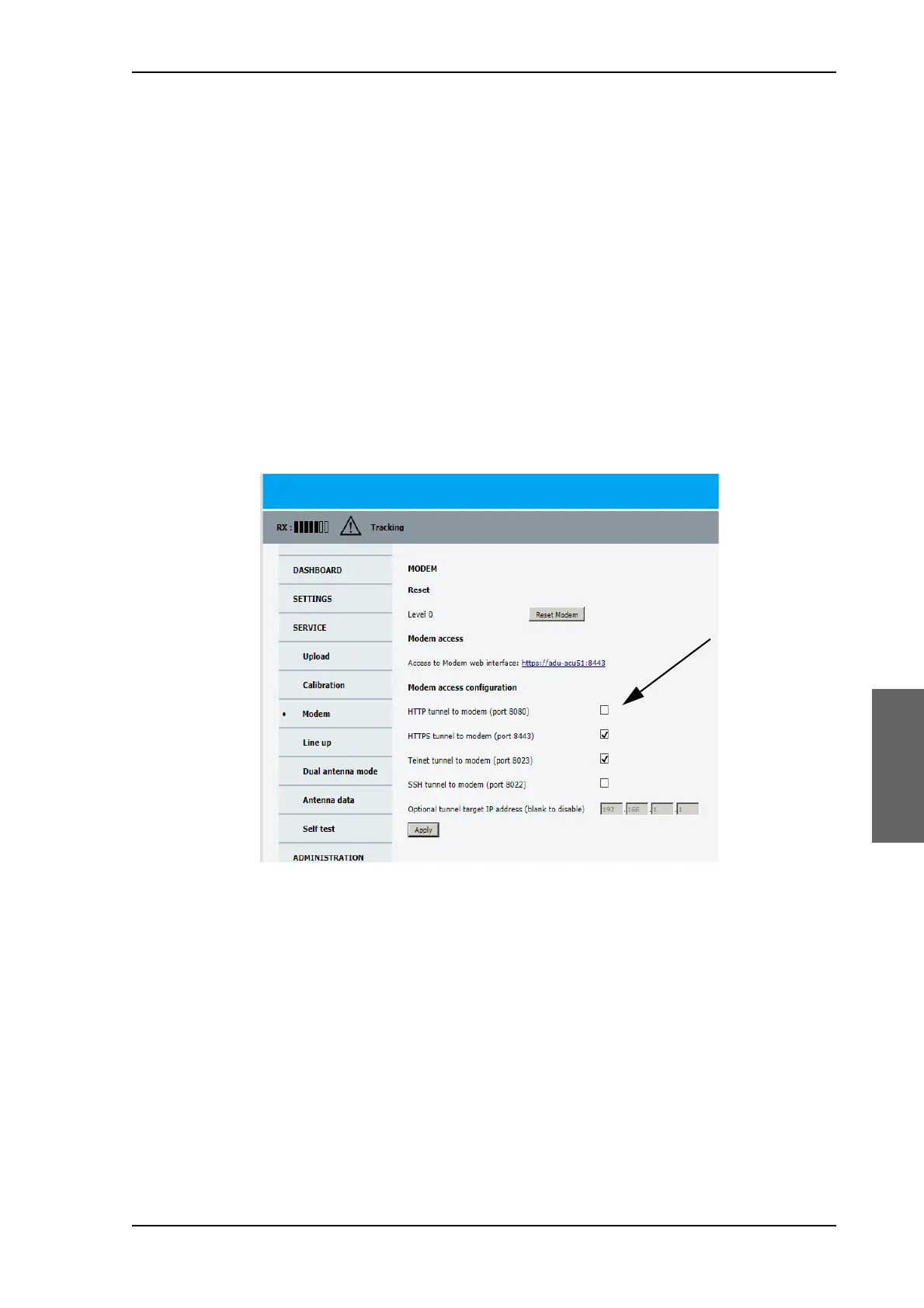

Figure 6-12: Web interface: SERVICE > Modem access configuration
