e-mark marking device Chapter 3 Description
CODI Standard 1.0 Page 16 of 61
Operating and Maintenance Manual
3 DESCRIPTION
The following chapter presents an overview of parts, assembly and function including technical
specifications and product components.
3.1 Scope of supply
The packaging of the e-mark contains the marking device with rechargeable battery (1), docking station
(2), charger and cable (3), ink cartridge (4), USB cable (5) and the Quick Setup Guide (6).
The marking device comprises the housing with top section that can be opened (access to compartment
for battery and ink cartridge), an on/off switch on the underside, a micro USB port, an LED light guide,
sliding wheels on the underside for stable movement, 3 magnets for secure docking, contacts for charging
on the docking station, a light sensor for position guiding, a WIFI module.
The docking station comprises a charging socket for the power adapter, contacts for charging the e-mark,
rubber lips and flap to prevent the ink cartridge from drying out, an opening to access the on/off switch on
the e-mark when docked, non-slip pads and an extendible wiper to wipe the underside of the ink cartridge.
The rechargeable battery is supplied with a plastic cover on the contacts. This prevents short-circuiting the
contacts during transport. This cover must be removed before use.
The ink cartridge is packaged separately and must be inserted before use.

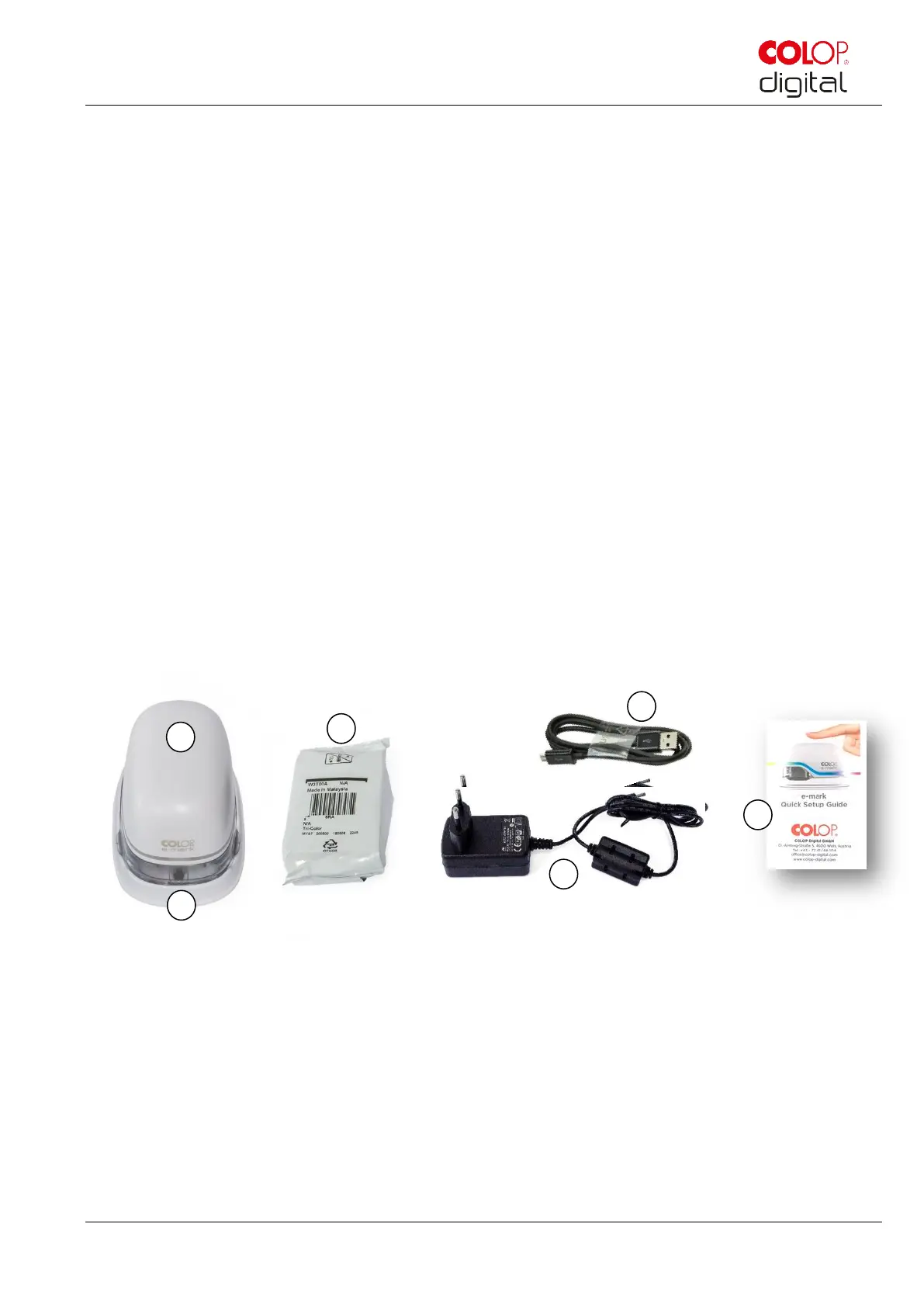

Fig. 2: Package content
2
3
5
4
6
1
