e-mark marking device Chapter 3 Description
CODI Standard 1.0 Page 18 of 61
Operating and Maintenance Manual
3.3 Layout
Marking device:
Underside

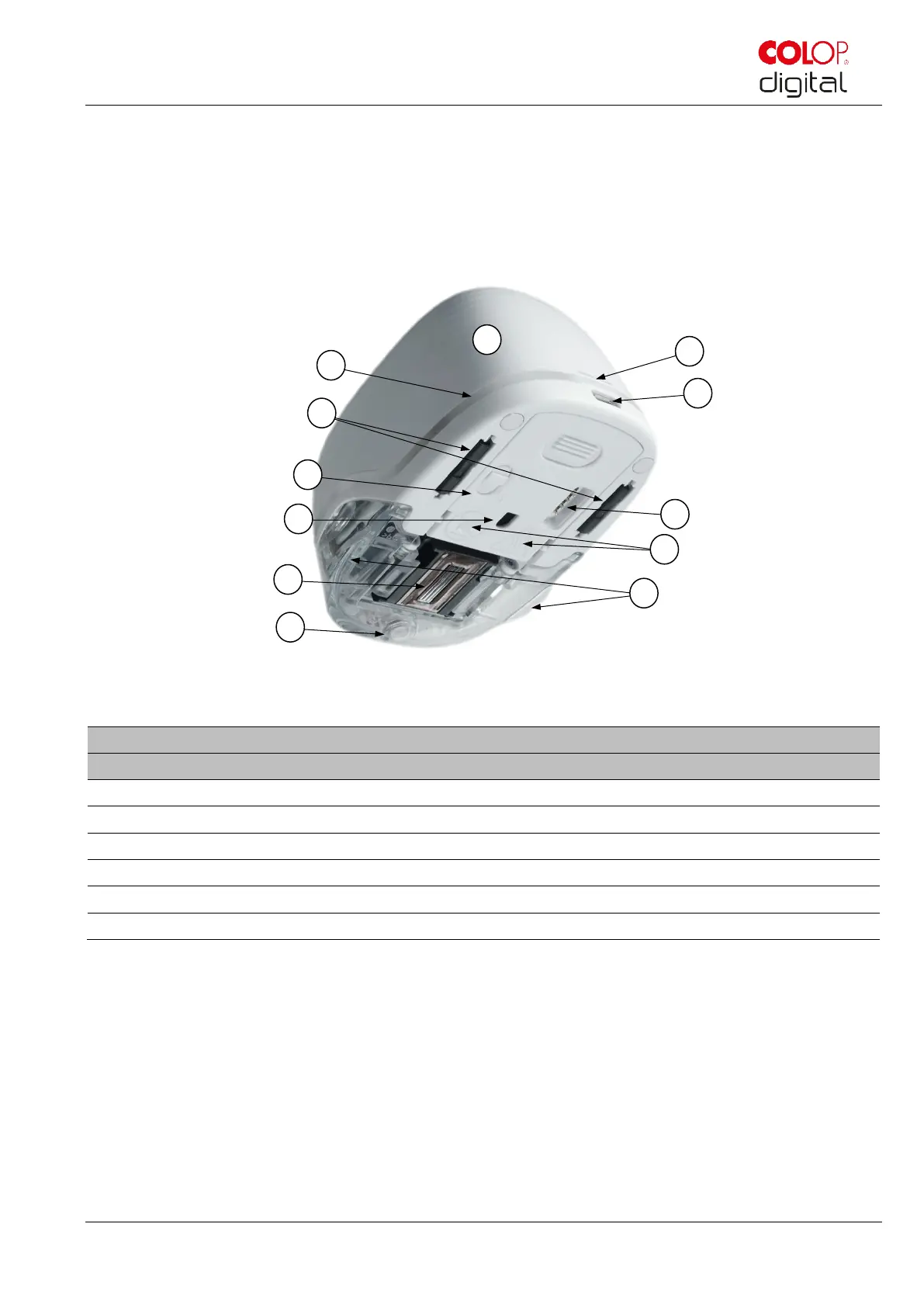

Fig. 4: Marking device assembly
Main components of the e-mark
No.
Description
No.
Description
(1)
Cover
(7)
Magnet
(2)
Light guide
(8)
Cover opening
(3)
Sliding wheels
(9)
USB port
(4)
On/off switch
(10)
Contacts (docking station connection)
(5)
Position sensor
(11)
Safety indications
(6)
Print head
(12)
Print position display lug
5
1
2
3
4
8
9
10
7
6
11
12
