e-mark marking device Chapter 5 Operation
CODI Standard 1.0 Page 34 of 61
Operating and Maintenance Manual
5.3 Light Guide and symbols

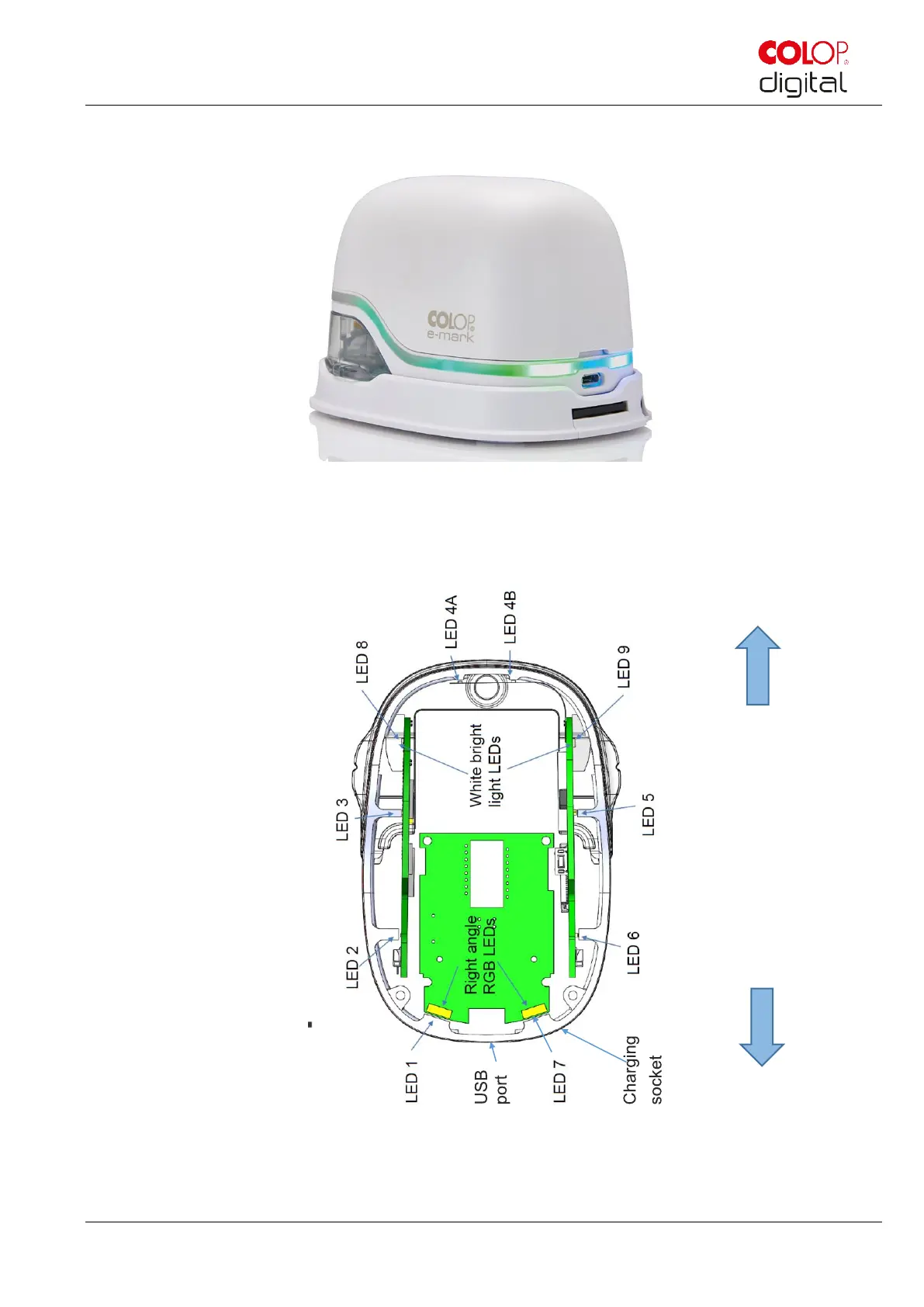

Fig. 24: Light Guide
Light Guide: Direction of the RGB LEDs and white bright light LEDs
Fig. 25: Light Guide directions
The color LEDs 1 to 7 (right angle RGB LEDs) on the Light Guide indicate the e-mark operating modes
depending on the color, light position and light pattern (see table on the next page).
