e-mark marking device Chapter 6 Maintenance
CODI Standard 1.0 Page 51 of 61
Operating and Maintenance Manual

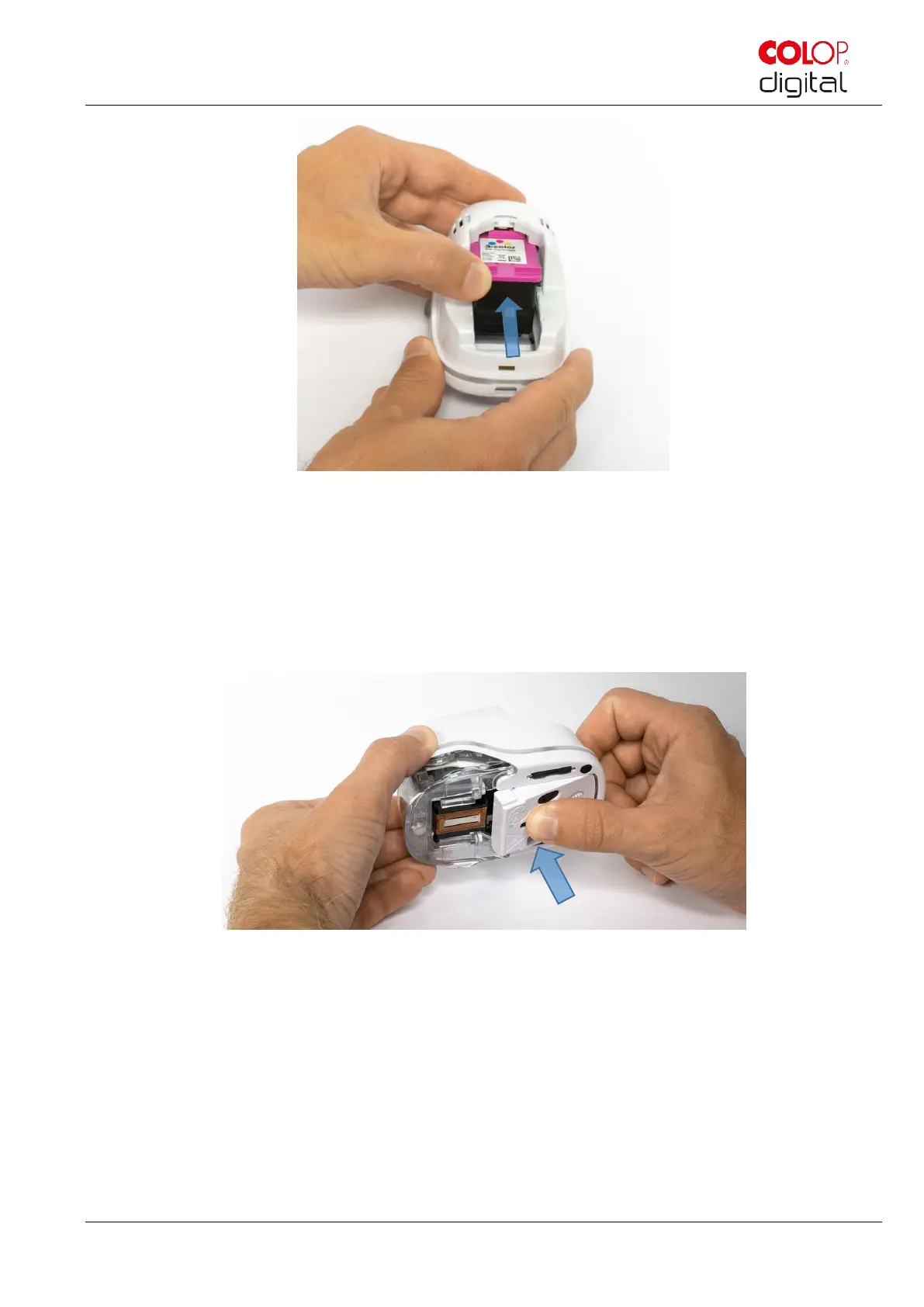

Fig. 47: Insert ink cartridge
 Close lower flap cover
- Shut with a click.
- The cover moves against the spring into the closed position in the opposite direction of
the arrow.
Fig. 48: Close lower flap cover
 Insert battery
- Push towards the ink cartridge.
- Press the battery forwards until the lever on the top clicks in.
