ComAp IM-NT - Terminal Diagram, Dimensions

InteliMains
NT
, SW version 3.0
InteliMains-NT-BTB-3.0-Reference Guide.pdf, ©ComAp – June 2013
17

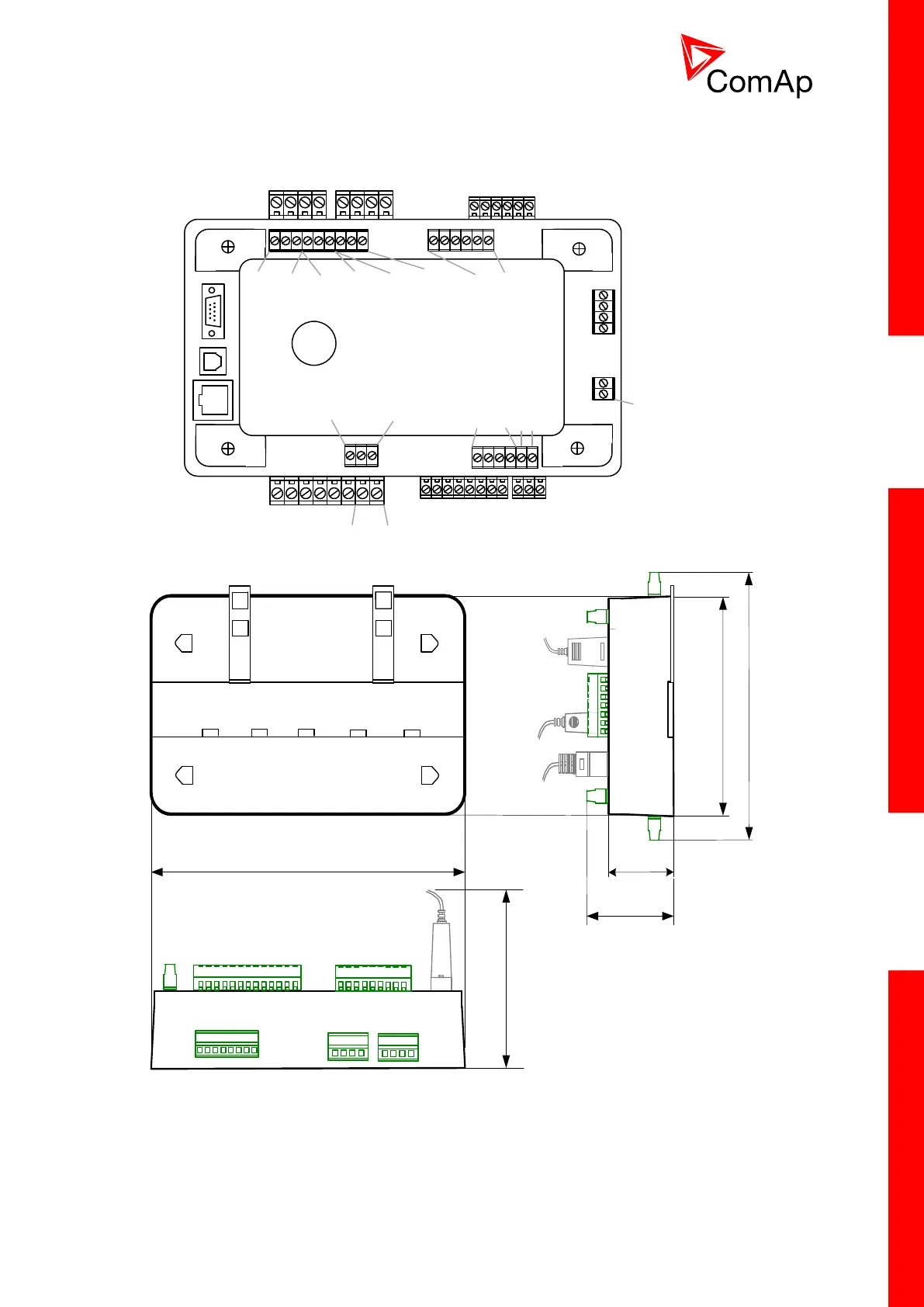

3.2.2 Terminal diagram, Dimensions
Mains Bus
Voltage measurement
Binary inputs
1-6
7-12
RS485
Display only
CAN1
Extension
modules
CAN2
Intercontroller
and
monitoring
RS232
USB
(NTC only)
Ethernet
(NTC only)
RS485
Universal
use
(NTC only)
Current measurement
Mains Aux
Binary outputs
1-8
9-12 + -
Binary outputs
Binary inputs
Power
Analog inputs
1-3
AI COM
Analog output
AOUT COM
AOUT -
RS232
56.5
223
110
RS 232
USBRJ 45
68.5
142
166
IM-NTC-BB only
IM-NTC-BB only
