3.10 Analog Input and Output wiring
This portion of Instalation instructions is dedicated to the
InteliMains-NT-BaseBox and InteliMains-NTC-BaseBox
controllers without built-in display. Analog inputs and output are not
available in InteliMains-NT-GC.
HINT
For more information on technical data regarding supply, inputs, outputs etc. please refer to
For jumper setting of Analog inputs please refer to the section 3.2.4 Jumper settings.

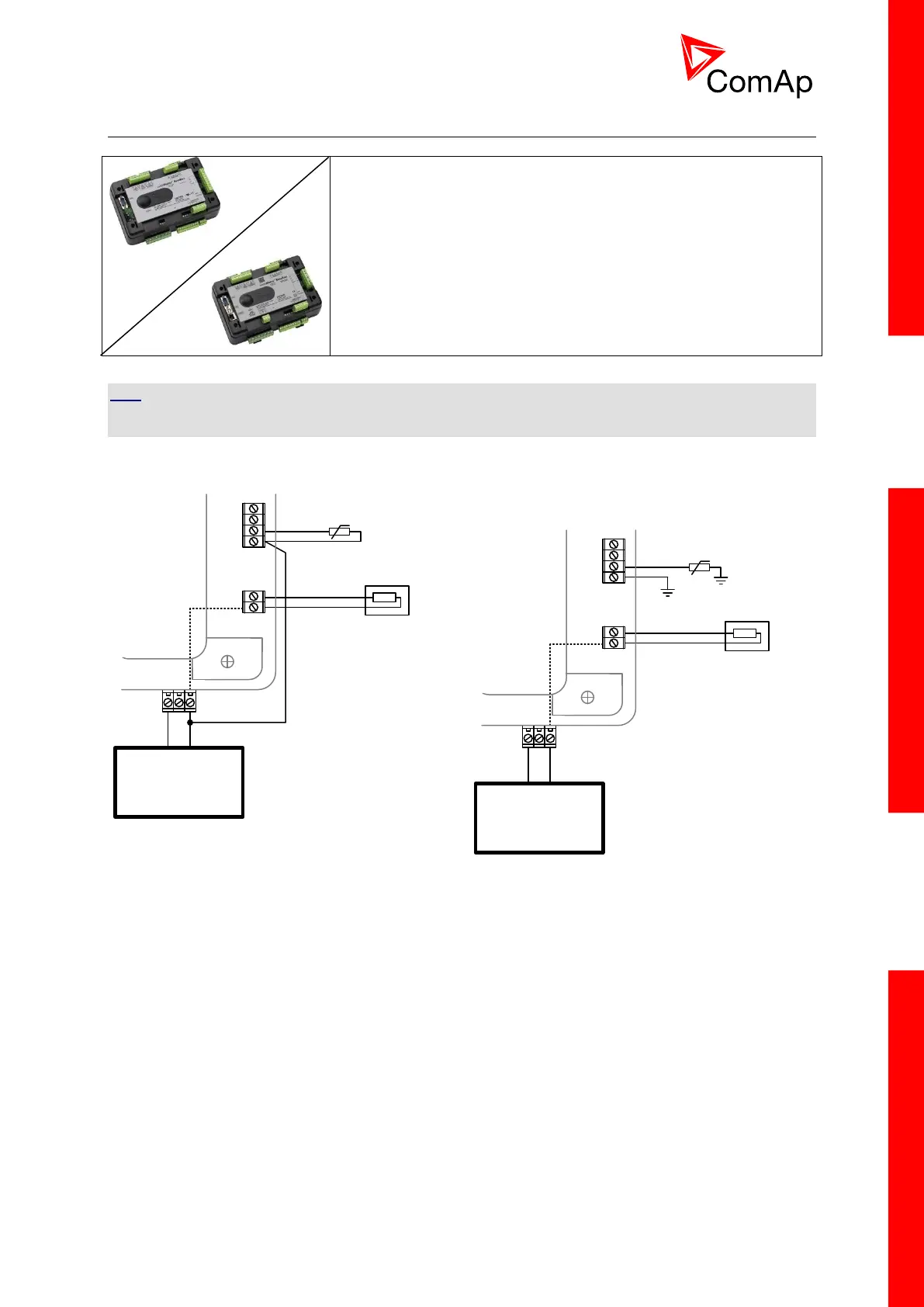

Resistive sensor on Analog input 3 and Analog
output wiring
Battery 24V
DC
+ -
AI3
AI COM
Internal
AOUT
COM
AOUT +
Resistive sensor with grounding on Analog input
3 and Analog output wiring. Note, that battery
should be also grounded to common ground
in all cases!
Battery 24V
DC
+ -
AI3
AI COM
Internal
AOUT
COM
AOUT +
