InteliMains 210 Global Guide
113
mode. Than adjust Timer 1 First Occur. Date (page 251), Timer 1 First Occur. Time (page 251) and Timer 1
Duration (page 251).
Note: Use left and right buttons to move between timer setpoints.
Daily mode
Set-up via InteliConfig
To set-up timer via InteliConfig go to the setpoint ribbon, setpoint group scheduler and setpoint Timer 1 Setup.
Note: First of all function of timer has to be adjusted via setpoint Timer 1 Function (page 250).

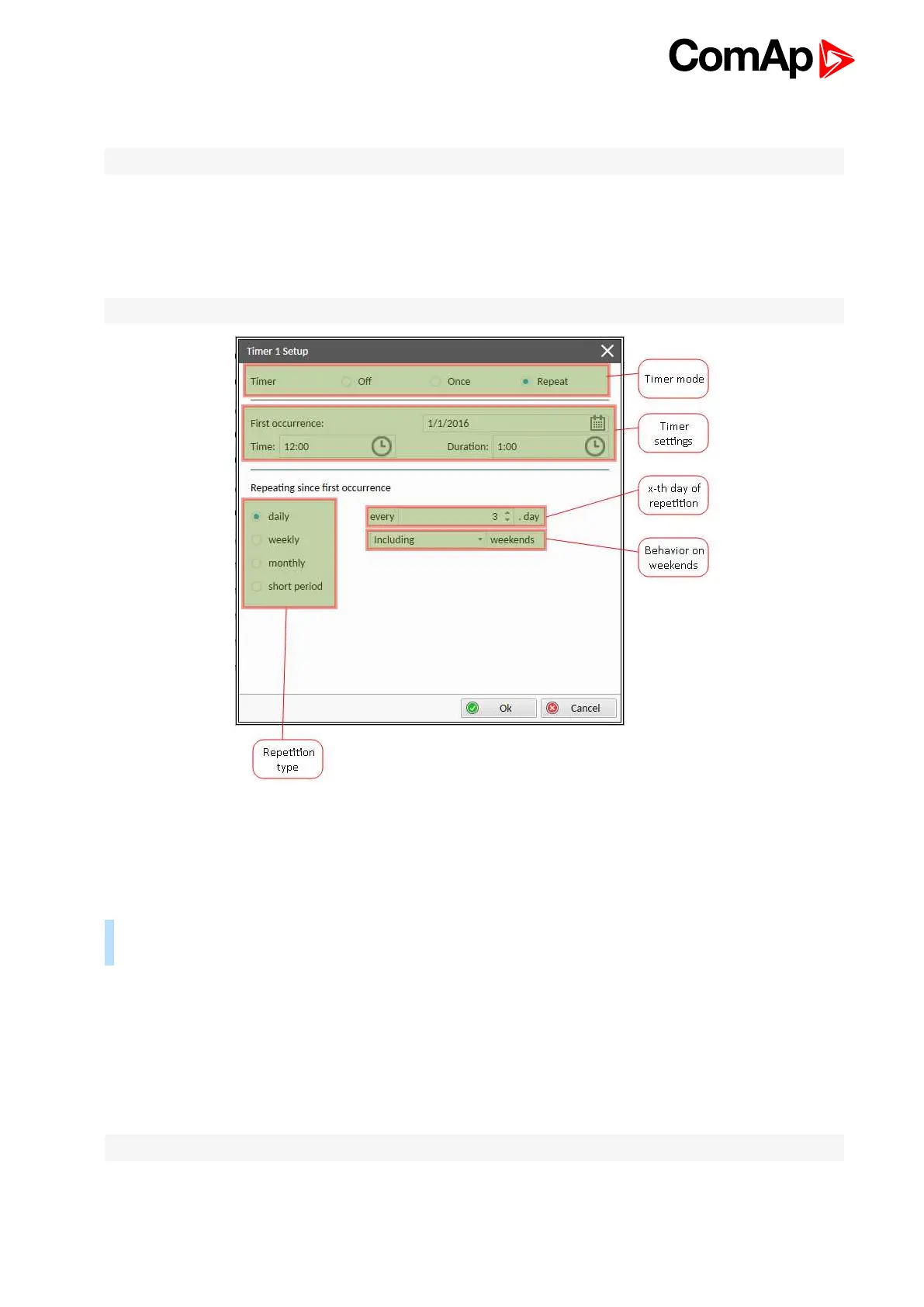

Image 5.39 Daily mode - InteliConfig
In timer mode select Repeat. In repetition type select Daily. In timer settings adjust date and time of first
occurrence of timer. Also adjust the duration of each occurrence of timer. Than select the x-th day of repetition
(Timer 1 Refresh Period (page 253)) and behavior of timer on weekends (Timer 1 Weekends (page 254)).
Example: On image example first start of timer will be 1/1/2016 at 12:00. Duration will be 1 hour. Timer will
be again activated every 3rd day at 12:00 for 1 hour including weekends.
Set-up via controller interface
In controller go to the Scheduler setpoint group. Select the function of timer via Timer 1 Function (page 250)
setpoint. Than go to Timer 1 Setup and press enter button. In Timer 1 Repetition (page 250) setpoint select
Repeated mode. Than adjust Timer 1 First Occur. Date (page 251), Timer 1 First Occur. Time (page 251) and
Timer 1 Duration (page 251). In setpoint Timer 1 Repeated (page 252) select Daily and adjust Timer 1 Refresh
Period (page 253) (x-th day of repetition) and Timer 1 Weekends (page 254) (behavior of timer on weekends).
Note: Use left and right buttons to move between timer setpoints.
