InteliMains 210 Global Guide
122

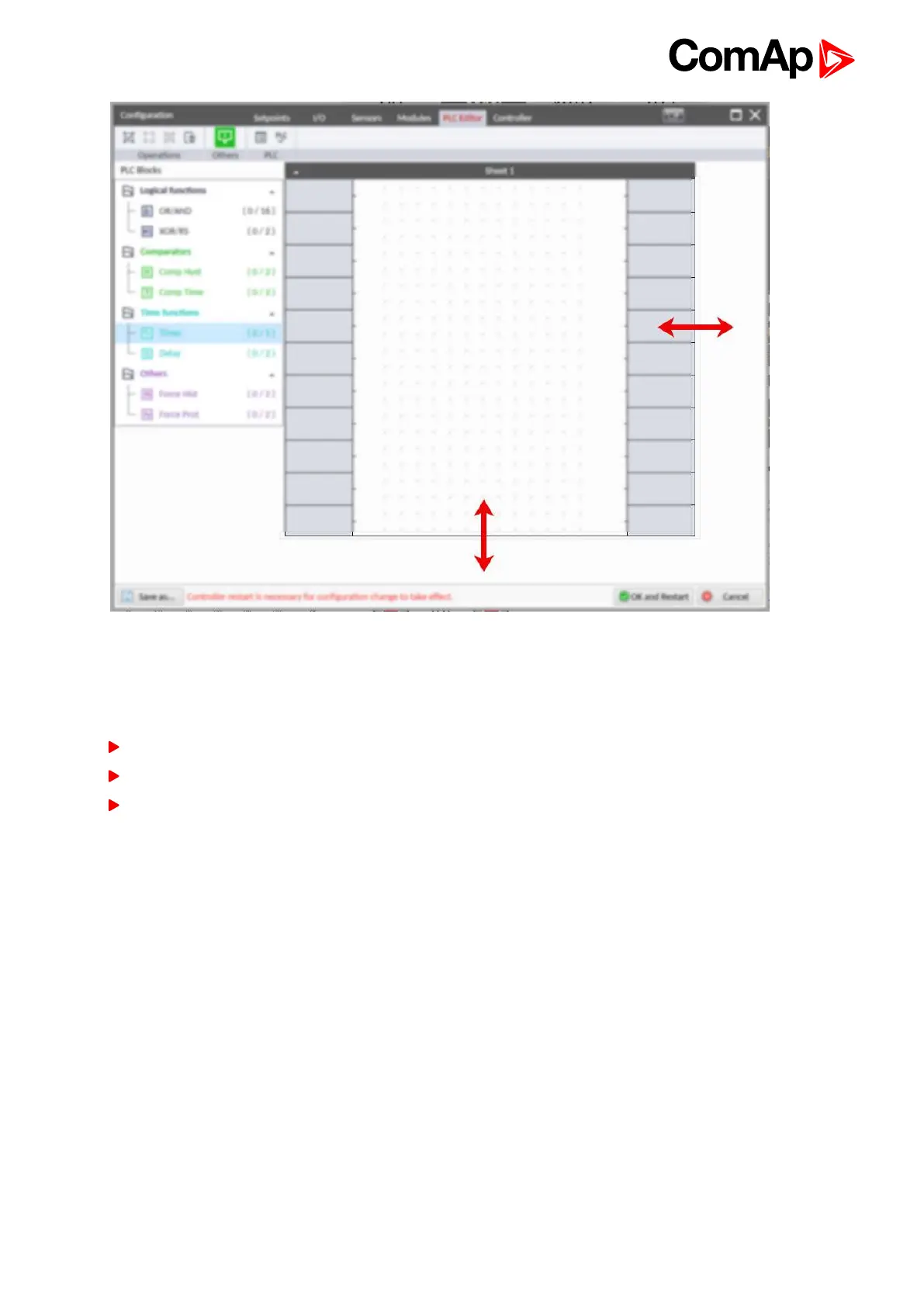

Image 5.46 Adjusting PLC sheet
Adding PLC blocks
Adding PLC block is simple and intuitive. Follow the procedure below to add PLC block.
Select required block from the list of available PLC blocks at the left and drag it into the sheet.
Double-click on the block and adjust properties of the block. See for more information about blocks.
Connect the block inputs and outputs by drawing wires in the sheet. See Define inputs and outputs (page
123) for more information. It is also possible to connected inputs and outputs via properties of selected PLC
block.
