Setpoint group General Analog Inputs Related FW 2.0.0
Range [units] the range is defined by analog sensor curve
Default value
the value is defined by
analog sensor curve
Alternative config NO
Step the step is defined by analog sensor curve
Comm object 14977 Related applications MCB, MGCB, BTB
Description
Threshold level for switching the binary output AIN SWITCH 19 (PAGE 490) on. The value is measured from
AIN SWITCH 04 (PAGE 485) analog input.

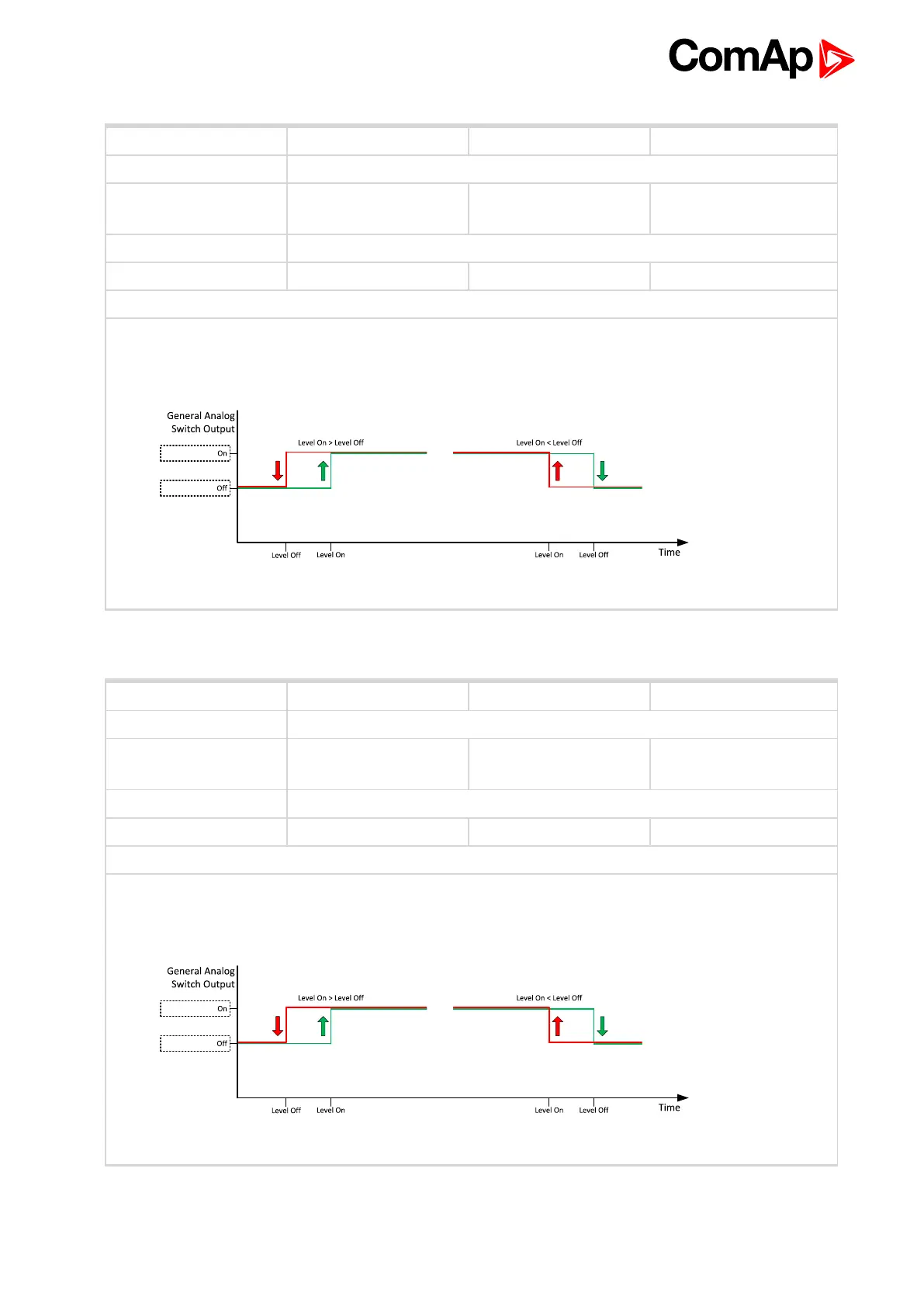

Image 8.38 General analog input 4 switch
Analog Switch 19 On
6 back to List of setpoints
Setpoint group General Analog Inputs Related FW 2.0.0
Range [units] the range is defined by analog sensor curve
Default value
the value is defined by
analog sensor curve
Alternative config NO
Step the step is defined by analog sensor curve
Comm object 14993 Related applications MCB, MGCB, BTB
Description
Threshold level for switching the binary output AIN SWITCH 19 (PAGE 490) off. The value is measured from
AIN SWITCH 04 (PAGE 485) analog input.
Image 8.39 General analog input 4 switch
Analog Switch 19 Off
6 back to List of setpoints
