InteliMains 210 Global Guide
300
Corner-Grounded Delta
Split Phase Delta
Three phase voltage measurement L1,L2,L3 with 120° phase shift
No neutral is available 3x CT (Current Transformer)
High Leg D High Leg Delta connection
Three phase voltage measurement L1,L2,L3
3x CT (Current Transformer)
3Ph4Wire Grounded Star (Grounded Wye) connection – 3PY
Three phase voltage measurement L1,L2,L3 with 120° phase shift
3x CT (Current Transformer)
Note: This value is used when binary input ALTERNATE CONFIG 2 (PAGE 401) is active.
6 back to List of setpoints
Group: PLC
Setpoint group PLC Related FW 2.0.0
Range [units] Depends on resolution of value [-]
Default value
Depends on resolution of
value [-]
Alternative config NO
Step Depends on resolution of value [-]
Comm object 10440 Related applications MCB, MGCB, BTB
Description
Adjustable value for input in PLC logic.
Configuration of setpoint:
Configuration is made via configuration PC tool InteliConfig

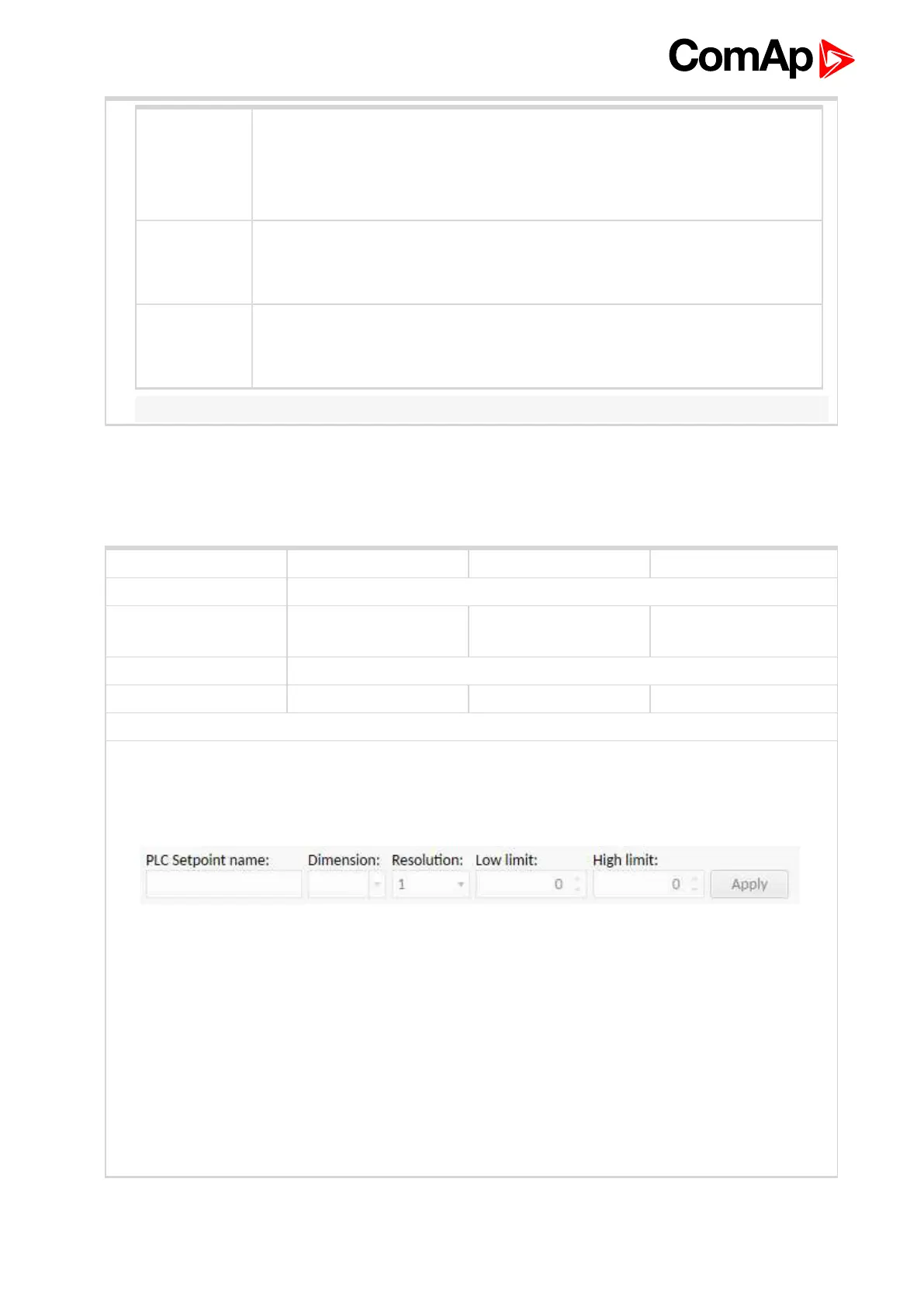

Image 8.42 Screen of configuration from InteliConfig
PLC Setpoint name Name of the setpoint (0..32 characters)
Dimension Dimension of value of the setpoint.
Resolution
Resolution of the value of the setpoint. Resolution adjust number of decimal places
in low and high limit.
Low limit
The lowest value of setpoint. Digit place of this value can be decrease or increase
by resolution of setpoint.
High limit
The highest value of setpoint. Digit place of this value can be decrease or increase
by resolution of setpoint.
PLC Setpoint 1
6 back to List of setpoints
