Related FW 2.0.0 Related applications MCB, MGCB, BTB
Comm object 1802
Description
This is an output from the General Analog Input 20 switch function. The behavior of the switch depends on
the adjustment of the setpoints Analog Switch 20 On (page 246) and Analog Switch 20 Off (page 246). The
value is measured from AIN SWITCH 20 (PAGE 490) analog input.

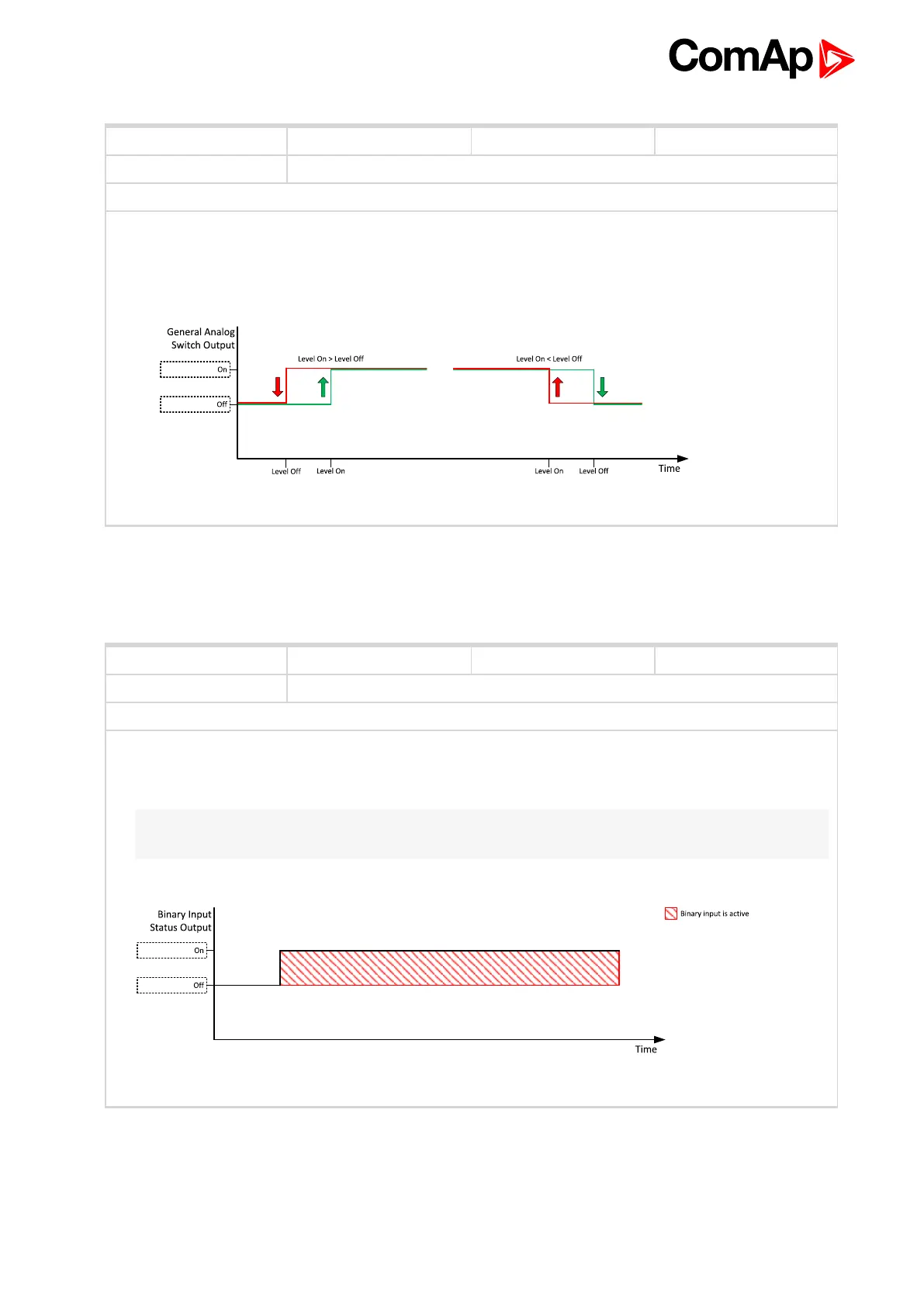

Image 8.127 General analog input 20 switch
AIN Switch20
6 Logical binary outputs alphabetically (page 435)
LBO: B
Related FW 2.0.0 Related applications MCB, MGCB, BTB
Comm object 1374
Description
This output is closed, when Binary Input 1 is active and open when Binary Input 1 is inactive. When Binary
Input 1 is used for BIN protection function then this output is closed when BIN protection alarm is in
Alarmlist.
Note: When LBI 1 is used like protection, then state of this LBO is connected with this protection e.g.
when LBI is inactive but alarm of protection is not confirm in alarmlist, LBO is still active.
Image 8.128 Binary Input 1 Status
BIN 1 Status
6 back to Logical binary outputs alphabetically
