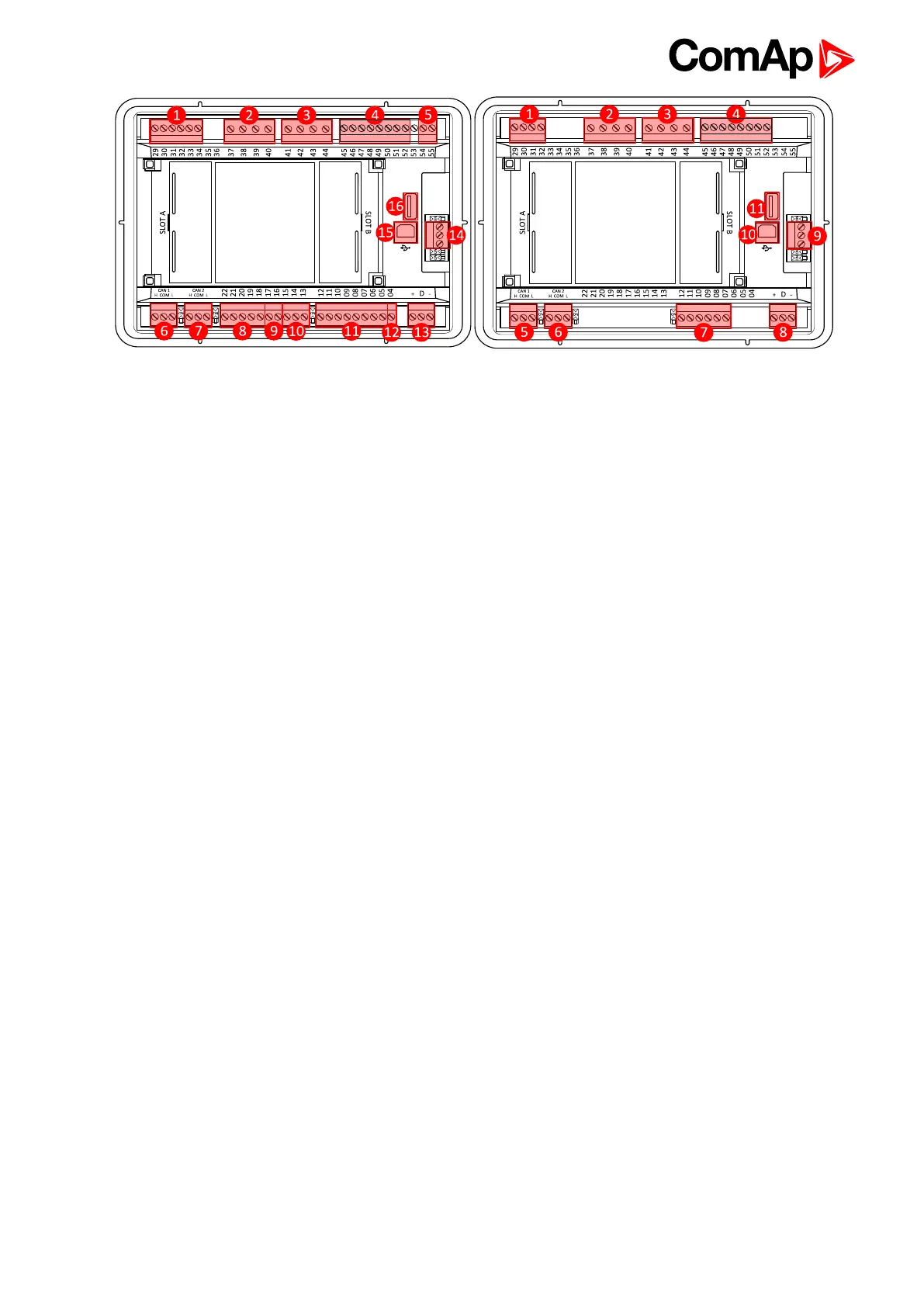

Image 5.12 Terminal diagram InteliGen 200 and InteliMains 210
InteliMains 210 doesn't use the terminals 04,05, 06 see Terminal Diagram on page 24. This leads to very
specific condition which has to be remembered during configuration.
From the configuration point of view is that you configure always binary outputs BO1-BO6 and on InteliGen 200
hardware is it in fact BO3-BO8.
