InteliMains 210 Global Guide
51

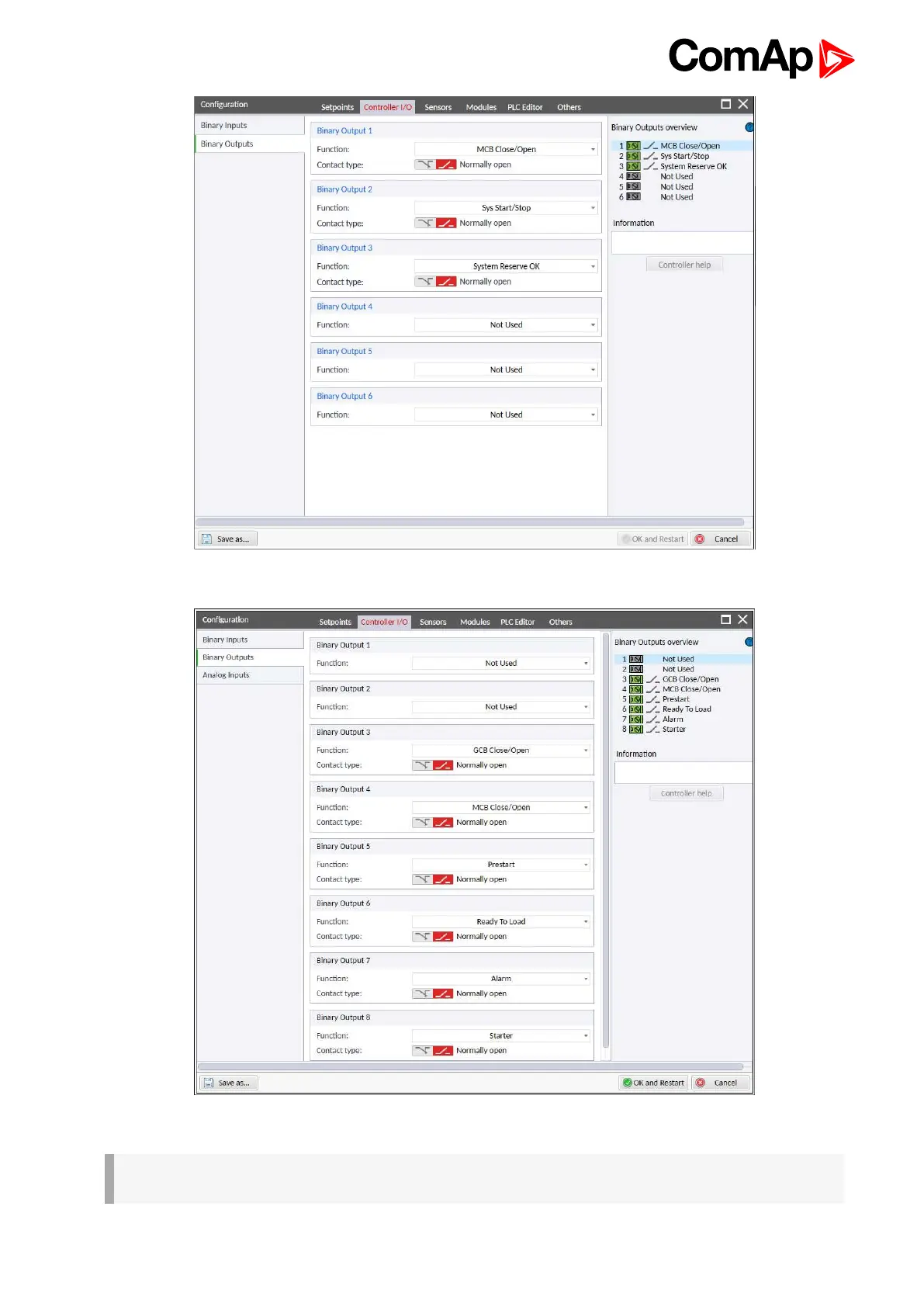

Image 5.13 Binary outputs configuration IM210
Image 5.14 Binary outputs configuration IG200
IMPORTANT: During configuration of binary outputs either for InteliMains 210 or InteliGen 200
hardware is always required to keep the same terminal numbers BO1=07...BO6=12!
