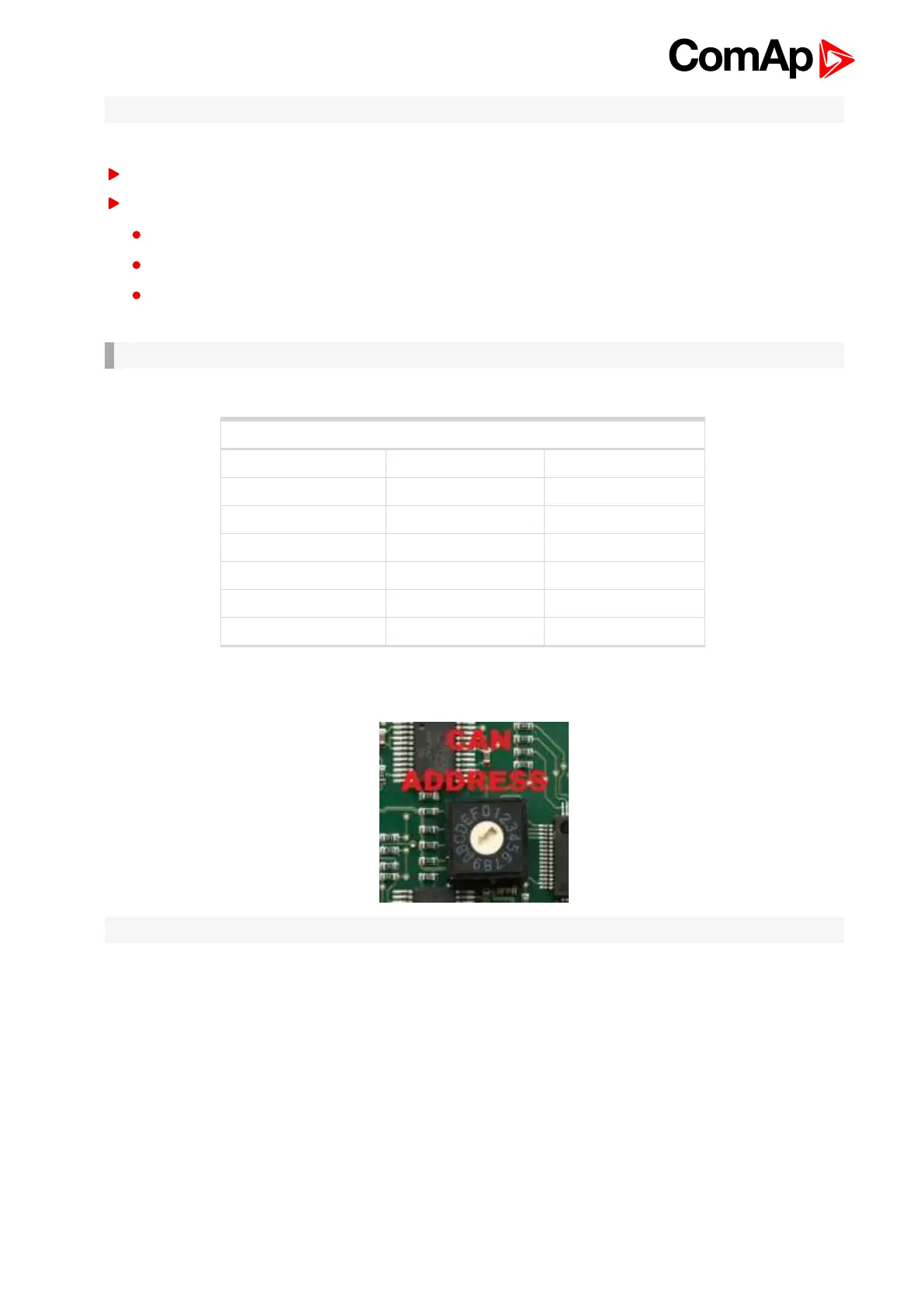

Page #556 background imageLoading...
Page #556 background image
InteliMains 210 Global Guide
556
Note: Impulse input is not supported.
Analog inputs
8 channels
can be configured as:
resistor three wire input
current input
voltage input
All inputs can be configured to any logical function or protection.
IMPORTANT: Impulse input is not supported in controller.
Supported sensors
Sensors
User curves NI100 [°F] (fix) 0-5V
PT100 [°C] (fix) NI1000 [°F] (fix) 0-10V
PT1000 [°C] (fix) 4-20mA passive
NI100 [°C] (fix) 0-2400ohm 4-20mA active
NI1000 [°C] (fix) 0-10k ohm 0-20mA passive
PT100 [°F] (fix) +-1V +-20mA active
PT1000 [°F] (fix) 0-2.4V
CAN address
DIP switch determinates CAN address for analog inputs.
Note: In case of setting the CAN address to zero, the appropriate group of signals is deactivated.
Programming firmware
Firmware upgrade process:
1. Disconnect all terminals from the unit.
2. Separate the top cover of module
3. Put the TEST jumper on a pins
