InteliMains 210 Global Guide
565

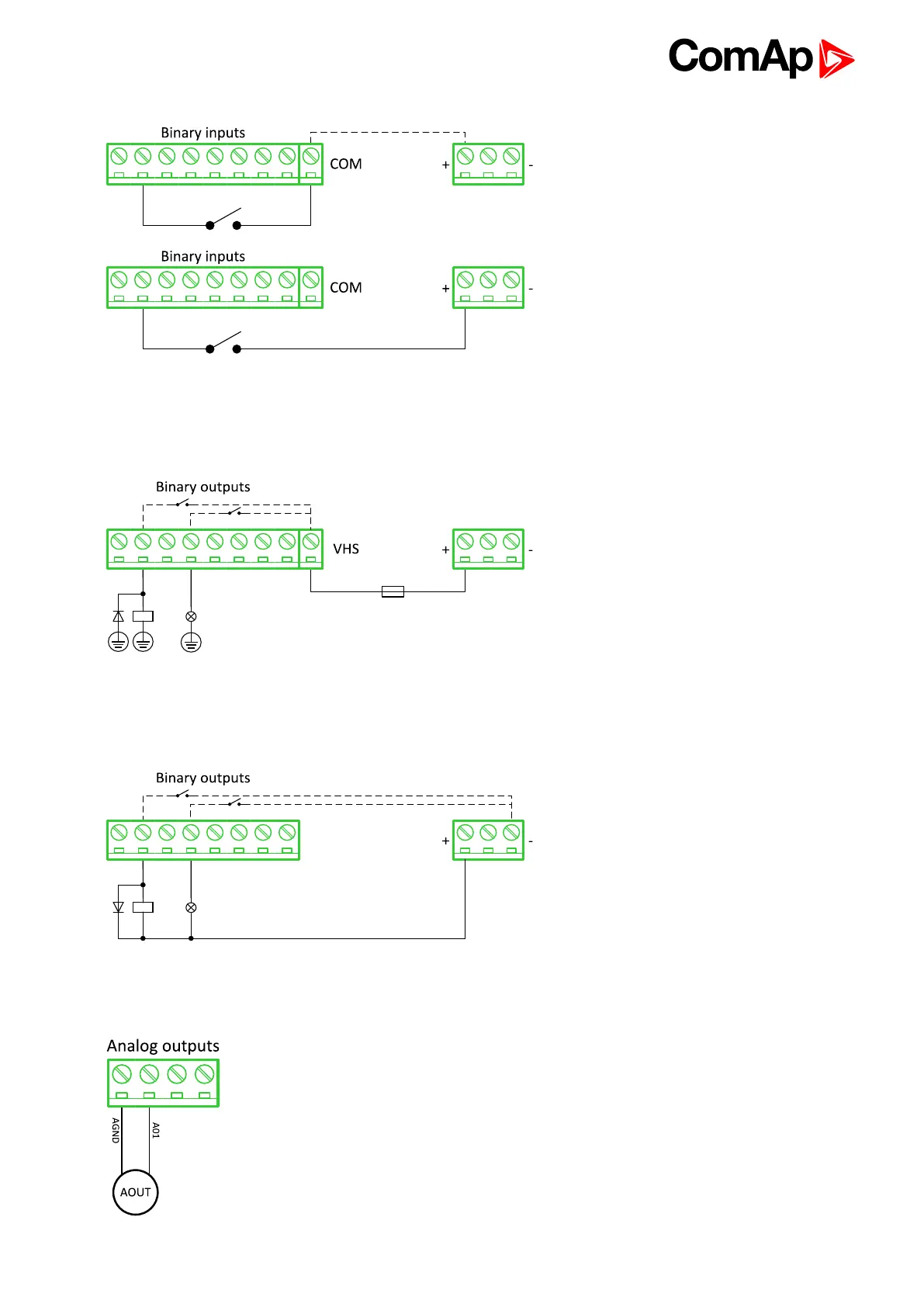

Binary inputs - pull down
There are two options of wiring. On upper picture you can see case when binary input is connected between
BIN2 and COM (COM is connected internally to the Ucc (+) - dashed line).
On lower picture is case of wiring between BIN2 and Ucc (+). Both ways are correct.
Binary outputs - high side
When high side setting of outputs is chosen - binary output must be connected to the minus potential directly
Terminal VHS (voltage High side) has to be connected to positive potential directly. Maximal current of each
binary output is 500 mA. Size of fuse depends on load.
Binary outputs - low side
When low side setting of outputs is chosen - binary output must be connected to the plus potential of power
supply directly. Minus potential is connected internally - dashed line.
Analog outputs
