InteliMains 210 Global Guide
568

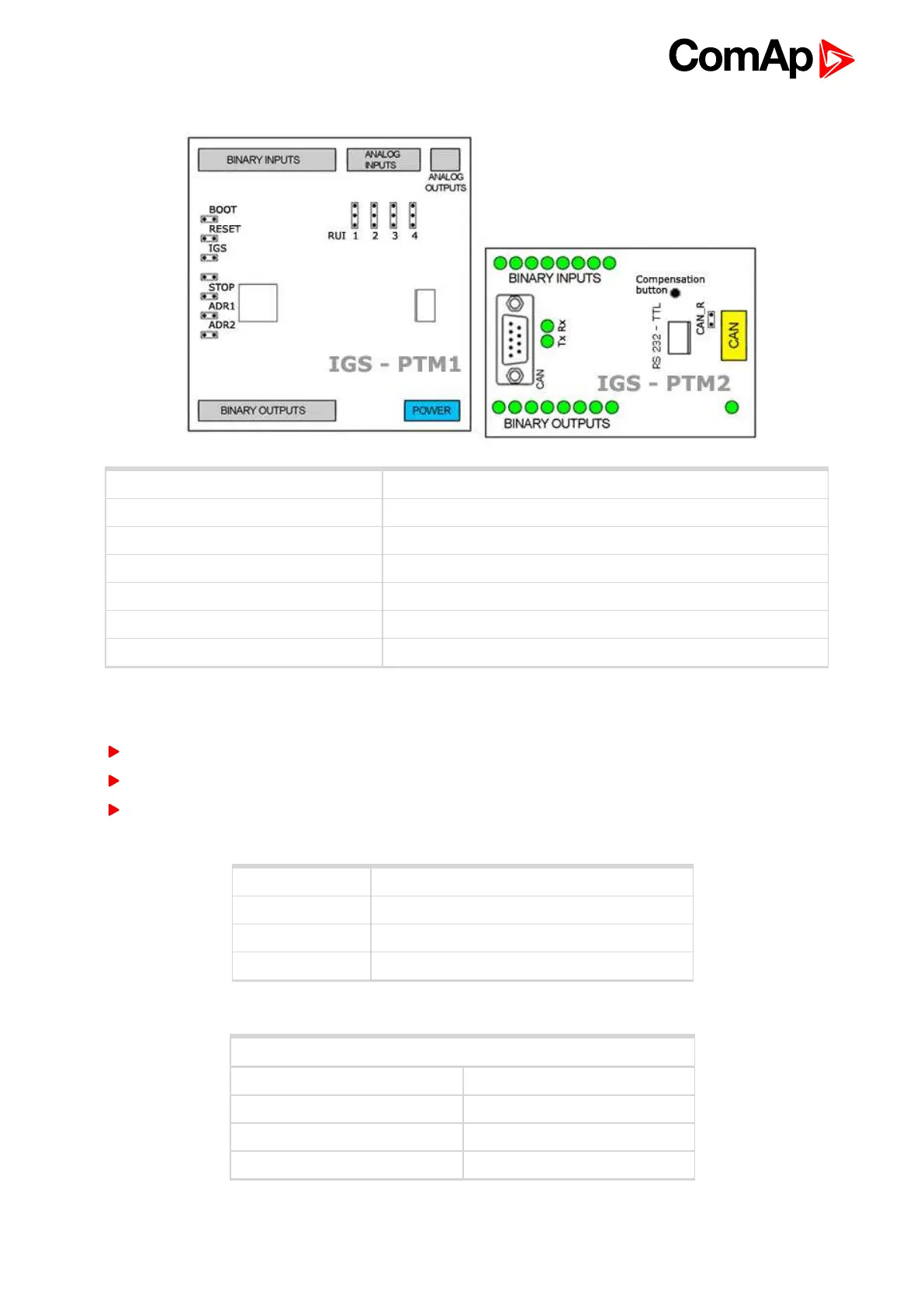

Terminals
Binary inputs 8 binary inputs
Analog inputs 4 analog inputs
Analog outputs 1 analog output
Binary outputs 8 binary outputs
CAN CAN1 line
RS232-TTL Interface for programming
Power Power supply
Analog inputs
Analog inputs can be configured for:
Resistance measurement
Current measurement
Voltage measurement
The type of analog inputs is configured via jumpers RUI located on lower PCB.
RUI Analog input configuration
1 - 2 Resistance measuring
2 - 3 Current measuring
no jumper Voltage measuring
Supported sensors
Sensors
PT100 [°C] (fix) User curves
NI100 [°C] (fix) 0-100 mV
PT100 [°F] (fix) 0-2400 ohm
NI100 [°F] (fix) ±20 mA
