InteliMains 210 Global Guide
570

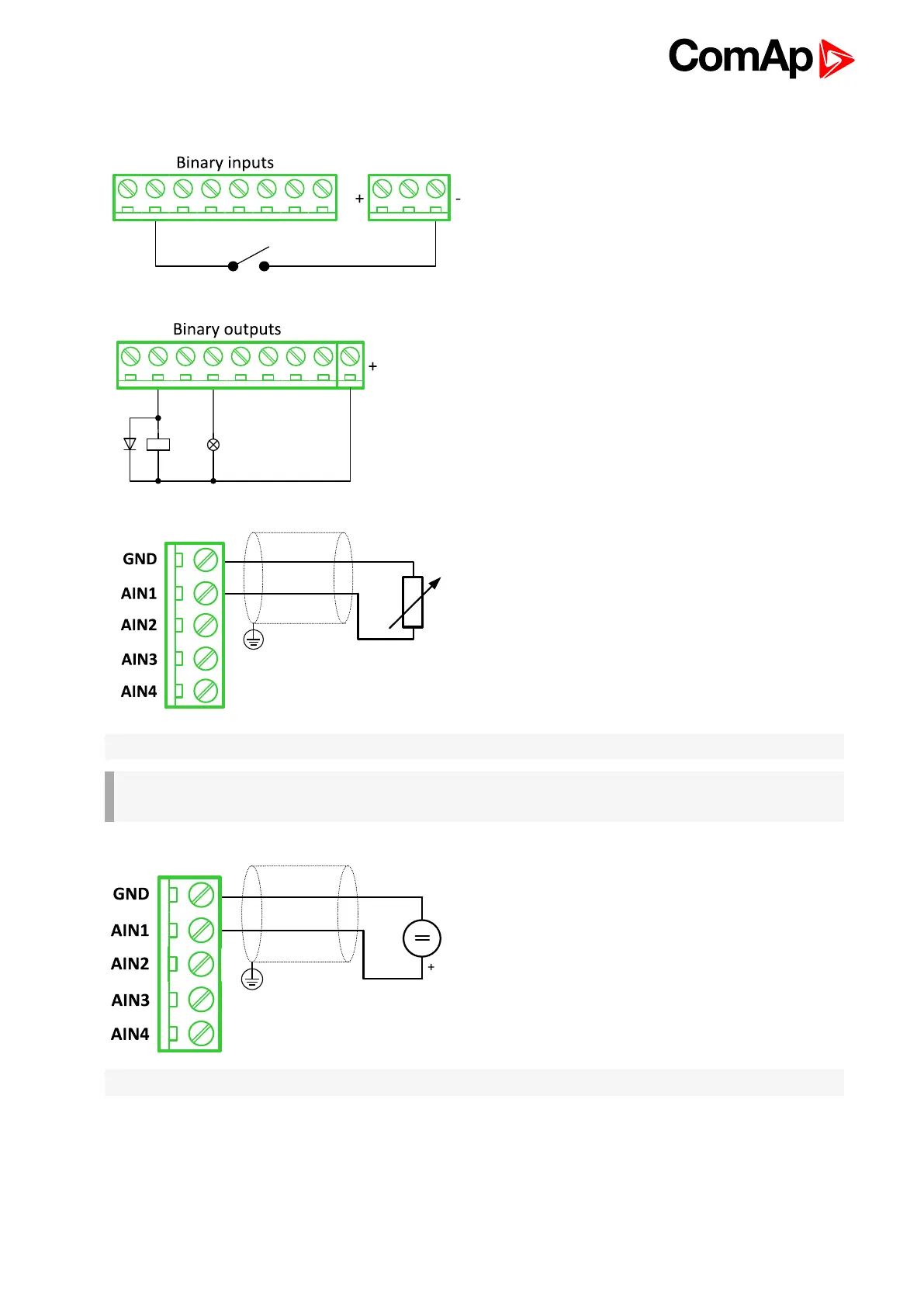

Wiring
Binary inputs
Binary outputs
Resistance sensor
Note: Range: 0- 2400 Ω
IMPORTANT: Physical analog input range is 0-250 Ω. In sensor configuration in PC tool it is
necessary to chose 0-2400 Ω sensor HW type to ensure proper function of analog input.
Voltage sensor
Note: Range 0-100 mV
