7. Press firmly (but not forcefully) on the KSU2-Cable connector to secure a good connection into
the CPM-2
nd
Cabinet Connector.
8. Replace the KSU cover and secure with cover screws.
9. Restore KSU power by powering both KSU cabinets at the same time. Operate both cabinet
power switches to the “ON” position simultaneously.

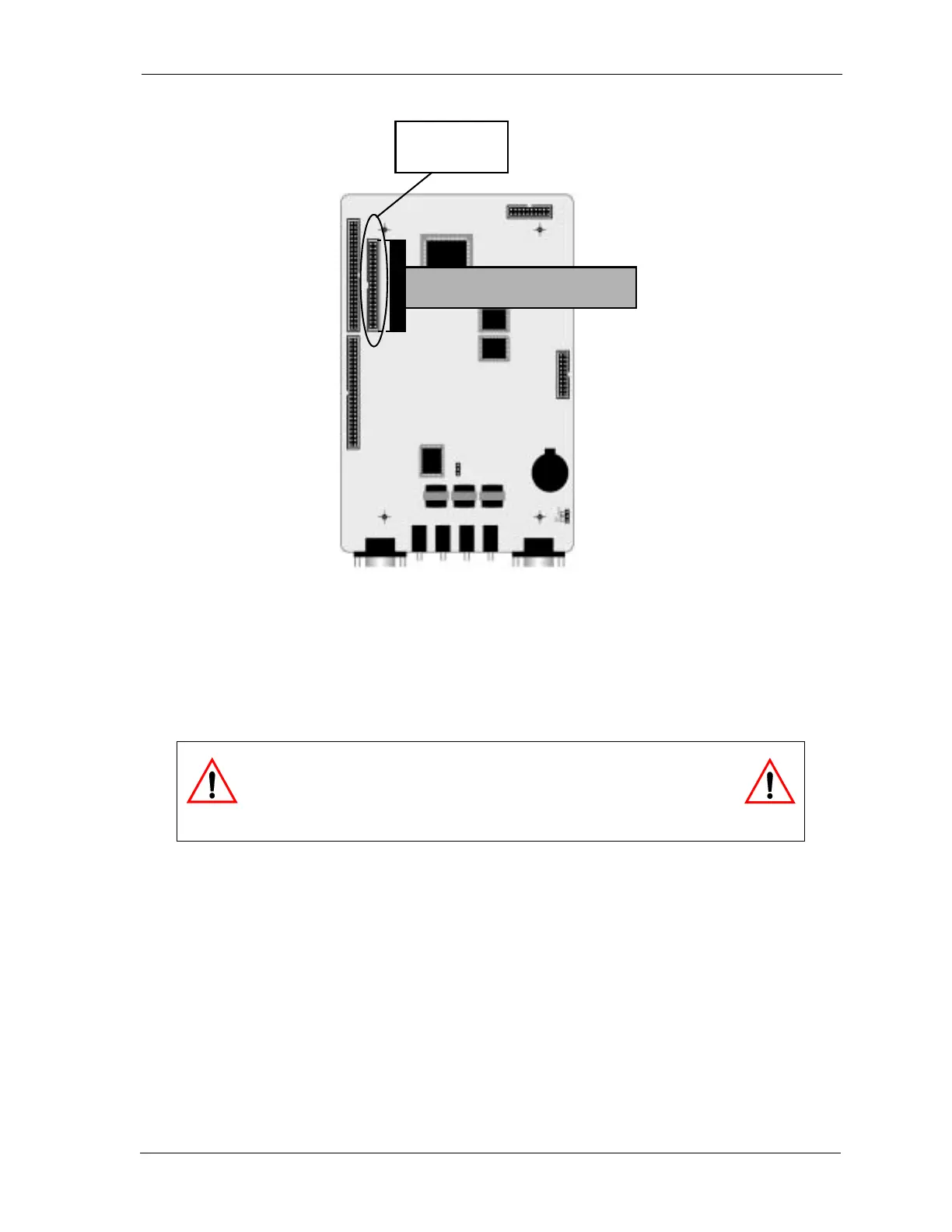

CPM
2nd Cabinet
Connector
Cable from KSU2-408E
WARNING
You must turn on both cabinets at the same time. Failure to do
so can result in damage to the KSU1 and potentially the KSU2.
