Comen N Series - Module Introduction; Power Switch Board; Infrared Transmitting Board

Principle Introduction
2
3.2 Module Introduction
3.2.1 Power Switch Board

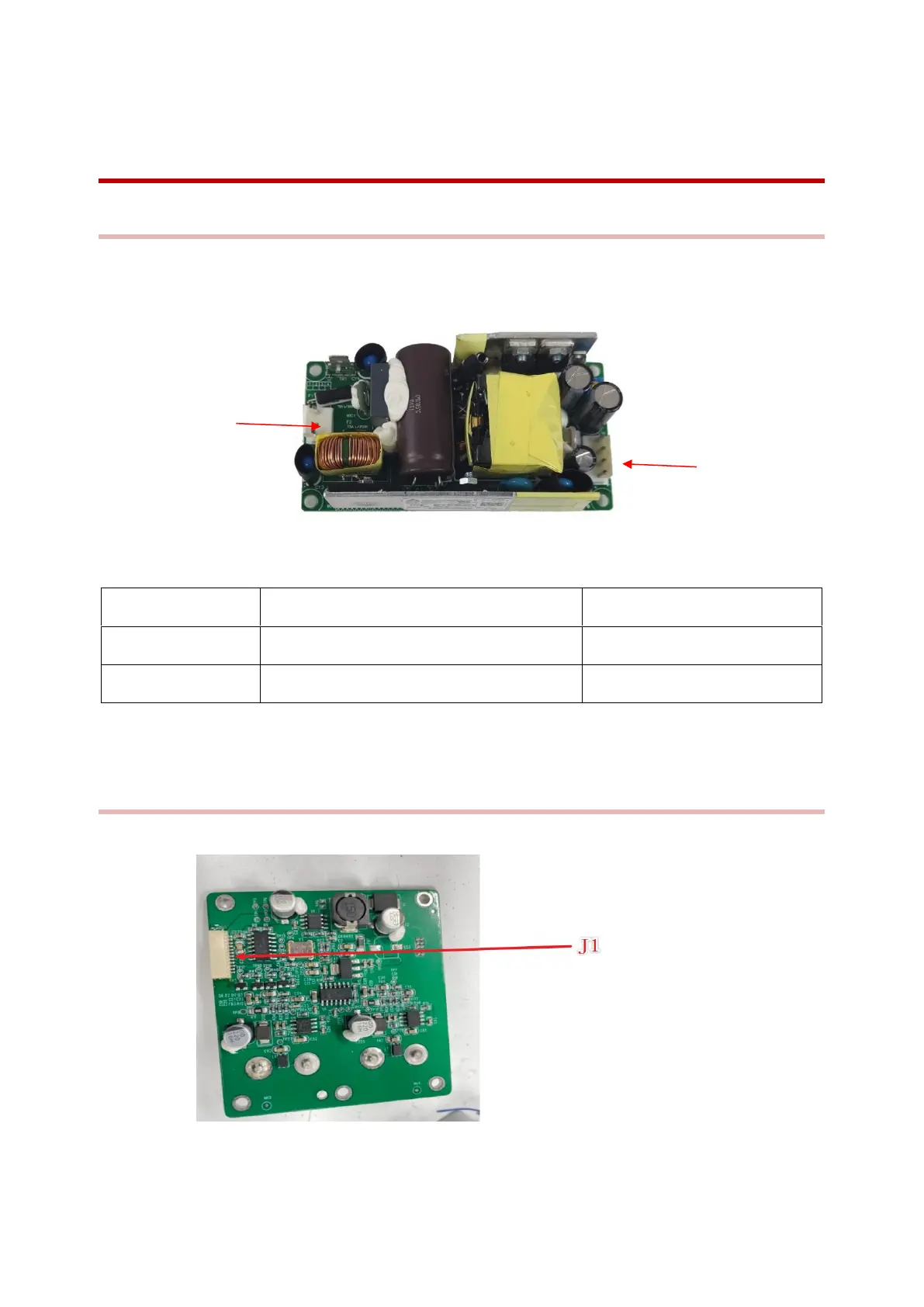

The power switchboard converts AC power to DC power. The monitor gives priority to AC power, and if AC
power is unavailable, it will immediately transition to battery power without impairing its functionality.
Chart 3-2
Socket
Description
Working voltage
CN1
2 pin, connect to AC power
100-240 V AC
CN2
4 pin, connect to DC power board
15 V
Table 3-1
3.2.2 Infrared Transmitting Board
Infrared transmitting board is to transmit and communicate between plug-in boxes and the main board.
Chart 3-3
CN1
CN2
J5
