Comen N Series - Remove the AC Power Board

Maintenance and Disassembly
6
Chart 7-8
Chart 7-9
7.8 Remove the AC power board
1. Refer to section 7.5 Remove the rear housing;

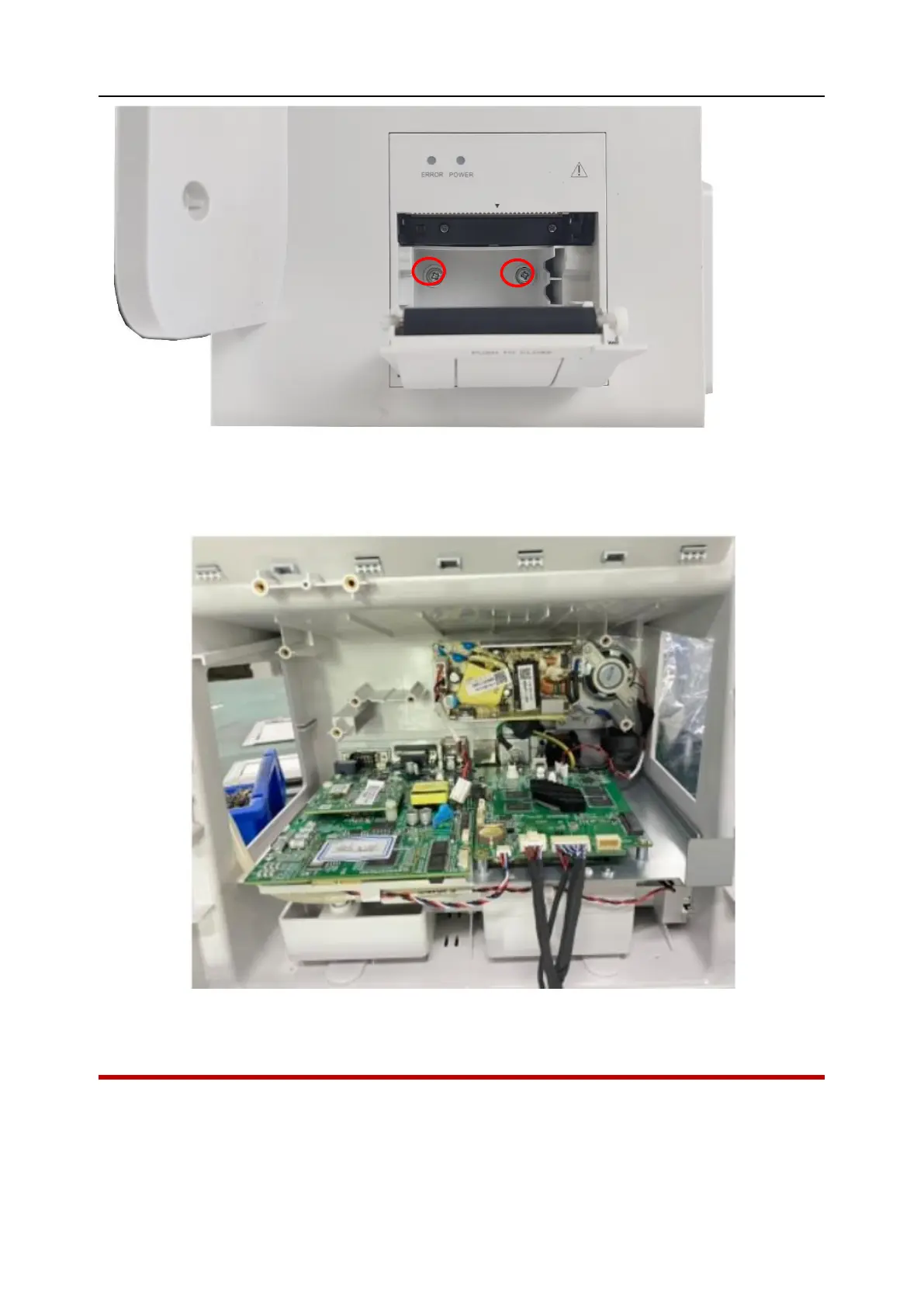

2. Remove the four screws on the AC power board, remove the AC power board, as shown
below:
