Comen N Series - N12 Mexploded View

Components
2
7
/
Speaker assembly
8
/
Power module
9
/
Battery cover
10
/
Main control assembly
Table 8-1

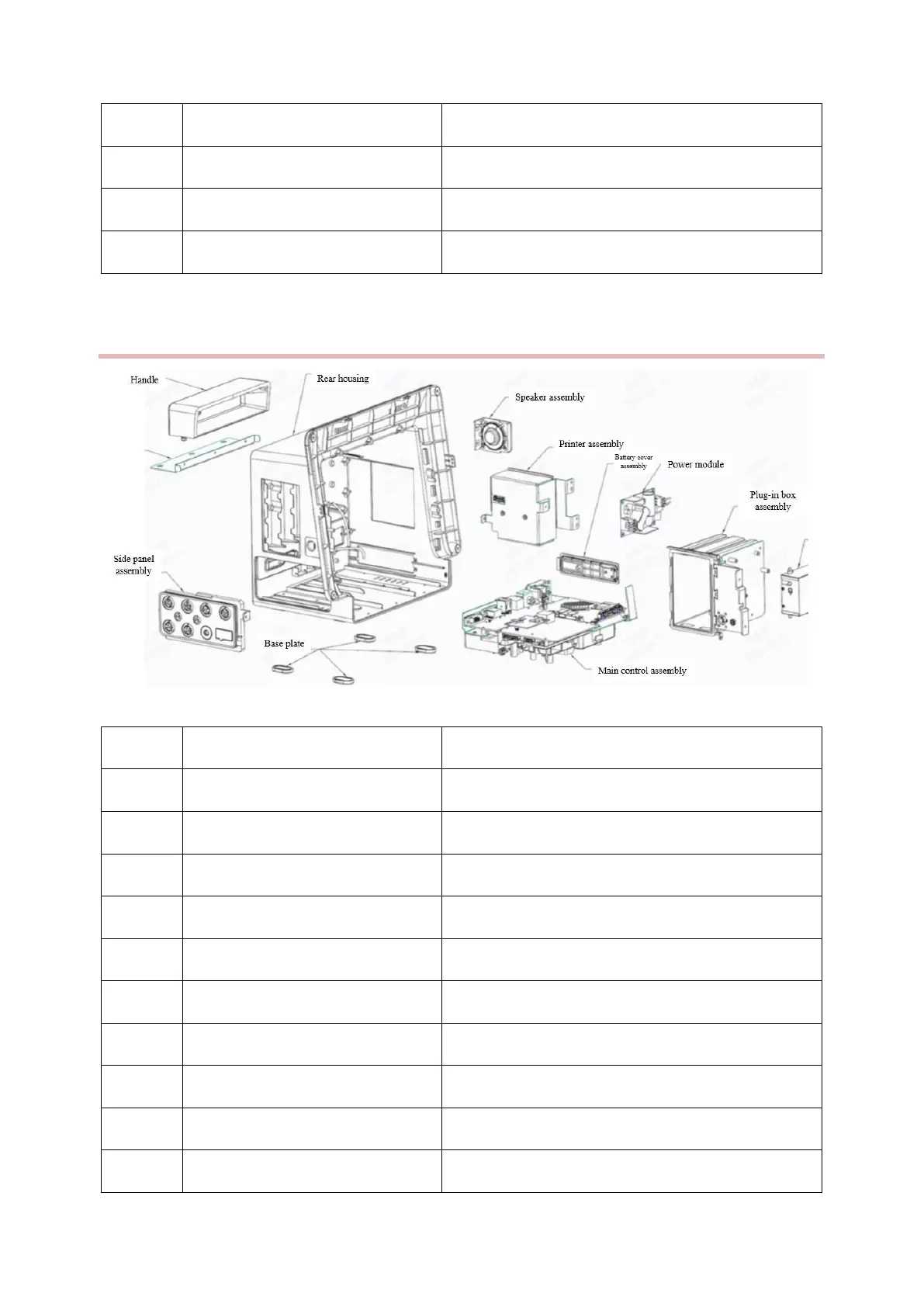

8.2.2 N12M exploded view
Chart 8-2
No.
Material No.
Material name
1
/
Handle
2
/
Handle mounting bracket
3
/
Rear housing
4
/
Side panel assembly
5
/
Base plate
6
/
Printer assembly
7
/
CO
2
module
8
/
Speaker assembly
9
/
Battery module
10
/
Battery cover assembly
