Maintenance and Disassembly
7
Chart 7-11

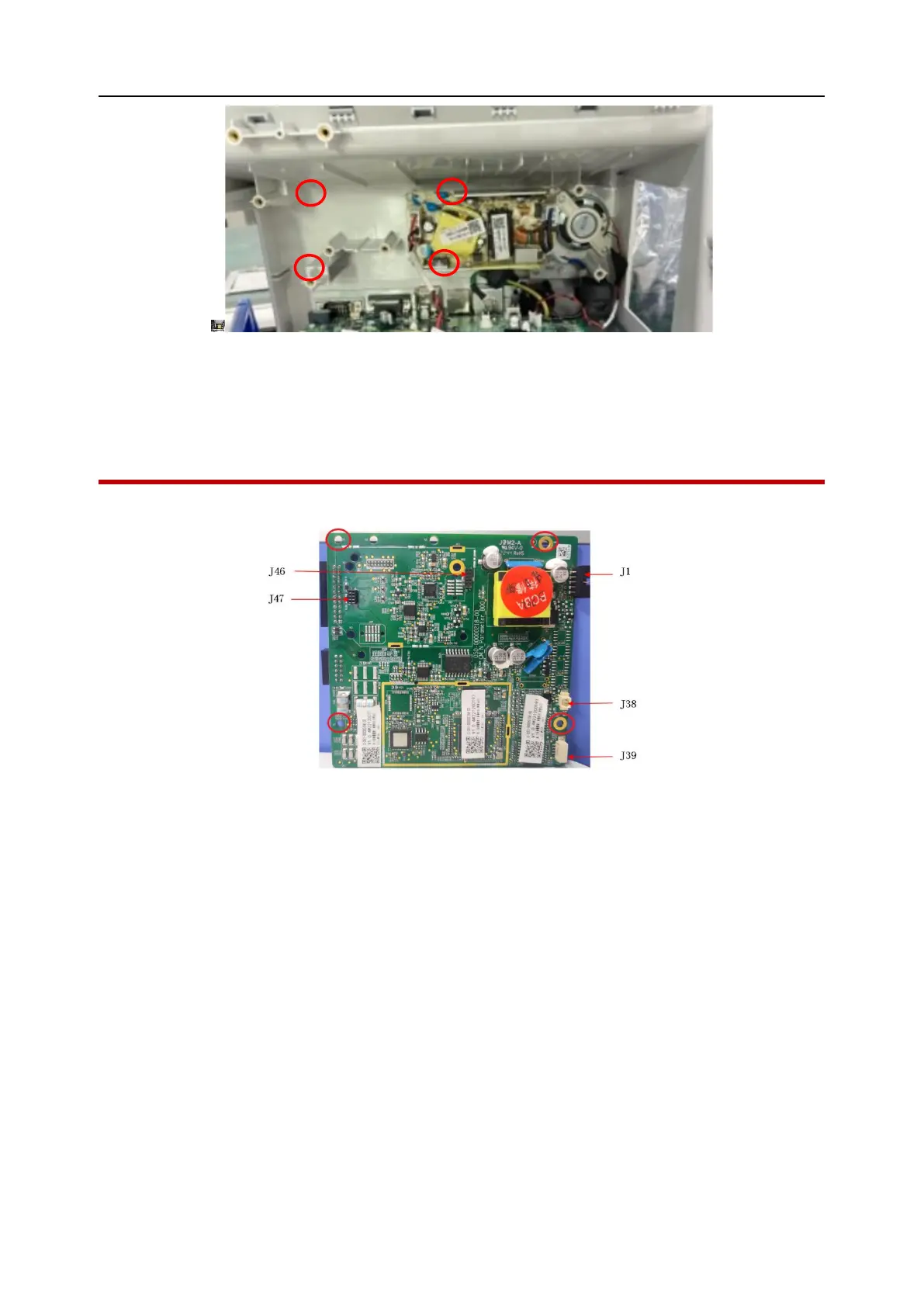

7.9 Remove the parameter board
1. Remove the four screws to remove the parameter board, as shown below:
