Comen N Series - K1 Main Board (Main Control)

Principle Introduction
3
Socket
Description
Working voltage
J1
Connect the infrared plug-in slot to the main board
15V，5V
Table 3-2
3.2.3 3.2.3 K1 Main Board (Main Control)
The main board is the heart of the patient monitor. It implements a series of tasks including input& output
control, data processing, display processing, system control, communication management, printing
management and alarming, etc.

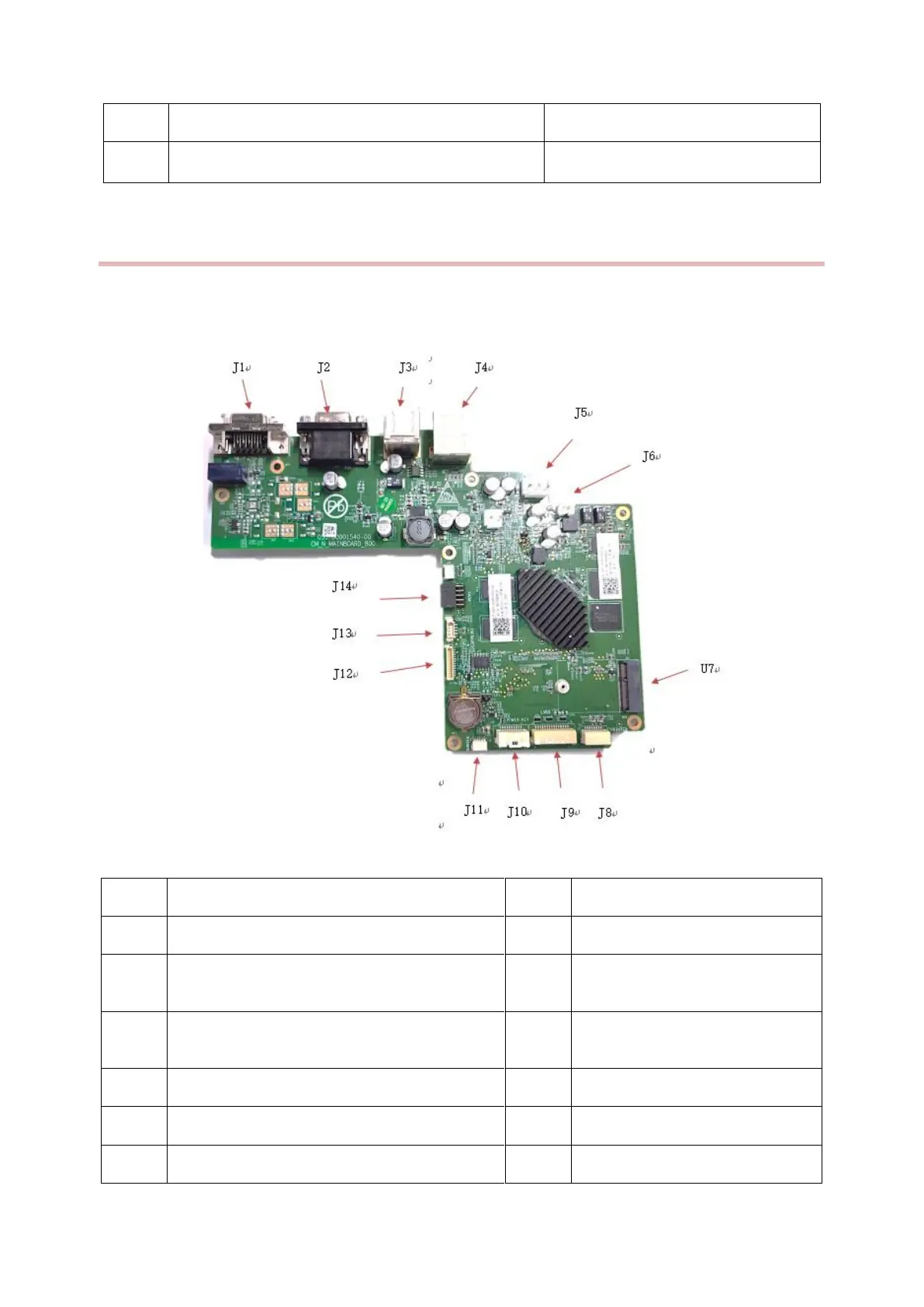

Chart 3-4
Socket
Description
Socket
Description
J1
Multi-functional interface socket
J8
Printer module socket
J2
VGA interface socket
J9
LCD and touch screen interface
socket
J3
USB interface socket
J10
On/Off keyboard and function
keyboard, alarm light board socket
J4
Network interface socket
J11
SunTech NIBP module socket
J5
Car charging board socket
J12
Infrared board socket
J6
Speaker interface socket
J13
CO2 module socket
