Comm-Tec MTX88M-N - Matrix Rear Panel

Modular Matrix Switcher
Comm-tec Srl 11 www.comm-tec.it

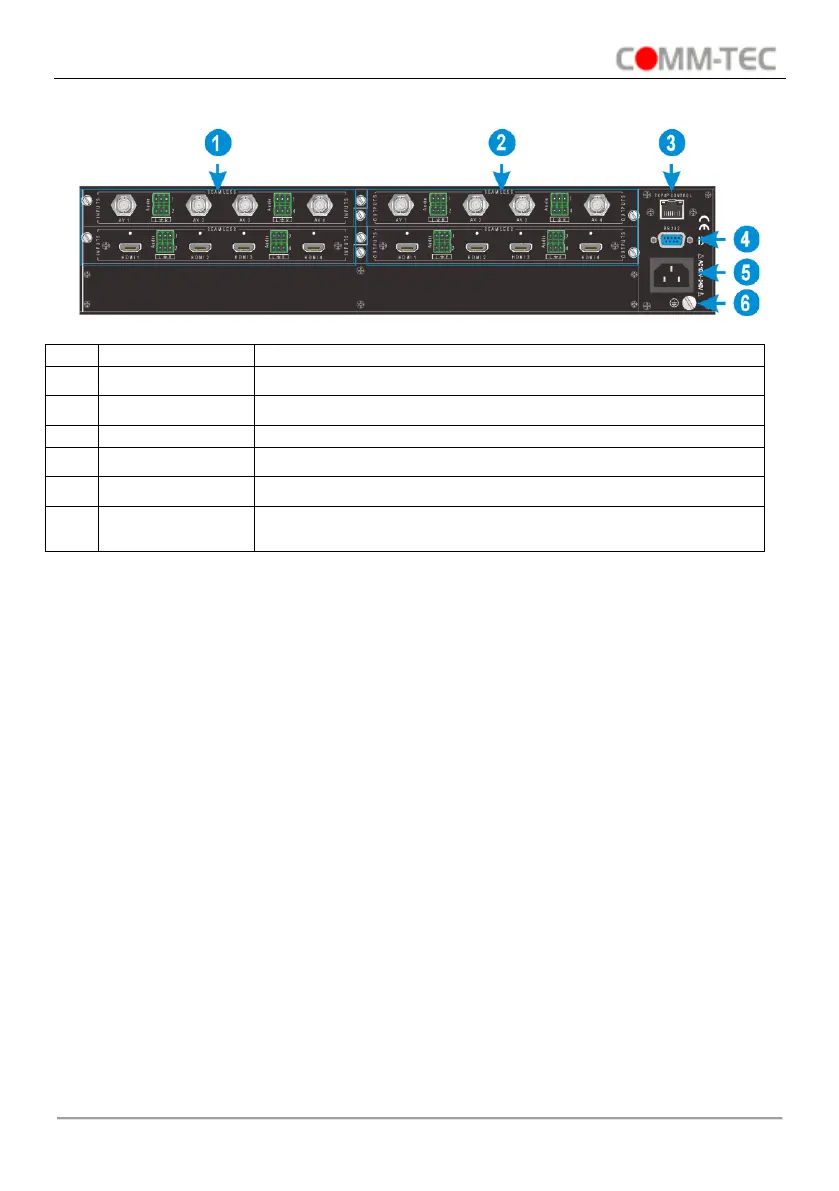

2.2. Matrix Rear Panel
No.
Name
Description
①
INPUTS
Signal card slots to insert necessary input cards.
②
OUTPUTS
Signal card slots to insert necessary output cards.
③
TCP/IP
RJ45 connector for TCP/IP control.
④
RS232
Serial control port for RS232 control.
⑤
Power port
Connect with household alternating current power.
⑥
GND connector
System grounding.
