3. System Connection
3.1. Usage Precautions
● Make sure all components and accessories included before installation.
● System should be installed in a clean environment with proper temperature and
humidity.
● All of the power switches, plugs, sockets, and power cords should be insulated and
safe.
● All devices should be connected before power on.

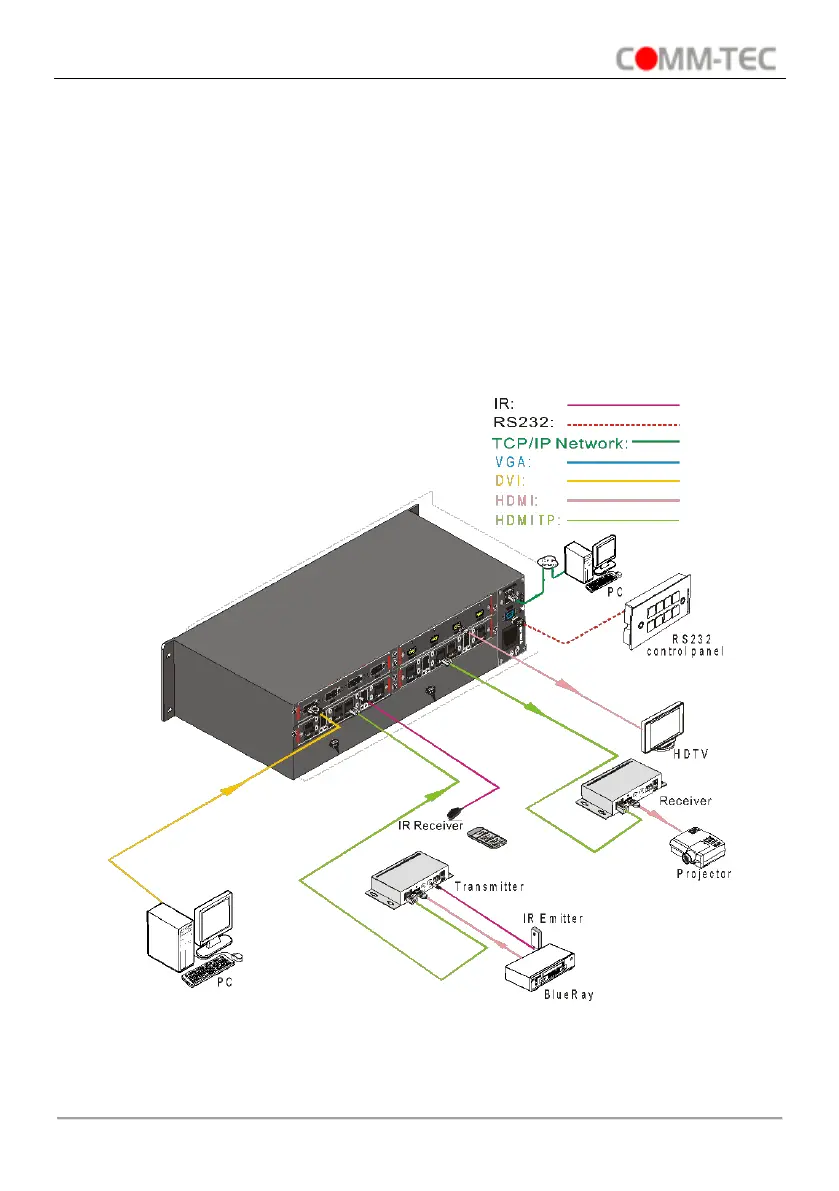

3.2. Connection Diagram
Note: All the input and output signal cards don’t support hot-plug, but the input and output
ports on the signal cards support.
To Next Page
