Modular Matrix Switcher
Comm-tec Srl 15 www.comm-tec.it

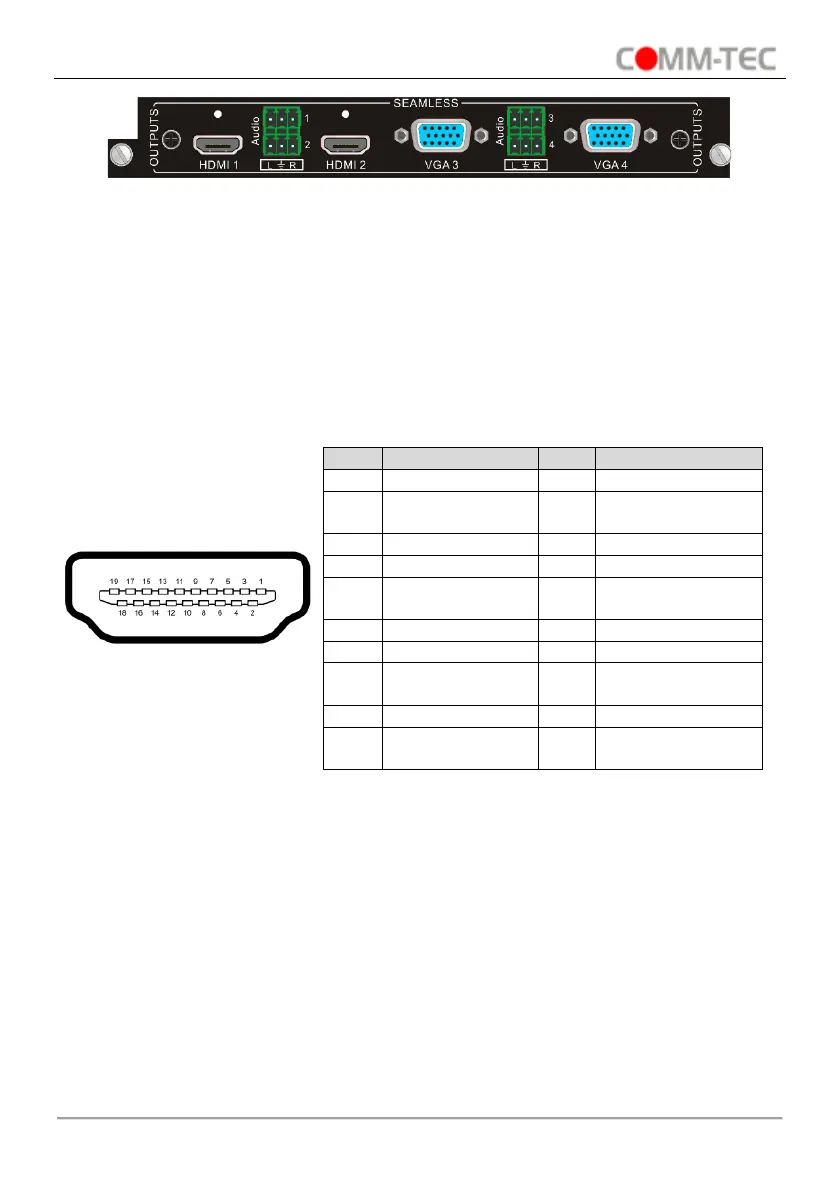

4O-VH
Supports seamless switching, it can be used in combination with other seamless input
signal card.
Supports HDMI 1.2 and HDCP 1.3.
Manually select VGA (RGBHV), YPbPr, or C-VIDEO signal format.
Supports output resolution selection, and it is up to 1920x1080P@60Hz.
Supports 4 external L+R audio outputs and audio channel control.
Pin layout of the HDMI connectors (female).
No.
Signal
No.
Signal
1
TMDS Data 2+
20
SHELL
2
TMDS Data 2
Shield
19
Hot Plug Detect
3
TMDS Data 2-
18
+5V Power
4
TMDS Data 1+
17
Ground
5
TMDS Data 1
Shield
16
DDC Data
6
TMDS Data 1-
15
DDC Clock
7
TMDS Data 0+
14
No Connect
8
TMDS Data 0
Shield
13
CEC
9
TMDS Data 0-
12
TMDS Clock-
10
TMDS Clock+
11
TMDS Clock
Shield
