Comm-Tec MTX88M-N - Page 24

Modular Matrix Switcher
Comm-tec Srl 24 www.comm-tec.it
How the indicators work:
Color
Definition
Status
Yellow
Power LED
The LED illuminates yellow when power is
applied.
Green
Link LED
The LED illuminates green when the port is
successfully connected to other device by CATx
cable.

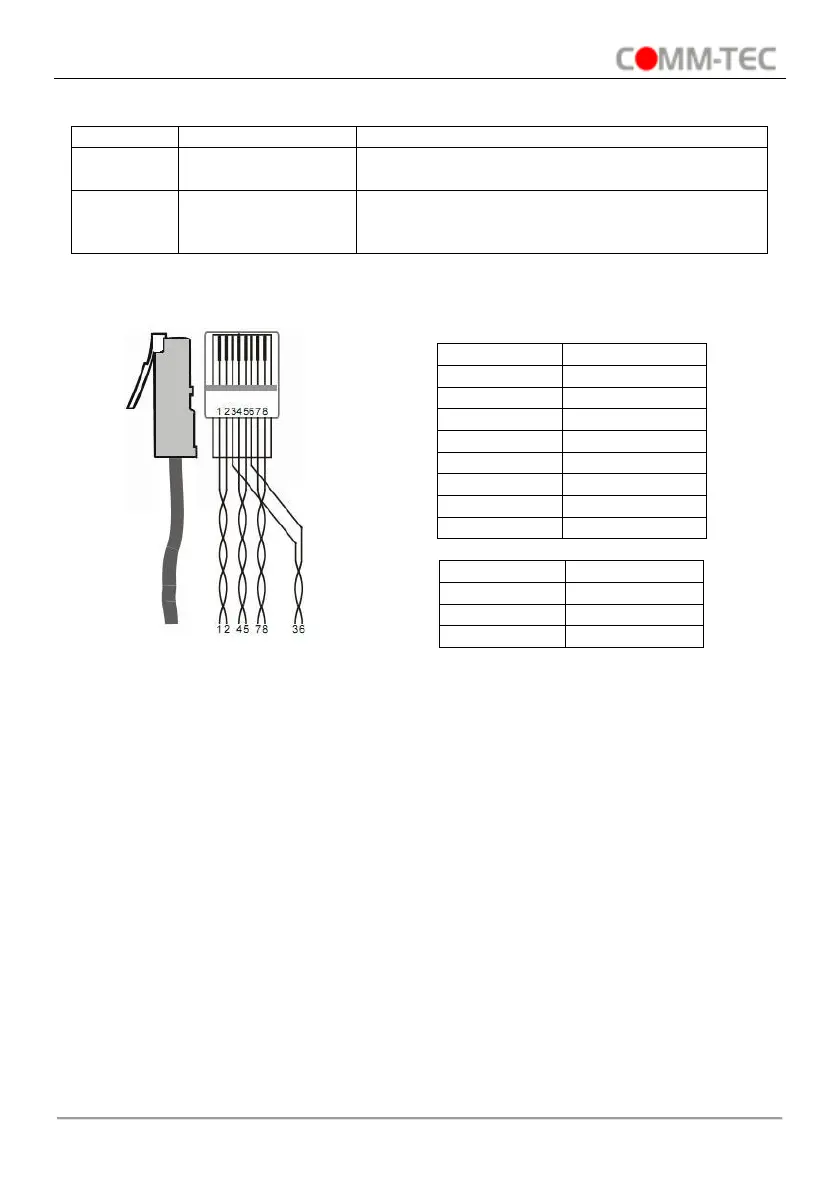

Pin layout of the HDBT connector:
Pin
Color
1
orange white
2
orange
3
green white
4
blue
5
blue white
6
green
7
brown white
8
brown
1st Group
4--5
2nd Group
1--2
3rd Group
3--6
4th Group
7--8
Note: Cable connectors MUST be metal one, and the shielded layer of cable MUST be
connected to the connector’s metal shell, to well share the grounding.
