APPENDIX C 128D
CONNECTORS/PORTS FOR
PERIPHERAL EQUIPMENT

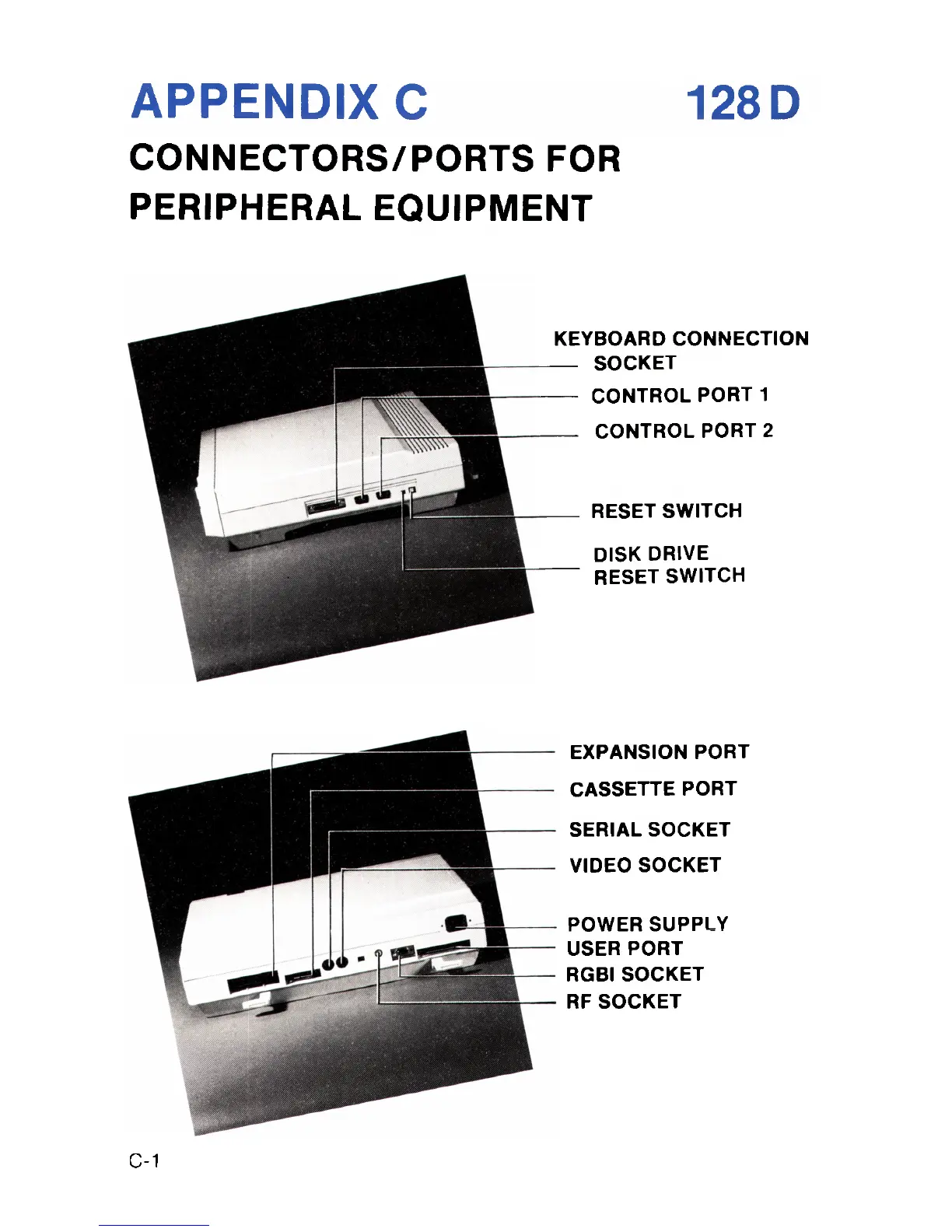

KEYBOARD CONNECTION
— SOCKET
— _ CONTROL PORT 1
__ CONTROL PORT 2
RESET SWITCH
DISK DRIVE
RESET SWITCH
EXPANSION PORT
CASSETTE PORT
SERIAL SOCKET
VIDEO SOCKET
POWER SUPPLY
USER PORT
RGBI SOCKET
RF SOCKET
