APPENDIX H
MEMORY MAP
SYSTEM MEMORY MAP

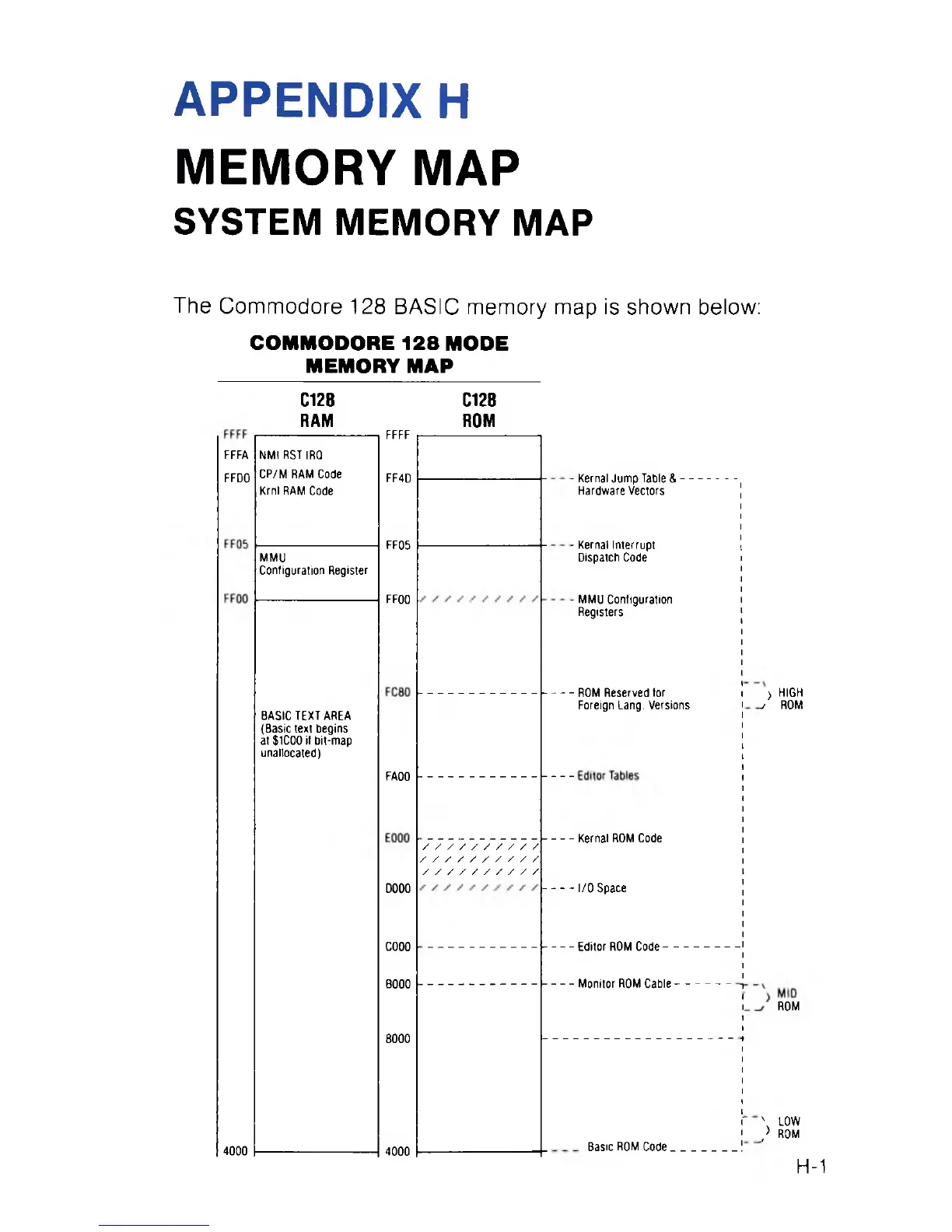

The Commodore 128 BASIC memory map is shown below:
COMMODORE 128 MODE
MEMORY MAP
C128
RAM
FFFA
FFDO
4000
NMI RST IRQ
CP/M RAM Code
Krnl RAM Code
MM U
Configuration Register
BASIC TEXT AREA
(Basic text begins
at $1C00 it bit-m ap
unallocated)
FFFF
FF4D
FF05
FF00
C128
ROM
FA00
D000
C000
B000
8000
4000
//////////
//////////
//////////
- Kernal Jump Table & -
Hardware Vectors
- Kernal Interrupt
Dispatch Code
- MMU Configuration
Registers
- ROM Reserved for
Foreign Lang. Versions
- Kernal ROM Code
----------- I/O Space
- Editor ROM Code - -
- Monitor ROM Cable -
Basic ROM Code_
> HIGH
y ROM
ROM
\ LOW
) ROM
H-1
