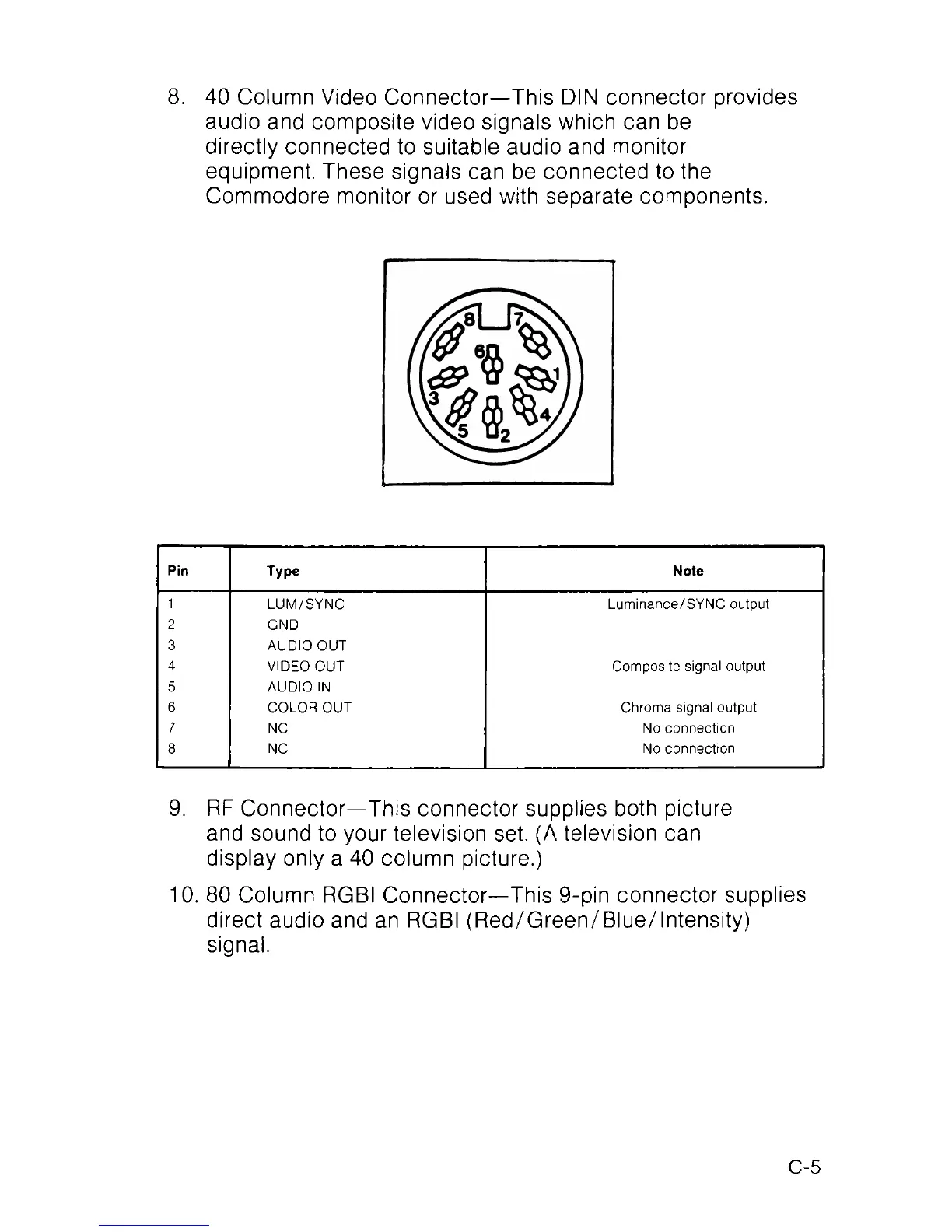

8. 40 Column Video Connector—This DIN connector provides
audio and composite video signals which can be
directly connected to suitable audio and monitor
equipment. These signals can be connected to the
Commodore monitor or used with separate components.
Pin
Type
Note
1
LUM/SYNC
Luminance/SYNC output
2
GND
3
AUDIO OUT
4
VIDEO OUT
Composite signal output
5
AUDIO IN
6
COLOR OUT
Chroma signal output
7
NC
No connection
8
NC
No connection
9. RF Connector—This connector supplies both picture
and sound to your television set. (A television can
display only a 40 column picture.)
10. 80 Column RGBI Connector—This 9-pin connector supplies
direct audio and an RGBI (Red/Green/Blue/Intensity)
signal.
