ComNav 1500 / 1510 Autopilot - 12 -

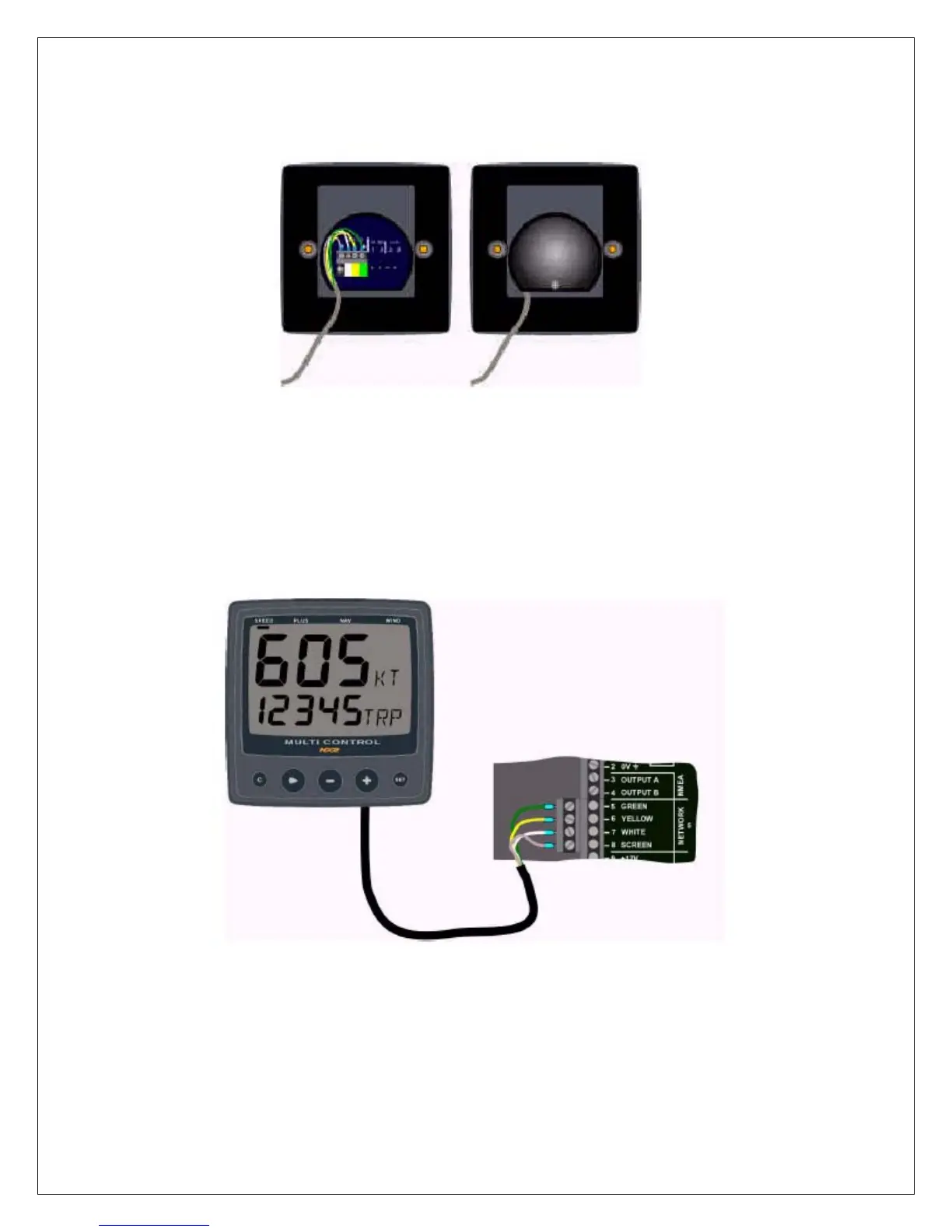

• Apply silicon paste to the instrument connection pins at the back of the
Instrument. Press the jack plug onto the instrument pins. Press the cable in to the
cable leads.
• Secure the back cover with the screw.
All NX2 instruments are connected directly to the NX2 Network in a daisy chain.
They all use the same colour coded 4-pole jack plugs.
