ComNav 1500 / 1510 Autopilot - 26 -
4. AUTOPILOT INSTRUMENT CONTROL HEAD OPERATION
4.1 Instrument Overview
4.1.1 Instrument Display
The display consists of two lines, a top-line with 24mm (1”) digits and a lower-line
with 13mm (0.5”) digits.
4.1.2 Instrument Pages and Functions
The Autopilot instrument has its functions divided into 4 pages. The page
names are printed above the display:
HEADING (Compass), NAV (Navigation), WIND and PWR ST (Power steer)
The selected function is indicated by the page-arrow at top of the display.
4.1.3 Instrument Modes
Standby Mode: The instrument functions as a passive compass repeater.
Autopilot Mode: When any Autopilot function is activated.
Setup Mode: Allows calibrating your Network settings.
Edit Mode: Allows editing settings (when digits are flashing).
4.1.4 Power On/Off
You will switch on/off your NX2 instruments by using the instrument
switch on your electrical panel as the instruments have no separate
power on/off-button.

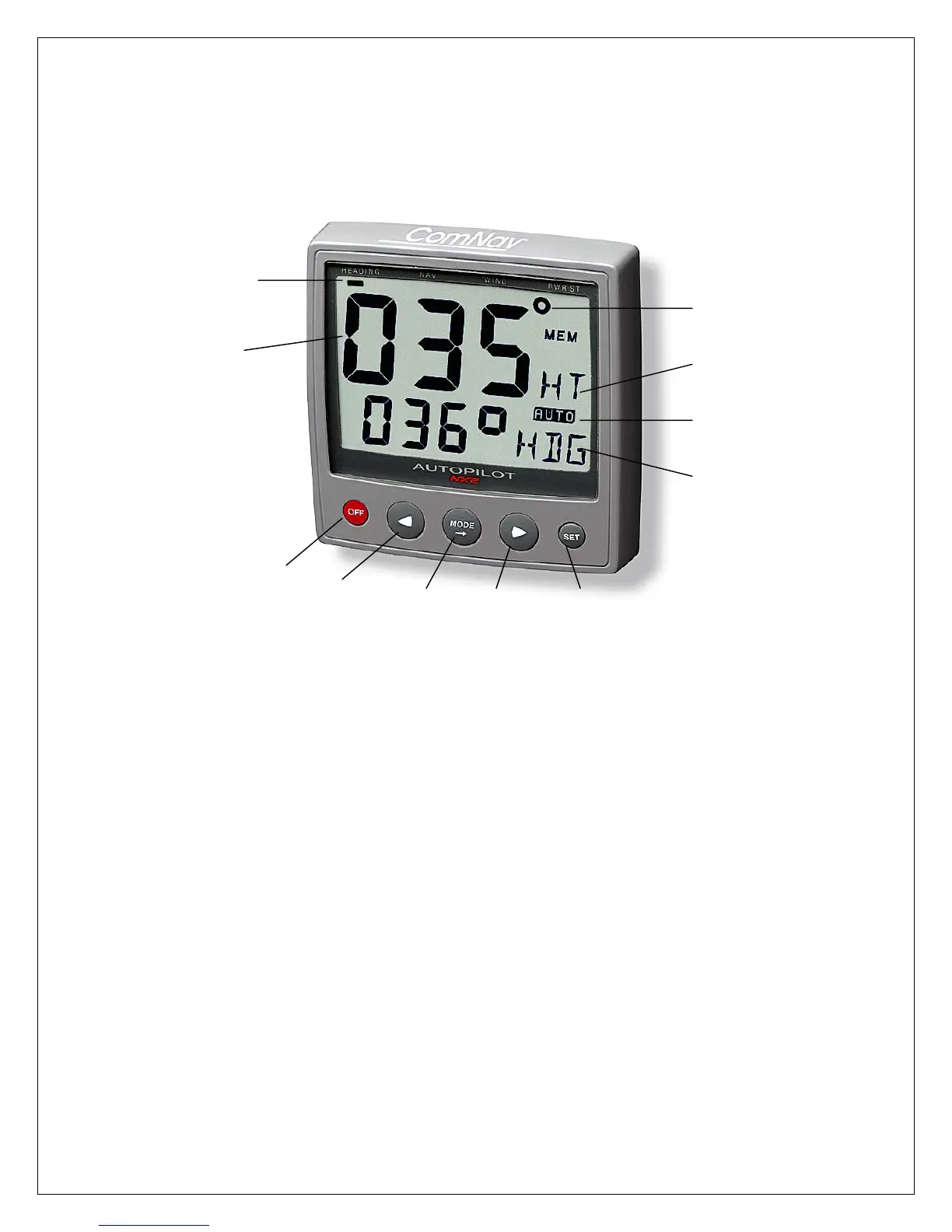

Top-Line Heading
Page Arrow
Reference
Course/Angle
Function
AUTO Mode On
Lower-Line
Function Text
OFF
LEFT MODE RIGHT SET
