ComNav 1500 / 1510 Autopilot - 28 -
4.2.7 Setup Mode

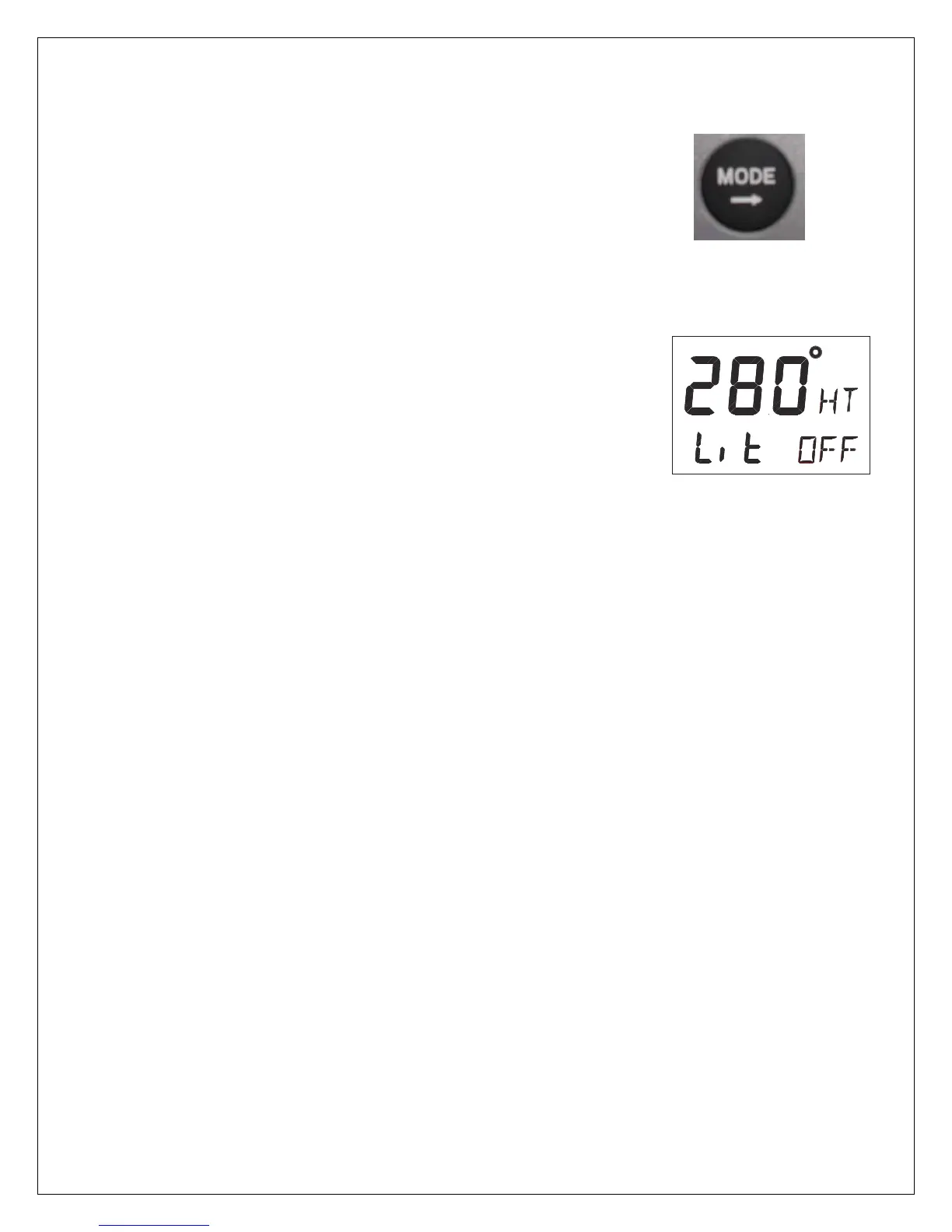

To access Setup Mode, press and hold MODE more than
2 seconds. [Lit OFF] flashes. To move to next setup group,
press MODE again.
To return to standby mode, press SET when the text return 2 seconds
[RET] is displayed.
4.2.8 Lighting
The instrument uses red back lighting for the display and the 4
push-buttons. The light can be set at 4 different levels.
To access the light control, press and hold MODE for more
than 2 seconds. The flashing text [Lit OFF] will be displayed
and the display will be lit momentarily.
To select between the 4 light levels [LOW], [MID], [MAX] and
[OFF], press RIGHT. To lock the selected level, press SET.
If the Autopilot is connected to an NX2 network, the selected
light level will be copied on to the Network. It is not possible
to reduce or turn off the lighting on an individual instrument.
