Battery Maintenance 5-7
1
2
3

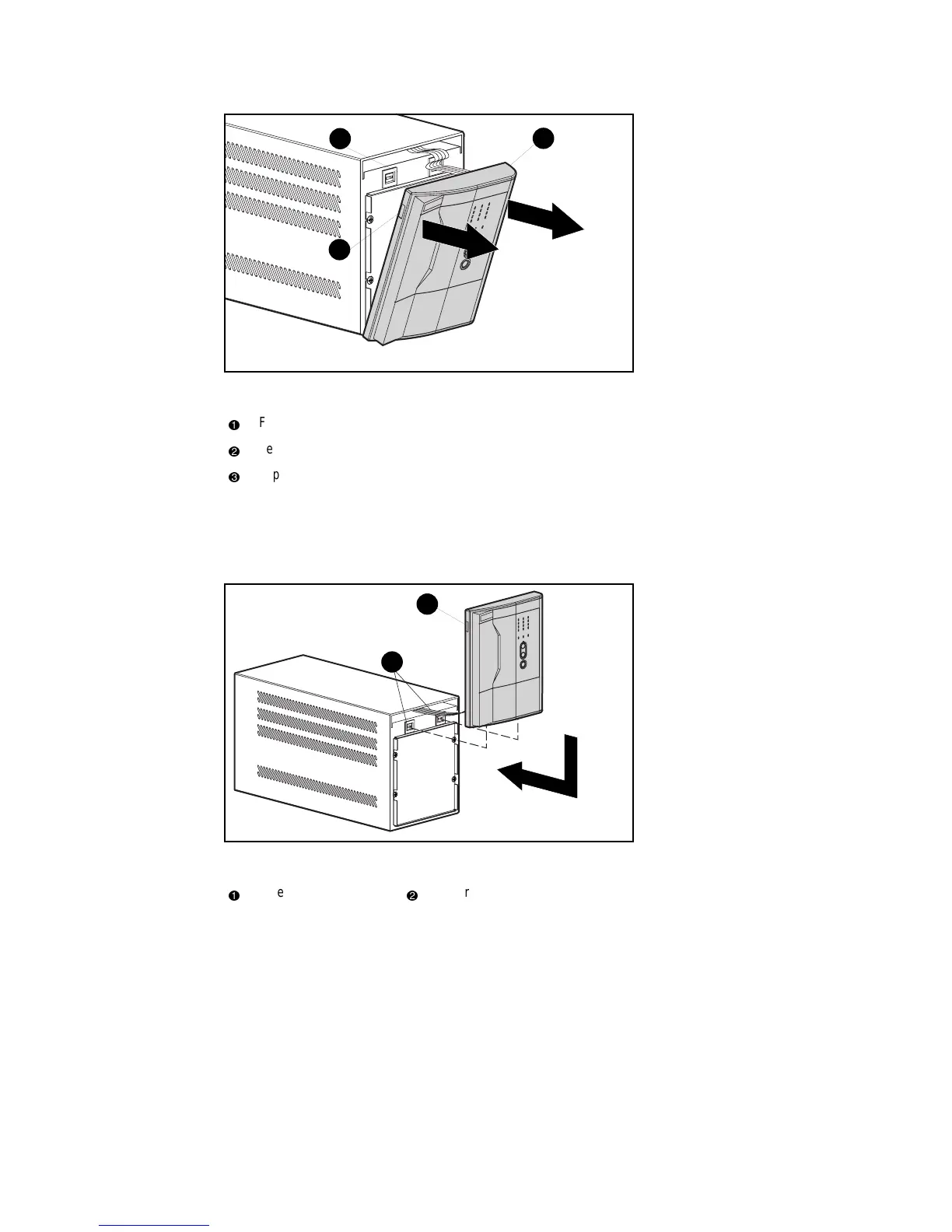

Figure 5-3. Detaching the faceplate
1
Faceplate
2
Recesses
3
Upper attachment slots
2.
Do not attempt to completely remove the faceplate. For battery
maintenance, temporarily reattach the faceplate to the UPS chassis by
inserting the lower mounting prongs in the upper attachment slots.
1
2
Figure 5-4. Reattaching the faceplate for battery maintenance
1
Faceplate
2
Upper attachment slots
3. Remove the four screws holding the metal battery compartment cover
plate, and lower the cover plate.
