5-8 Compaq 1000 Series UPS Operation and Reference Guide
2
1

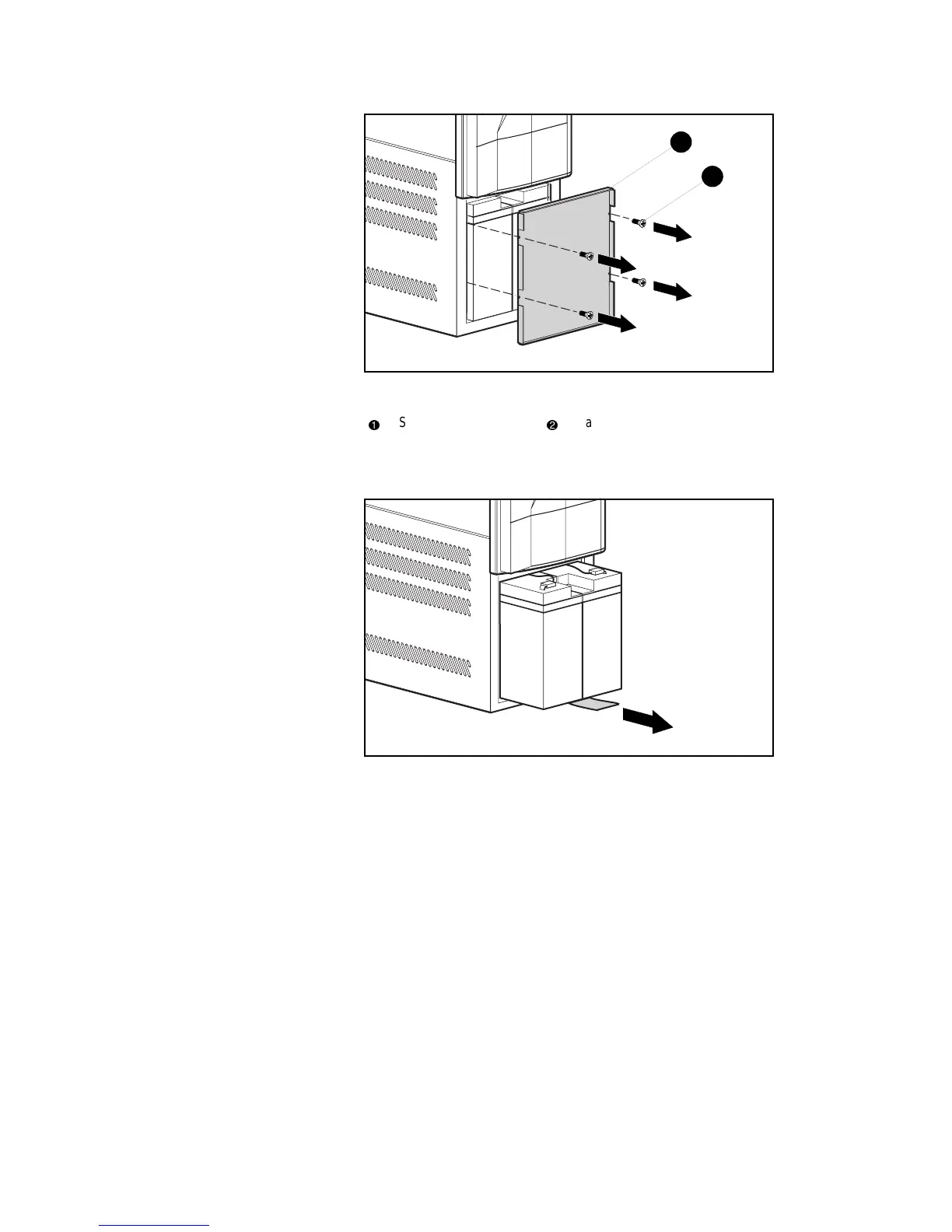

Figure 5-5. Lowering the battery compartment cover plate
1
Screws
2
Battery compartment cover plate
4.
Use the plastic tag attached to the battery to partially slide out the
battery pack. Access to the battery pack terminals is obtained.
Figure 5-6. Partially sliding out the battery pack using the tag
