5-10 Compaq 1000 Series UPS Operation and Reference Guide
Rack-Mountable Models
Follow this procedure to remove the battery pack:
1.
Detach the UPS front panel from its attachment slots.
1

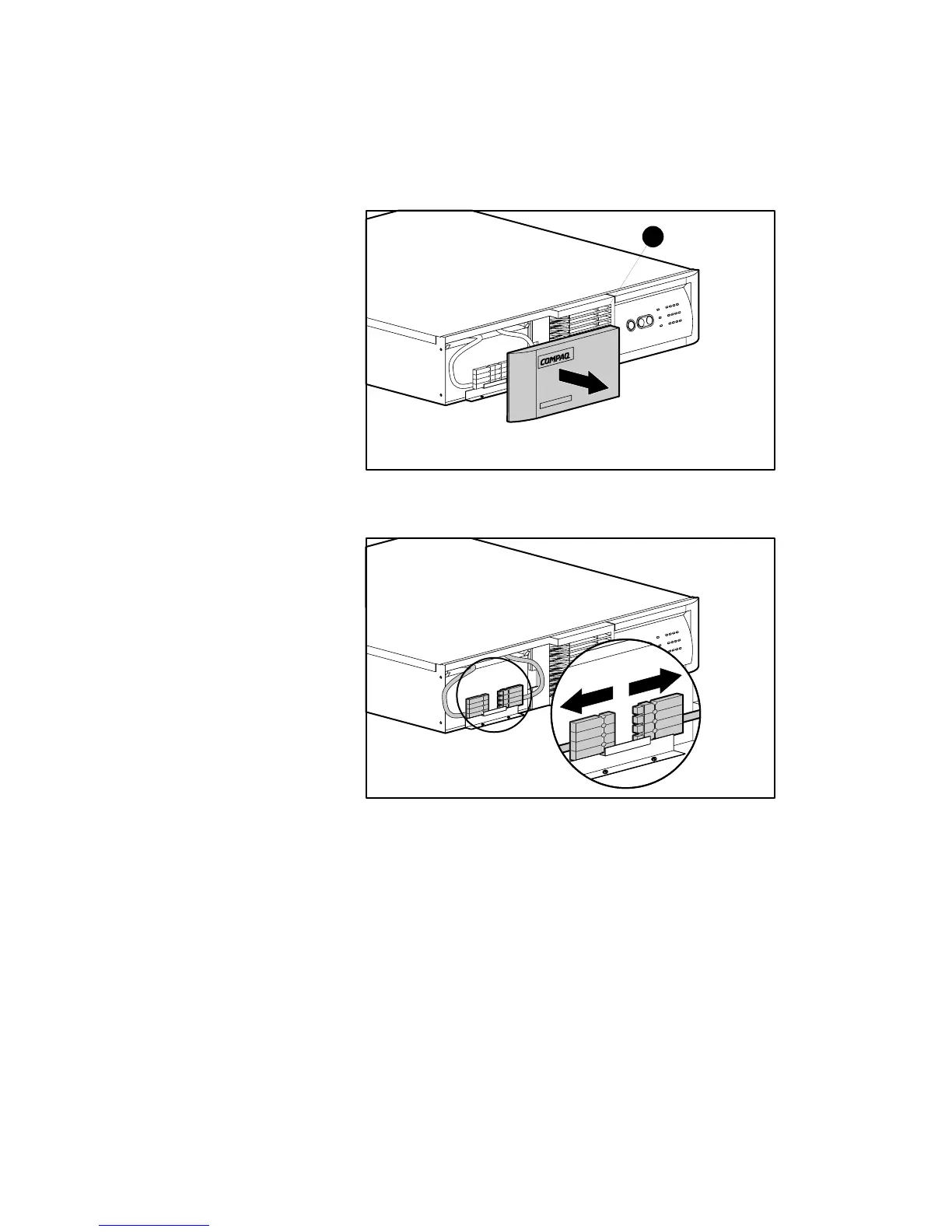

Figure 5-8. Detaching the UPS front panel
2.
Disconnect the battery connector.
Figure 5-9. Disconnecting the battery connector
