Compaq ProLiant 800 Server Reference Guide
Writer: Project: Compaq ProLiant 800 Features Comments:
File Name: C-ch1.doc Last Saved On: 4/23/97 11:09 AM

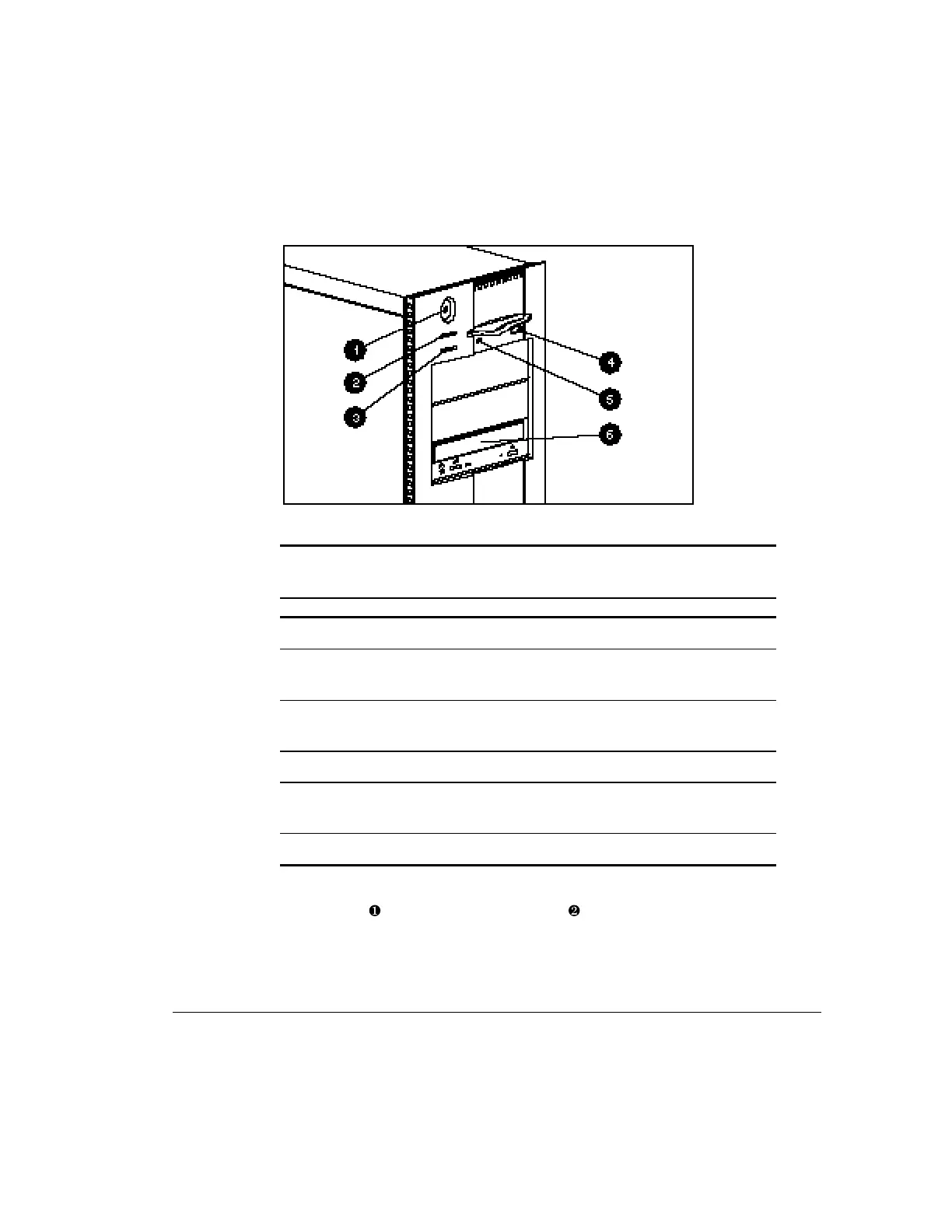

Figure 1-2. ProLiant 800 front panel components
Table 1-1
Front Panel Components
Reference Component Function
1 Power Switch Turns the server on and off.
2 Power-On Light Turns on when power to the server is turned
on and blinks (optional) in Energy Saver mode.
3 Hard Drive Activity
Light
Turns on when the hard drive is being
accessed.
4 Diskette Eject Button Ejects a loaded diskette.
5 Diskette Drive Activity
Light
Turns on when the diskette drive is being
accessed.
6 CD-ROM Drive Holds a CD-ROM disk.
The lights of the server provide information about its operation. When the
power switch
is turned on, the power light is green.
