IMPORTANT: When reinstalling the expansion backplane brace, fully seat the
backplane board attached to the cage into the system board socket to ensure
complete electrical contact.
Replacing the Expansion Backplane Brace
1. Grasp the expansion backplane brace at both ends and push it into the
server chassis. Use care when guiding the assembly into the unit to
prevent damaging the boards.

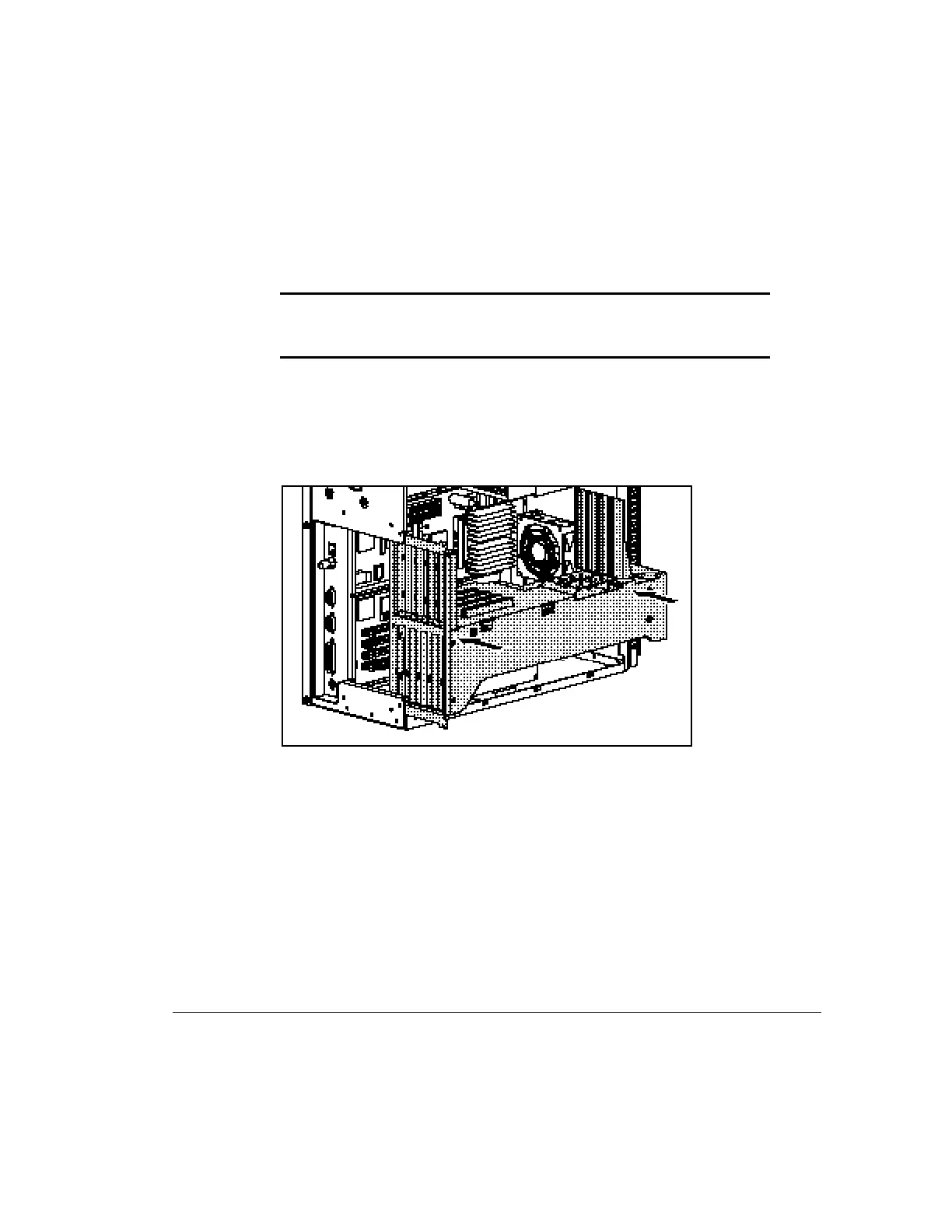

Figure 3-3. Replacing the expansion backplane brace
2. Replace the side access panel.
3. Reassemble the server.
4. Turn on the server.
