3-6 Installing Hardware Options
Writer: Project: Installing Hardware Options Comments:
File Name: E-ch3.doc Last Saved On: 4/23/97 11:22 AM
Removing an Expansion Slot Cover
To install a PCI or an ISA expansion board, complete the following steps:
1. Locate the correct vacant slot in the expansion board.
2. Remove the screw from the expansion slot cover, then remove the
expansion slot cover.

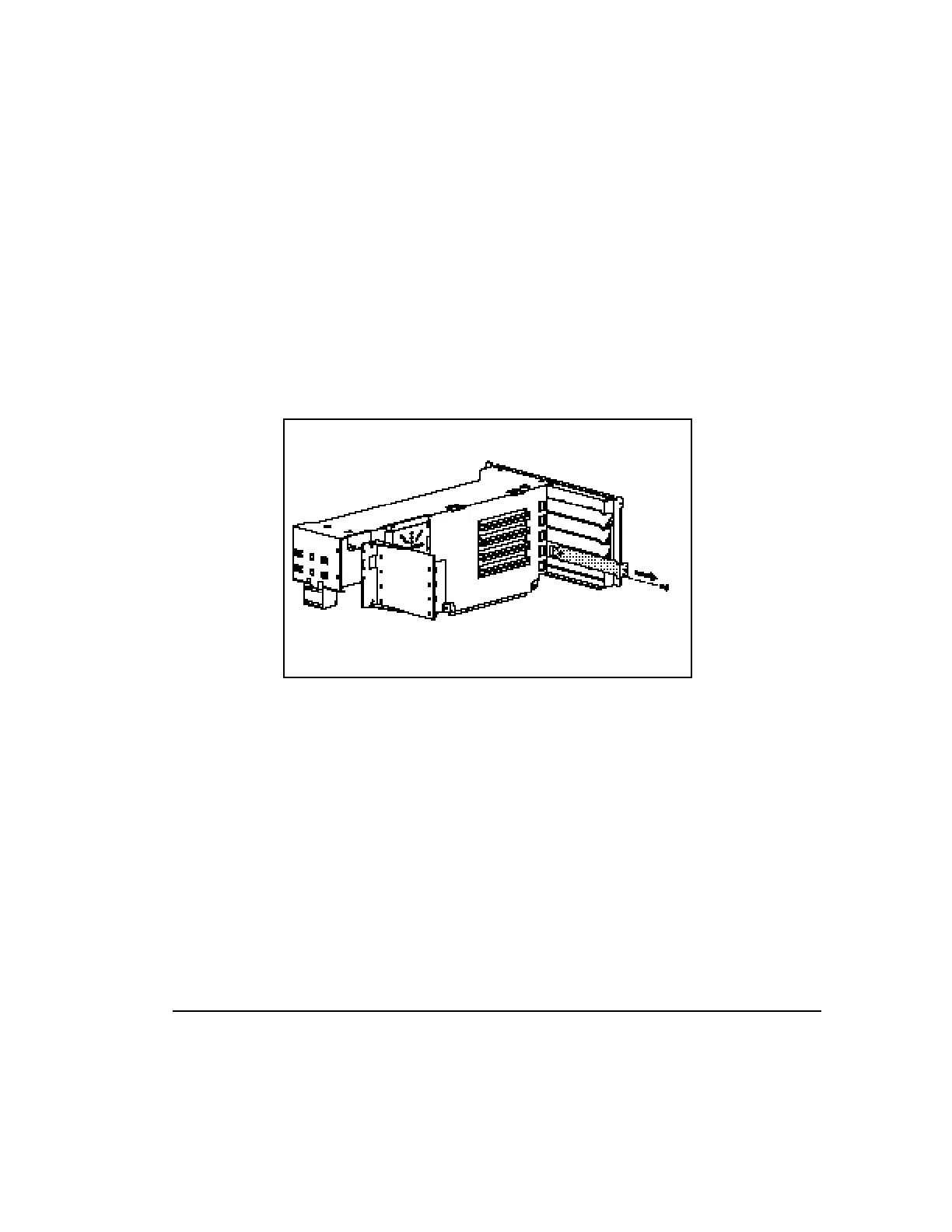

Figure 3-4. Removing the screw and expansion slot cover
Installing an Expansion Slot Cover
To install an expansion slot cover, follow these steps:
1. Slide the expansion slot cover into place over the slot opening.
2. Install the screw at the side of the expansion slot to secure the
slot cover.
