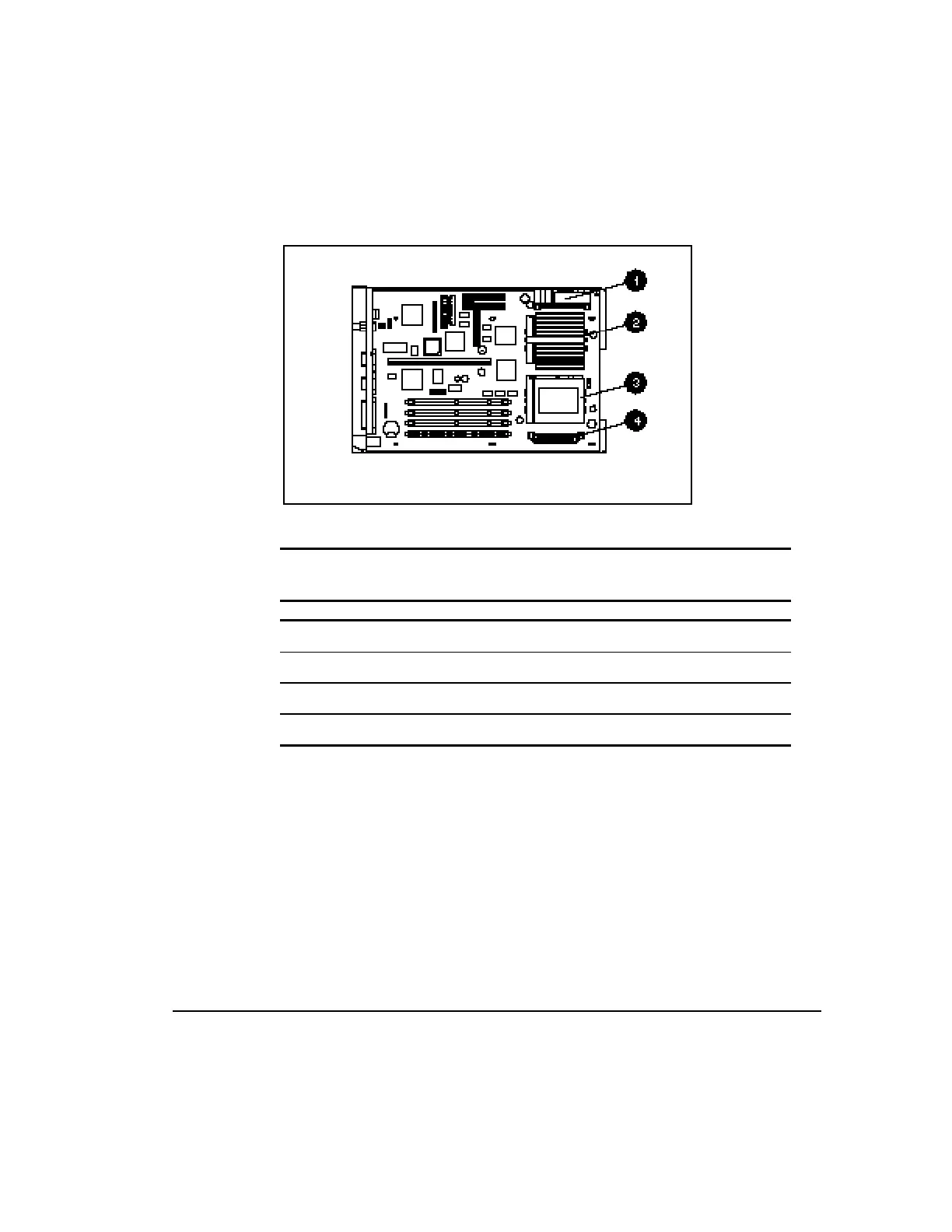

Figure 1-8. Processor Power modules on ProLiant 800 I/O board
Table 1-4
Processor/Power Module Locations
Location ID Description
1 Power module 1 (standard shipping configuration)
2 Processor 1 (standard shipping configuration)
3 Processor 2
4 Power module 2
Cache Memory and System Architecture
Full-speed 256-KB secondary (L2) cache is integrated into the Pentium Pro
processor.
