Backplane Board Battery Installation
CAUTION: Do not attempt to remove your old battery, as it is
permanently installed.
To install the new battery, complete the following steps:
1. If your server is on, turn it off.
2. Unplug the server and disconnect any external devices.
3. Remove the server cover. See the instructions in Appendix E,
"Installing the Server," for information on removing the cover.
Battery Placement on Backplane Board
1. Change the jumper at battery connect header E1 from the pin 1-2 to
pin 2-3.
NOTE: When the jumper is placed at header E1 / pins 1-2 on the riser board, the
internal battery is used. When the jumper is placed at header E1 / pins 2-3, the
external battery is used.

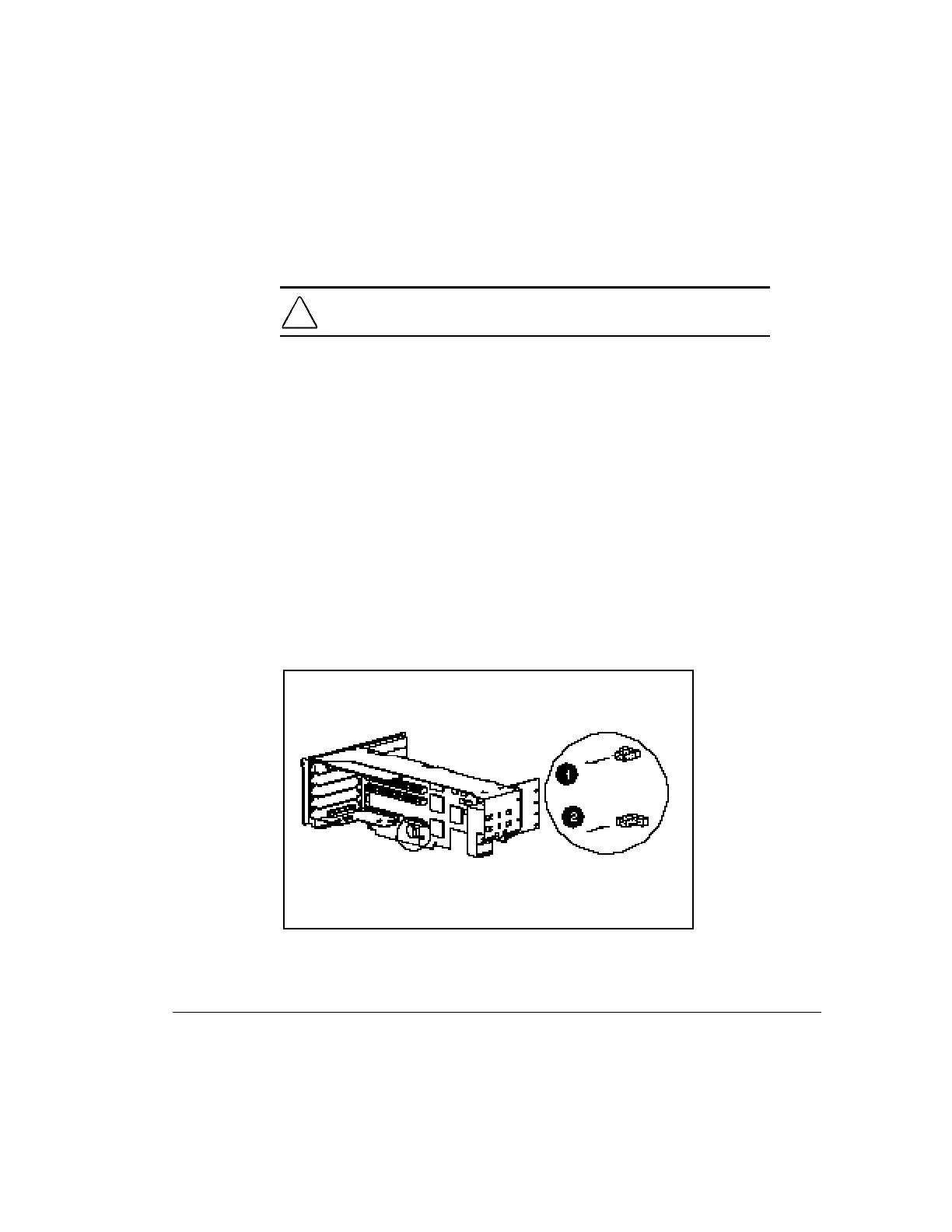

Figure A-3. Connecting the battery on the backplane board
