A-7
Compaq ProLiant 800 Server Reference Guide
Writer: Project: Installing a New Battery Comments:
File Name: K-appa.doc Last Saved On: 4/24/97 10:45 AM
2. Plug the battery connector onto header E4 of the backplane board.
3. Remove the backing from the adhesive on the hook-and-loop fastener
strip. Place the battery and the hook-and-loop fastener strip as shown in
the following illustration.

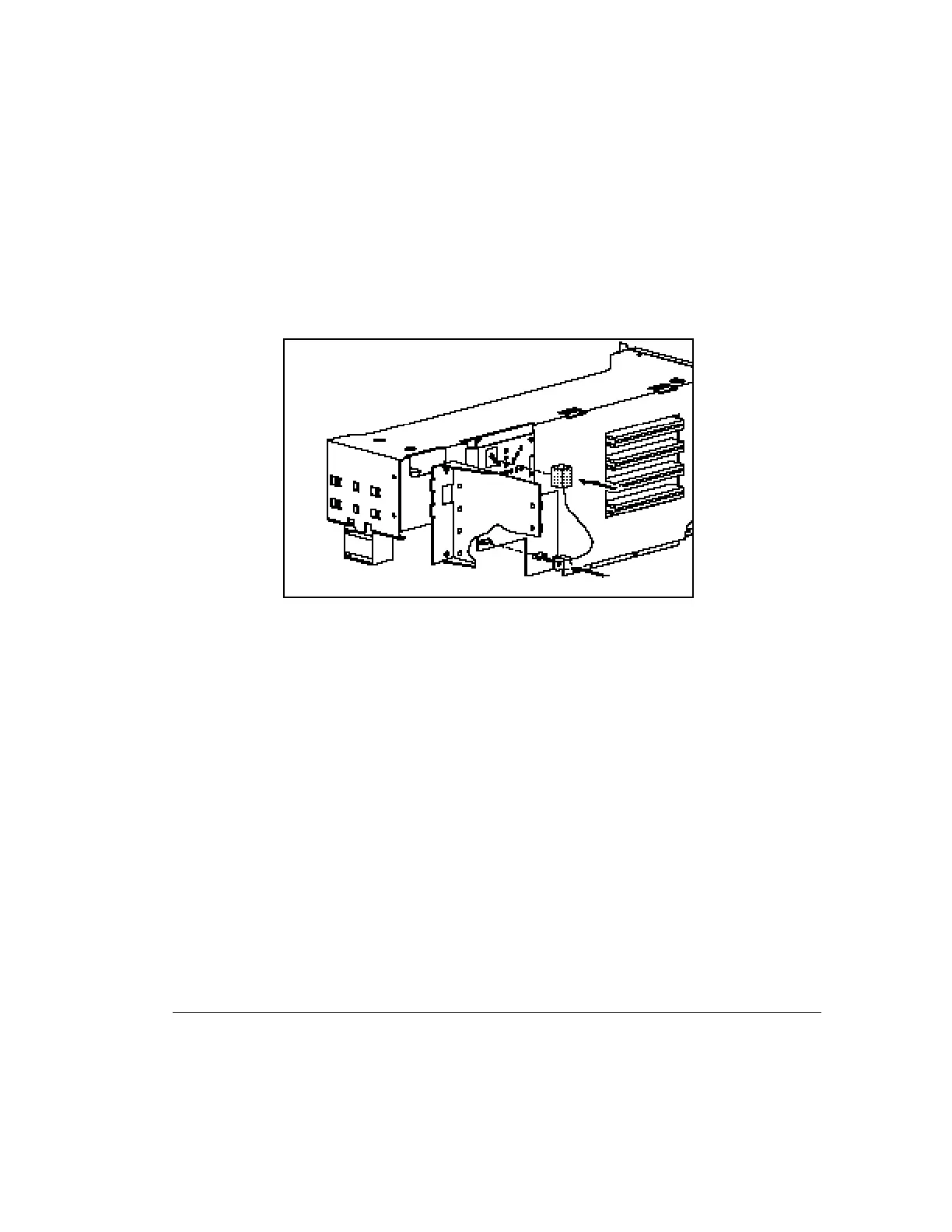

Figure A-4. Installing the battery
4. Replace the side access panel.
5. Place the sticker included with your battery kit on the back of your
server above the power connector.
6. Plug in the server and reconnect any external devices.
