Compaq ProLiant 800 Server Reference Guide
Writer: Project: Compaq ProLiant 800 Features Comments:
File Name: C-ch1.doc Last Saved On: 4/23/97 11:09 AM
!
WARNING: This equipment is designed for connection to a grounded
(earthed) outlet. The grounding type plug is an important safety feature. To
avoid the risk of electrical shock or damage to your equipment, do not
disable this feature

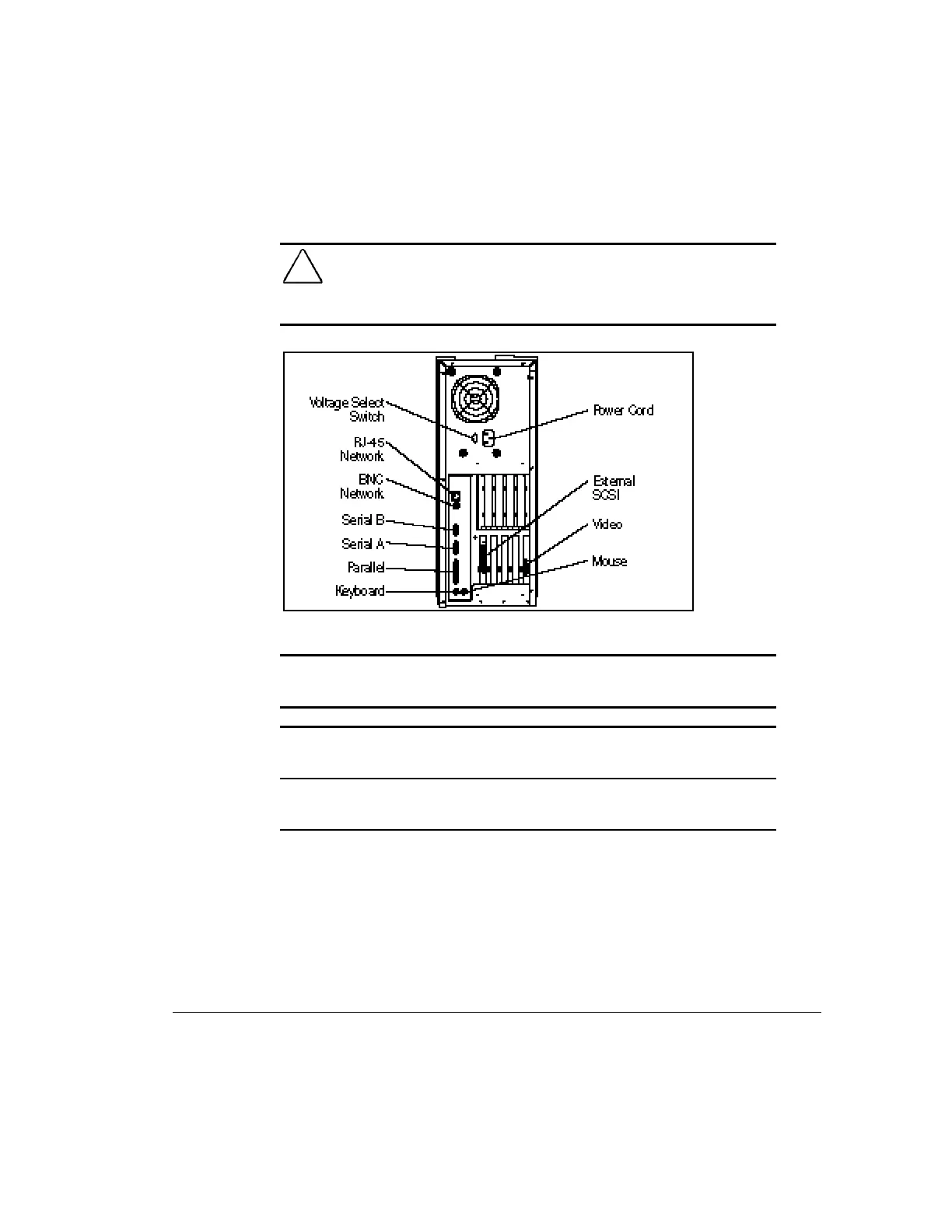

Figure 1-6. ProLiant 800 rear panel connectors and switches
Table 1-2
Rear Panel Connectors
Connector Function
Voltage Select Switch Switches voltage between 115V (U.S.) and 230V
to match geographical requirements.
Ethernet RJ-45 Connector Connects the Ethernet network, using an RJ-45
cable. Supports 10BaseT and 100TX.
continued
