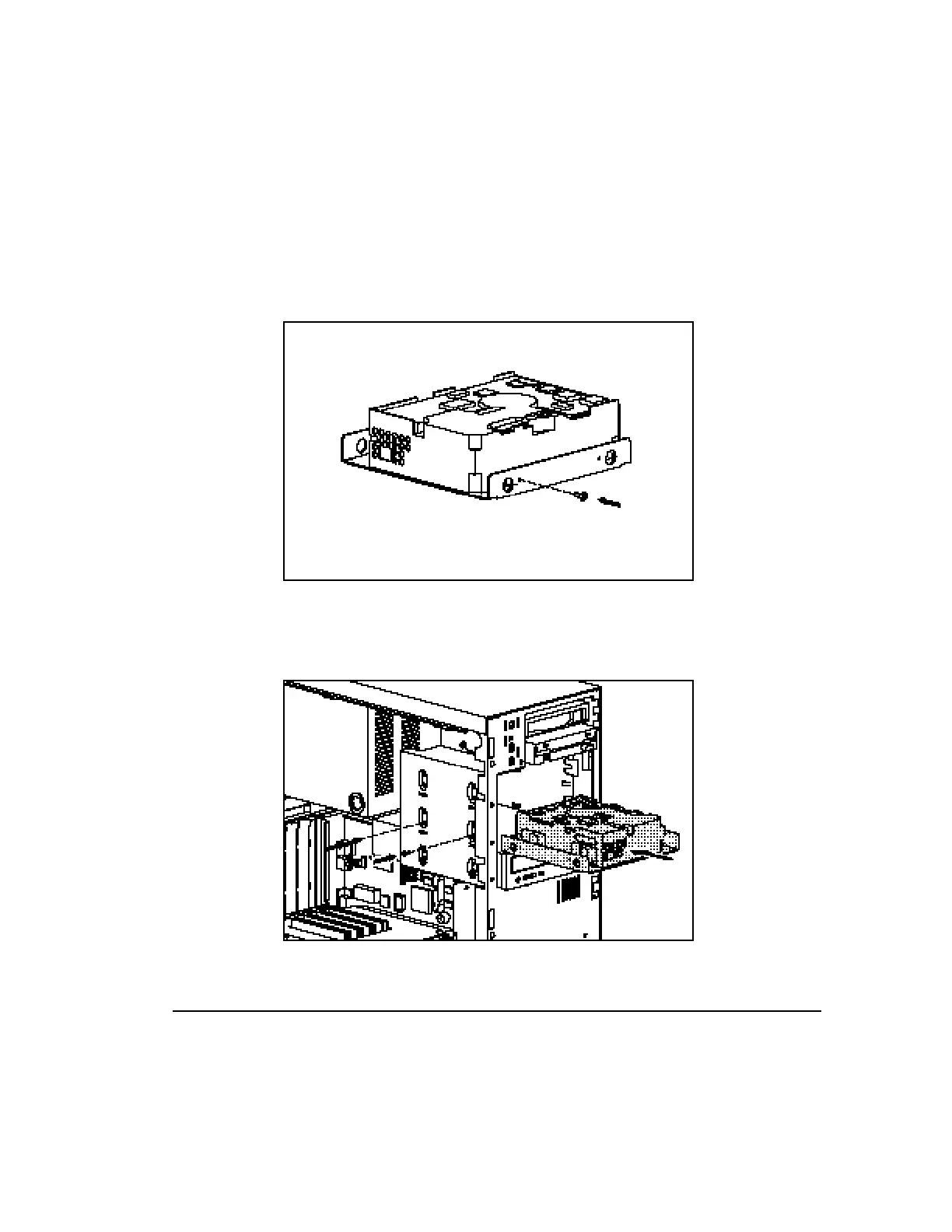

4. Install the guide screw in the front screw hole on the right side of the
bracket.
Figure 3-21. Installing the guide screw in the drive bracket
5. Install the bracket and drive into the drive bay. Secure the bracket with
two screws through the side of the drive cage. Be sure the guide screw
lines up with the guide slot in the drive cage.
Figure 3-22. Installing the drive into the chassis
