3-31
Compaq ProLiant 800 Server Reference Guide
Writer: Project: Installing Hardware Options Comments:
File Name: E-ch3.doc Last Saved On: 4/23/97 11:22 AM
6. Rotate the switch cover assembly 180 degrees.
7. Insert the switch into the front bezel as shown below. Make sure that
you include the spring, the clips on the switch engage, and the center
post of the switch cover aligns with the hole in the bezel.

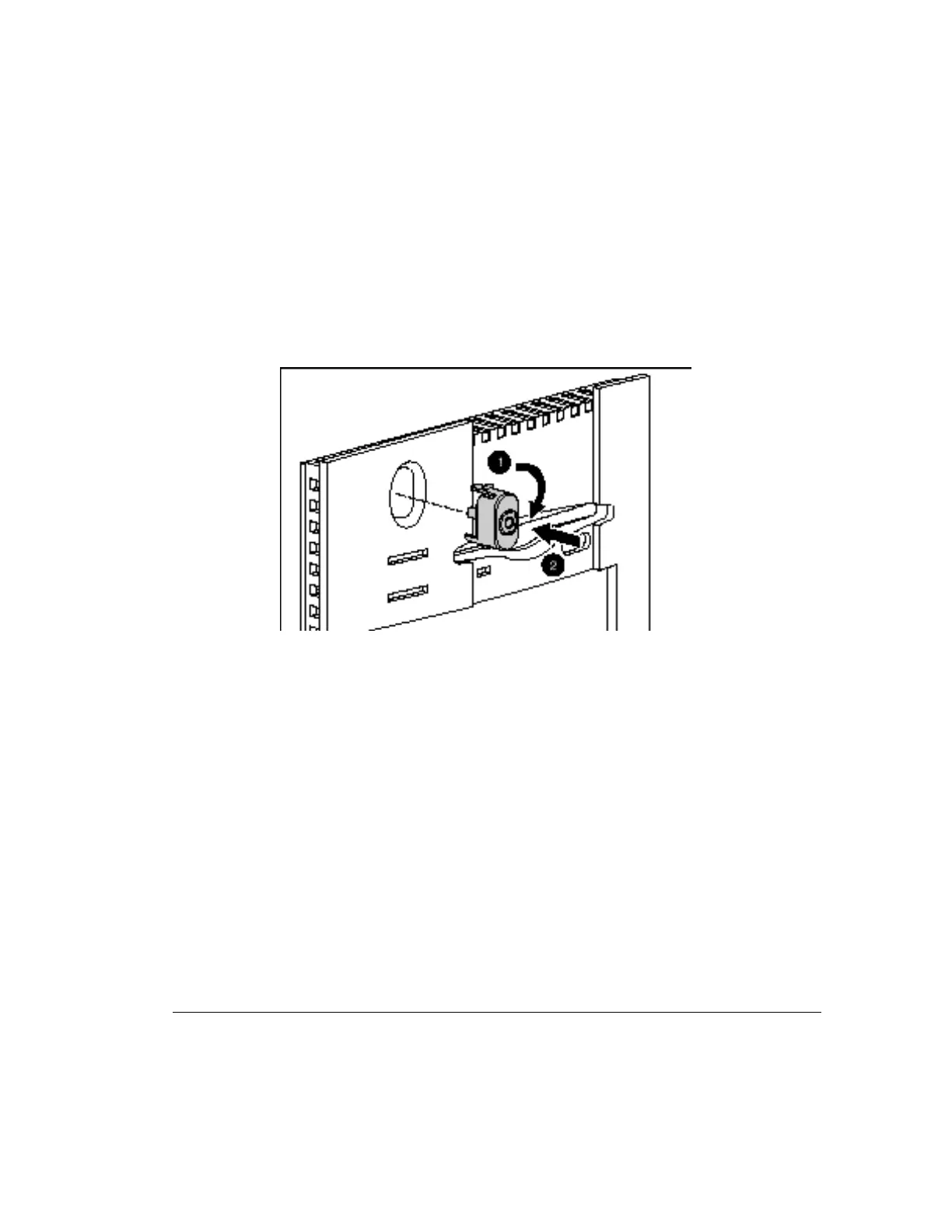

Figure 3-25. Inserting the power switch into the front bezel
8. Replace the front bezel.
9. Replace the Side Access Panel.
