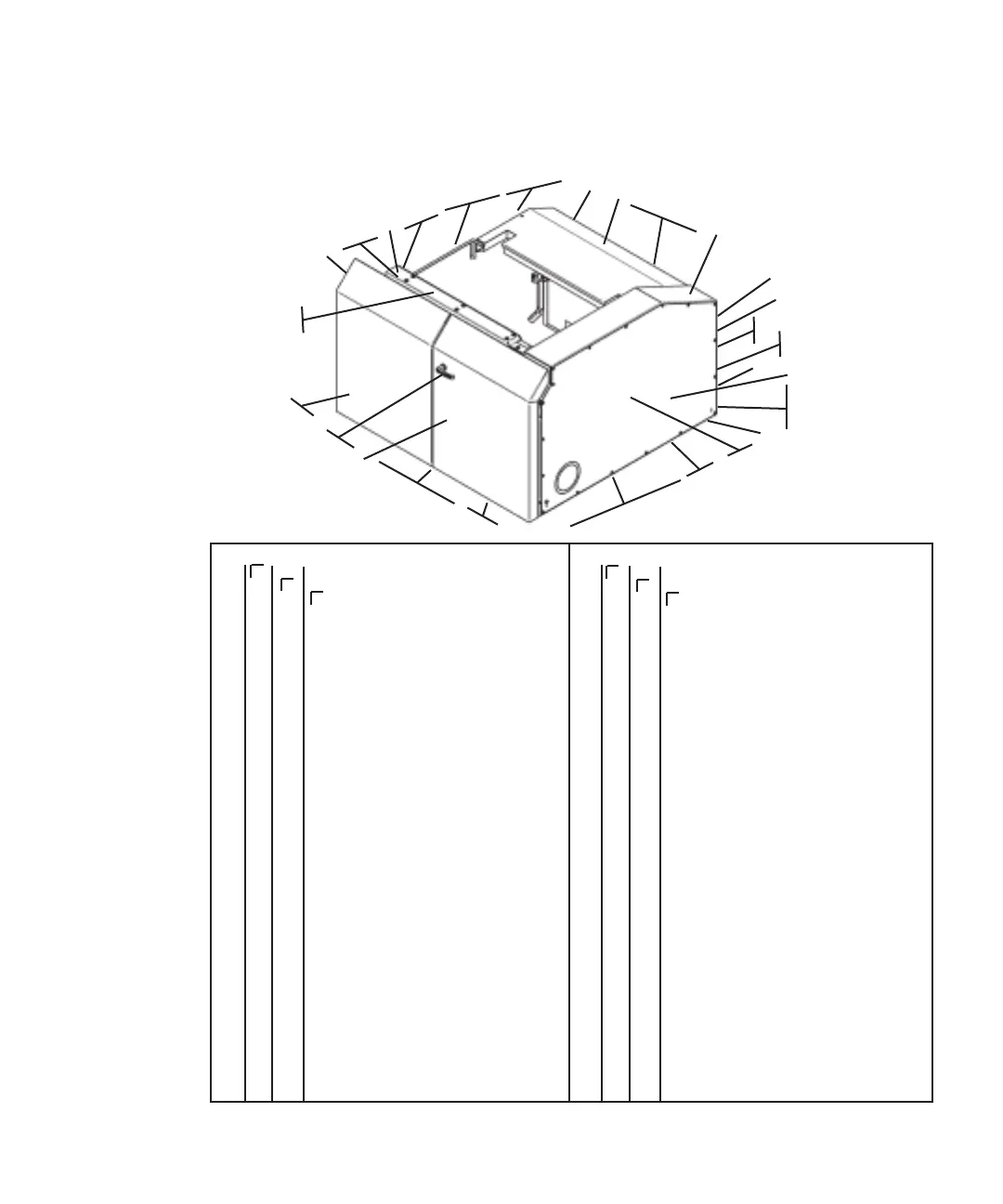

8.15 Enclosure
Pos Qty. Art. no. Description
3-45025 1824 Enclosure
3-45043 1836 Enclosure
3-45059 1848 Enclosure
11 11 2-45361 Cover, right
21 11 3-45569 Cover, right upper
31 11 3-45364 Enclosure, cover right
41 - - 1-45622 Door, left
-1- 1-45366 – ” –
--1 1-45387 – ” –
51 11 1-45369 Door, right
61 - - 1-45625 Cover, back middle
-1- 1-45377 – ” –
--1 1-45383 – ” –
71 - - 2-45627 Cover, back lower
-1- 2-45548 – ” –
--1 2-45666 – ” –
81 - - 2-45628 Back plate, door left
-1- 2-45367 – ” –
--1 2-45386 – ” –
91 11 2-45370 Back plate, door right
10 1-- 1-45795 Bottom plate
-1- 1-45372 – ” –
--1 1-45384 – ” –
11 222 3-45378 Bracket, cover back middle
12 444 3-45547 Bracket, cover back lower
13 1-- 3-45975 Distance, front hopper
-1- 3-45529 – ” –
--1 3-45656 – ” –
14 1-- 3-45977 Distance, middle hopper
-1- 3-45530 – ” –
--1 3-45659 – ” –
15 1-- 3-45978 Distance, back hopper
-1- 3-45371 – ” –
--1 3-45385 – ” –
16 111 4-45687 Distance, L=104 cover
17 111 4-45339 Distance, D=20/10x104 cover
18 111 3-45341 Distance, lock door
19 222 3-45389 Distance, hinge door
20 111 3-45373 Holder, list front left
21 111 3-45374 Holder, list front right
Pos Qty. Art. no. Description
3-45025 1824 Enclosure
3-45043 1836 Enclosure
3-45059 1848 Enclosure
22 111 3-45375 Holder, list back left
23 111 3-45376 Holder, list back right
24 111 3-45510 Holder, list back lower left
25 111 3-45511 Holder, list back lower right
26 222 3-45471 Absorbent 80, Enclosure
27 121 3-45509 Absorbent, door
28 1-- 3-45629 Absorbent, door, left
--1 3-45668 – ” –
29 1-- 3-45631 Absorbent, cover back middle
-1- 3-45563 – ” –
--1 3-45670 – ” –
30 1-- 3-45630 Absorbent, cover back lower
-1- 3-45564 – ” –
--1 3-45669 – ” –
31 111 3-45633 Absorbent, distance, hopper
32 111 950689 Lock, door
33 444 950585 Hinge 100*75*8
34 111 970156 List 427010
35 33 34 33 940885 Screw SHS
36 666 940070 Screw M8
37 111 940729 Screw M8
38 424 940196 Screw SHS
39 444 940791 Screw SHS
40 779 940801 Screw M6
41 111 940126 Screw M8
42 14 17 14 940444 Screw M8
43 666 940806 Screw M8
44 42 44 48 940750 Screw 4,2
45 555 940077 Screw M6
46 14 14 14 940552 Screw M6
47 888 940955 Screw SHS
48 40 40 40 940623 Pop-rivet
49 444 940016 Nut M8
50 333 950550 Nut blind rivet M6
51 26 26 26 950551 Nut blind rivet M8
52 222 940027 Nut M6
53 779 940860 Washer, body
