Specifications

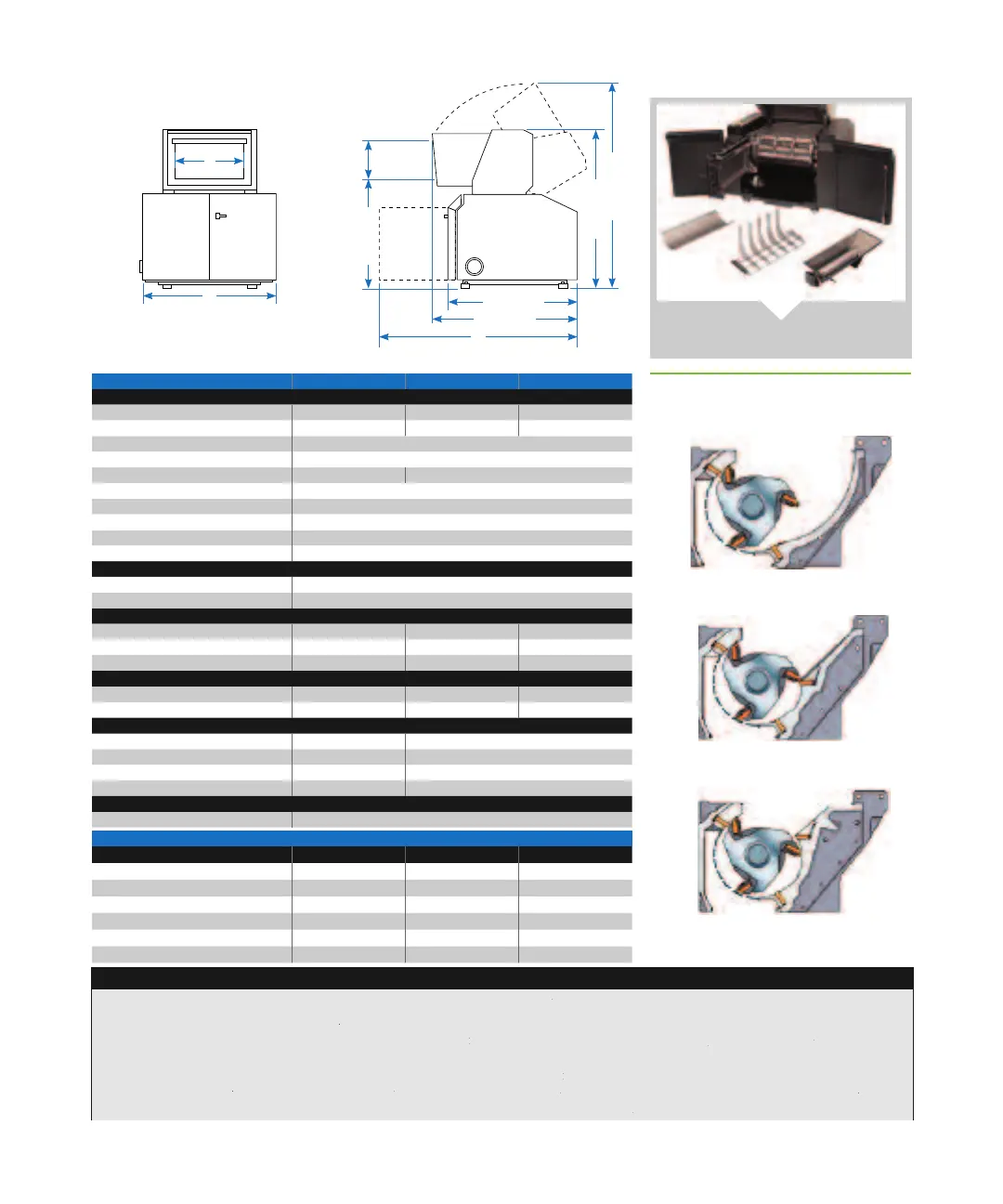

18 Series Cutter Housing Configurations
(shown with optional bed knife positions)
B
C
74.80 {1900}
66.92 {1700}
80.31 {2040}
55.11 {1400}
17.72
{450}
103.94 {2640}
A
Models 1824 1836 1848
P
erformance characteristics
Throughput* lb/hr {kg/hr} 1350 {612} 2000 {907} 2800 {1270}
Cutter chamber opening inches {mm} 18 x 24 {450 x 600} 18 x 36 {450 x 900} 18 x 48 {450 x 1200}
Cutting circle inches {mm} 17.7 {450}
Rotor speed rpm 513
Standard motor power Hp {kW}
†
25 {19} 40 {30}
Drive type Belt drive
Hopper type Front hand feed
Evacuation discharge Side
Screen hole sizes inches {mm} 1/4, 5/16, 3/8, 1/2, 5/8, 1 {6, 8, 10, 12, 17, 25}
Rotor type Herringbone 3-blade open (optional 5-blade open)
Knives
Number of rotating knives 6 (optional 10)
Number of rotating knives 2 (optional 3-4)
Dimensions inches {mm}
A - Width of feed hopper opening 23.62 {600} 35.43 {900} 47.24 {1200}
B - Width 56.69 {1440} 68.50 {1740} 80.31 {2040}
C - Overall depth with door open 98.42 {2500} 102.36 {2600} 114.17 {2900}
Approximate weight lb {kg}
Installed 5400 {2450} 6500 {2950} 8100 {3675}
Shipping 5900 {2675} 7000 {3175} 8750 {3970}
Voltages Full load amps based on standard motor
‡ §
208V/3 phase/60 Hz 69 118
230V/3 phase/60 Hz 62 106
460V/3 phase/60 Hz 31 53
575V/3 phase/60 Hz 25 43
Noise level
**
With full sound enclosure 85 dbA
Motor Options
z= standard |= optional
1824 1836 1848
25 Hp {19 kW}
z
N/A N/A
40 Hp {30 kW}
|zz
50 Hp {37 kW}
|||
60 Hp {45 kW}
|||
75 Hp {56 kW} N/A
||
100 Hp {75 kW} N/A
||
Specification Notes
* Throughput is based on a 1/2 inch {12.7 mm} screen. Throughput rates are provided
as a capacity guideline only. Throughput will vary according to the selected screen
size, the shape, thickness and properties of the material to be cut. Consult Conair for
a material test or help determining the correct granulator model for your application.
†
The chart lists standard motor selections. Additional motor sizes are listed under
motor options.
‡
Refer to the motor nameplate for exact FLA and motor specifications.
§
FLA data for reference purposes only. Does not include any accessories added such
as blower or conveyor motor loads. Includes main 3Hp motor only.
For true, full FLA for power circuit design of specific machine refer to electrical
diagram of the machine order or nameplate applied to machine at shipment.
** Noise level will vary according to material type being processed and the granulator
configuration. These ranges are based on tests using SPI standards.
Specifications may change without notice. Consult with a Conair representative for
the most current information.
18 Series swing-open screen cradle and granule
catch bin.
Super Tangential
Tangential
Pre-Cut
Front view
Side view
