Conair 1836 - Installing of knives; Pre-setting of knives

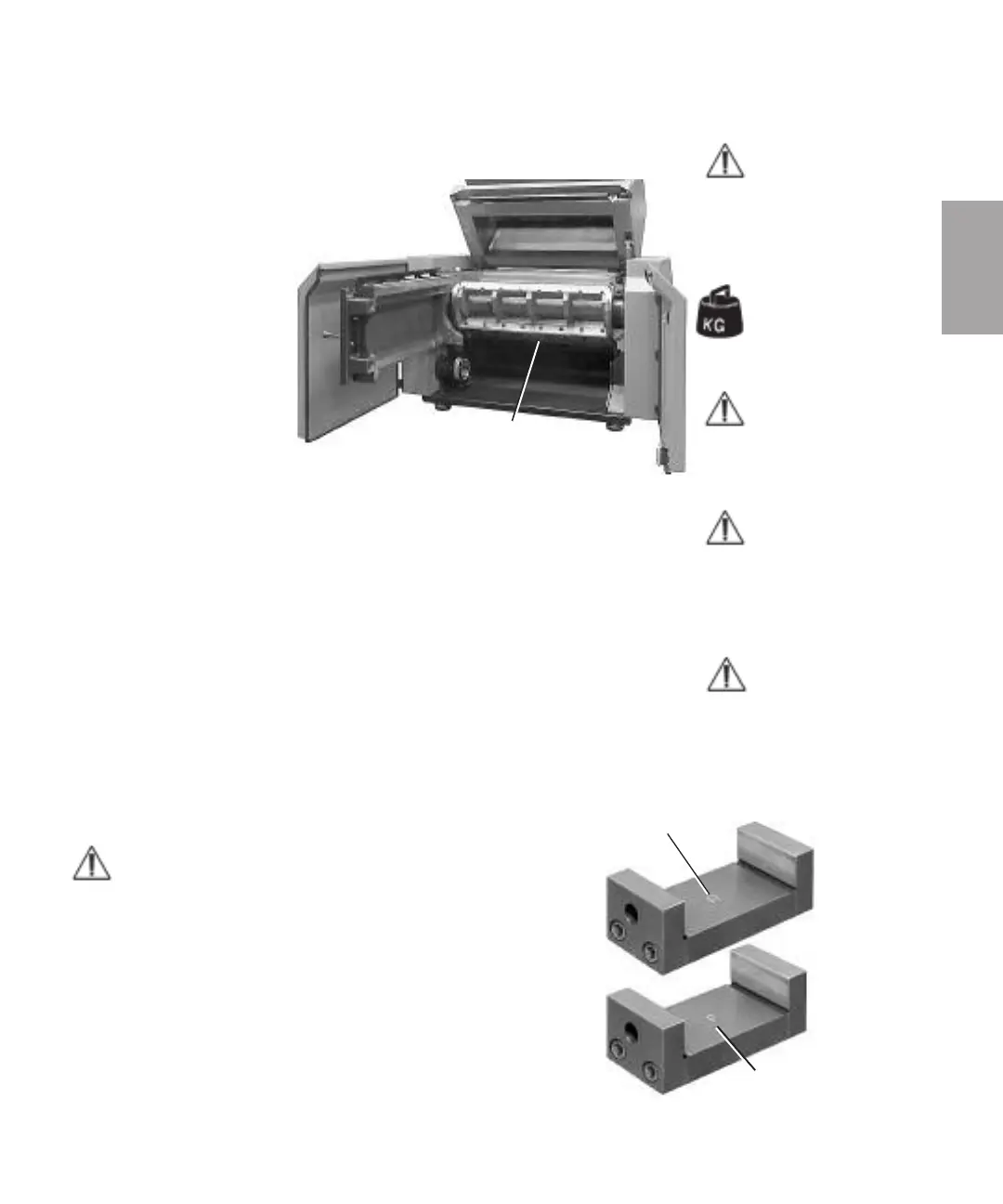

Fixed knife no. 5 (lower, option)
1 Undo and remove the socket cap screws which fasten the support rules and the
fixed knife pair (hex 17 mm).
The socket cap screws which fasten the support
rules and the fixed knife pair, are undone from
underneath the front side of
the cutter housing.
2 Mark and lift out the
support rules to the fixed
knife pair.
3 Mark and lift out the fixed
knife pair.
4 Clean the knife positions where the knives were located.
Installing of knives
The knife attachments for both fixed and rotating knives must have been properly
cleaned.
The screws which retain the knives are of high strength class.
Only screws supplied by Conair may be used for installing knives.
It is very important that the knives are torqued to correct tightening torque.
To install the fixed and rotating knives a strong torque wrench is needed.
The knives tightening torque
Front and rear fixed knife . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 600 Nm
Rotating knives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 600 Nm
Pre-setting of knives
NOTE: The knives must be sharpened before pre-setting.
Pre-setting fixture
In the delivery of the 18 Series granulators, are two pre-setting fixtures
of the compact model included. One pre-setting fixture to rotating
knives and one fixture to fixed knives. Furthermore one 8 mm hex
wrench and a 0.20 mm feeler gauge are included, for pre-setting of all
knives in the granulator. The pre-setting fixtures makes the knife
installation simpler and quicker. The pre-setting fixtures are calibrated
against the fixed set positions in the granulator. The fixtures makes it
simply and quick to pre-set the knives to a 0.20 - 0.50 mm
knife clearance.
Fixed knife no. 5 (lower)
NOTE: Hold both the
support rule and the
fixed knife, when the
last screw for the sup-
port rule is undone and
removed.
NOTE: The fixed knife
and the support rules
are heavy, be careful!
NOTE: All knives which
are to be installed should
be pre-set before
installing. Both fixed and
rotating knives!
NOTE: Each time the set
of knives is changed, the
screws and washers
which fasten the knives
must be replaced by new
ones.
NOTE: Every second time
re-sharpened knives are
installed, the screws and
washers which fasten
the knives must be
replaced by new ones.
The pre-setting fixture of compact model
for rotating knives is marked ”R”
The pre-setting fixture of compact
model for fixed knives is marked ”F”
7.1 Knife changing (continued)
7
Service
Ser vice l 7-9
